Raimondi Power Raizor Cutting unit - TCPWRV2BU

Raimondi POWER RAIZOR MkII – Multi-Angle Cutting Unit for 45°/90° and Intermediate Cuts - TCPWRV2BU

Includes: Power Raizor Cutting Unit, Daimond Blade only (Angle grinder not included.)

Precision cutting made easy – adaptable, stable, and compatible.

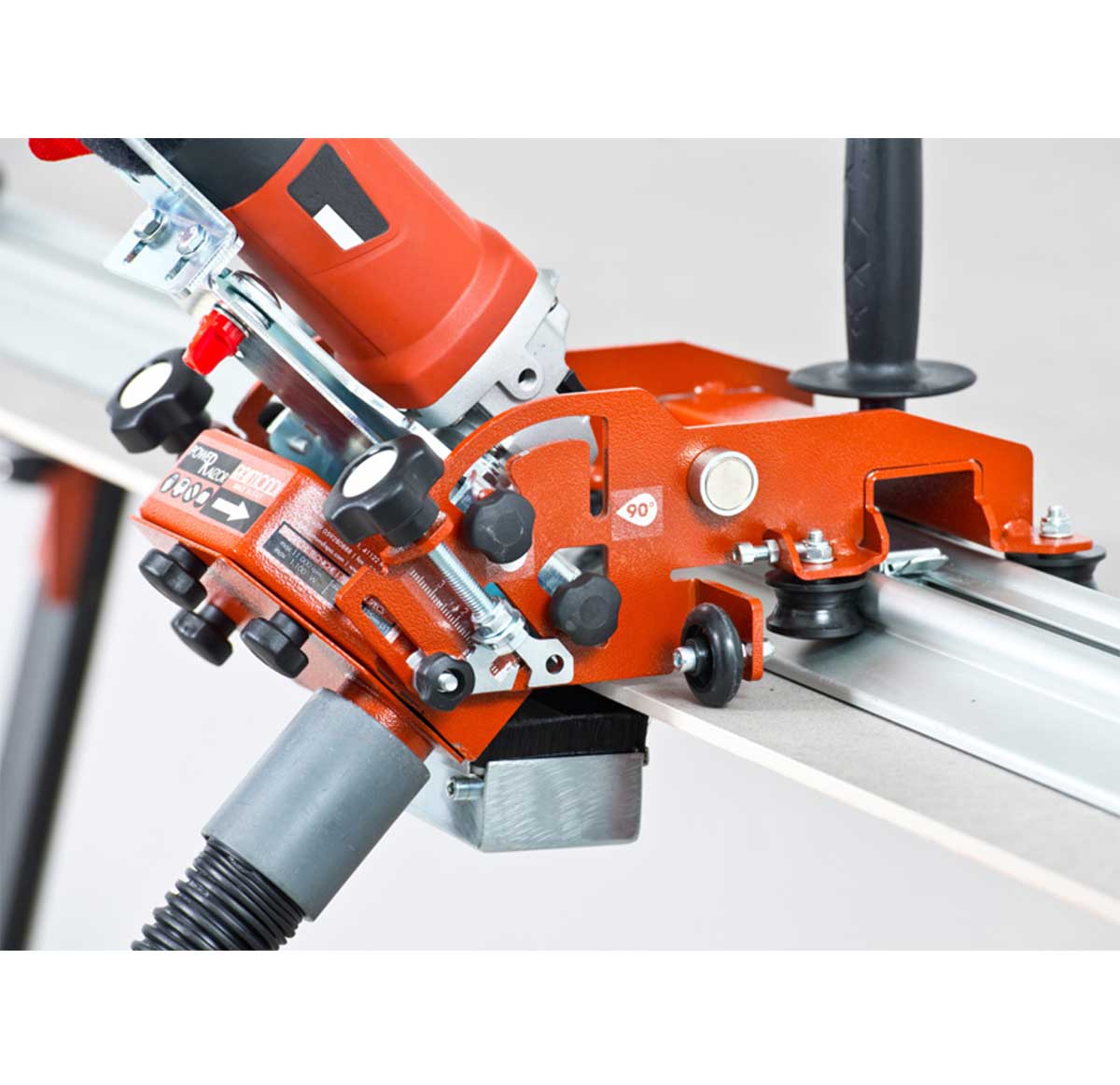

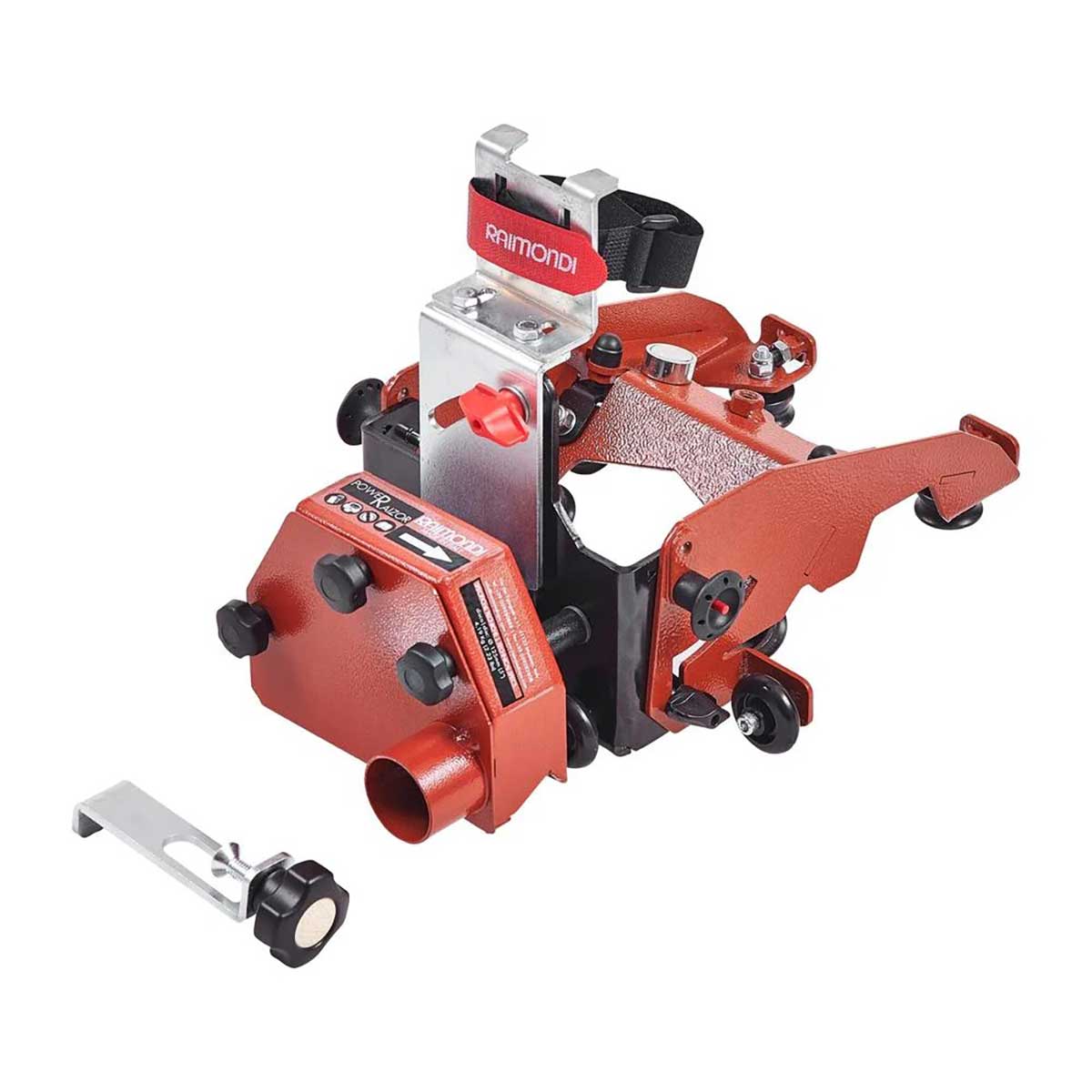

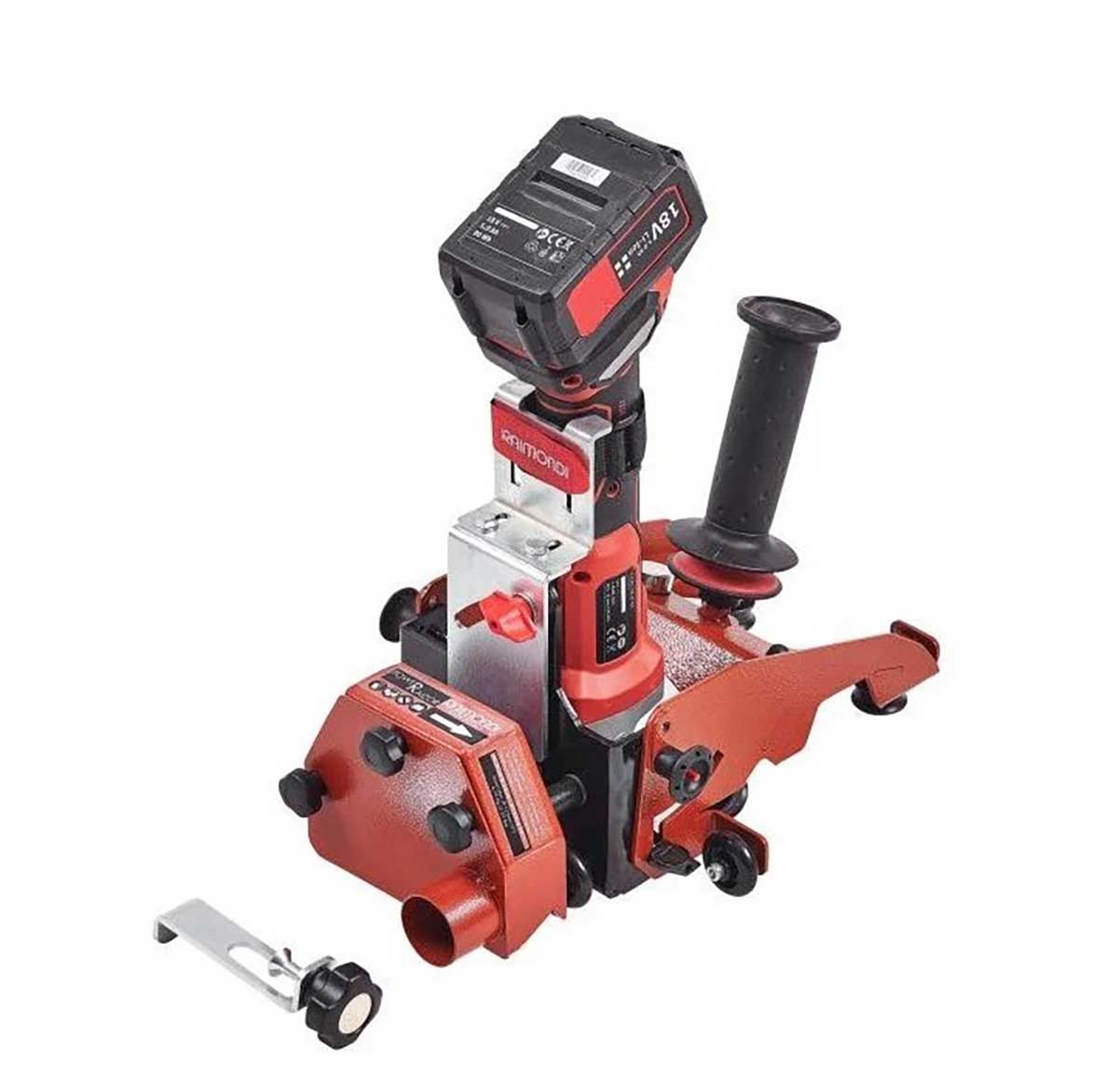

The POWER RAIZOR MkII is a versatile multi-angle cutting unit designed for use exclusively with the RAIZOR MkII rail cutter. Ideal for professionals seeking precise tile cutting, it enables straight cuts (90°), miter cuts (effective 47°), and all intermediate angles in between.

ANGLES - Perform 90° straight cuts or 45° angle "miter cut" (the actual angle is 47°)

USE WITH RAIZOR Only to be used with Raizor Mk2 (TC10RAIZMK2)

CUTTING - Cutting thickness allows for 20mm at the 90° angle, and 16mm at the 45° angle.

Futures

• Multi-angle cutting unit.
• Use with the Raizor Mkll rail cutter.
• This device is not compatible with original Raizor rail.
• Cuts 90° and 45° angles.
• Plunge cut adjusts the cut depth to perform square and rectangular holes.
• Available in version of grinder with M14 metric arbor and version of 5/8" - 11 imperial arbor.
• Can be used dry or wet. Equipped with connecting part for dust extractor.
• Cutting depth allowed: 20mm (for 90°), 16mm (for 45° angle)

Futures

• Multi-Angle Cutting: Effortlessly performs straight (90°), miter (45°, actual angle 47°), and variable intermediate cuts.

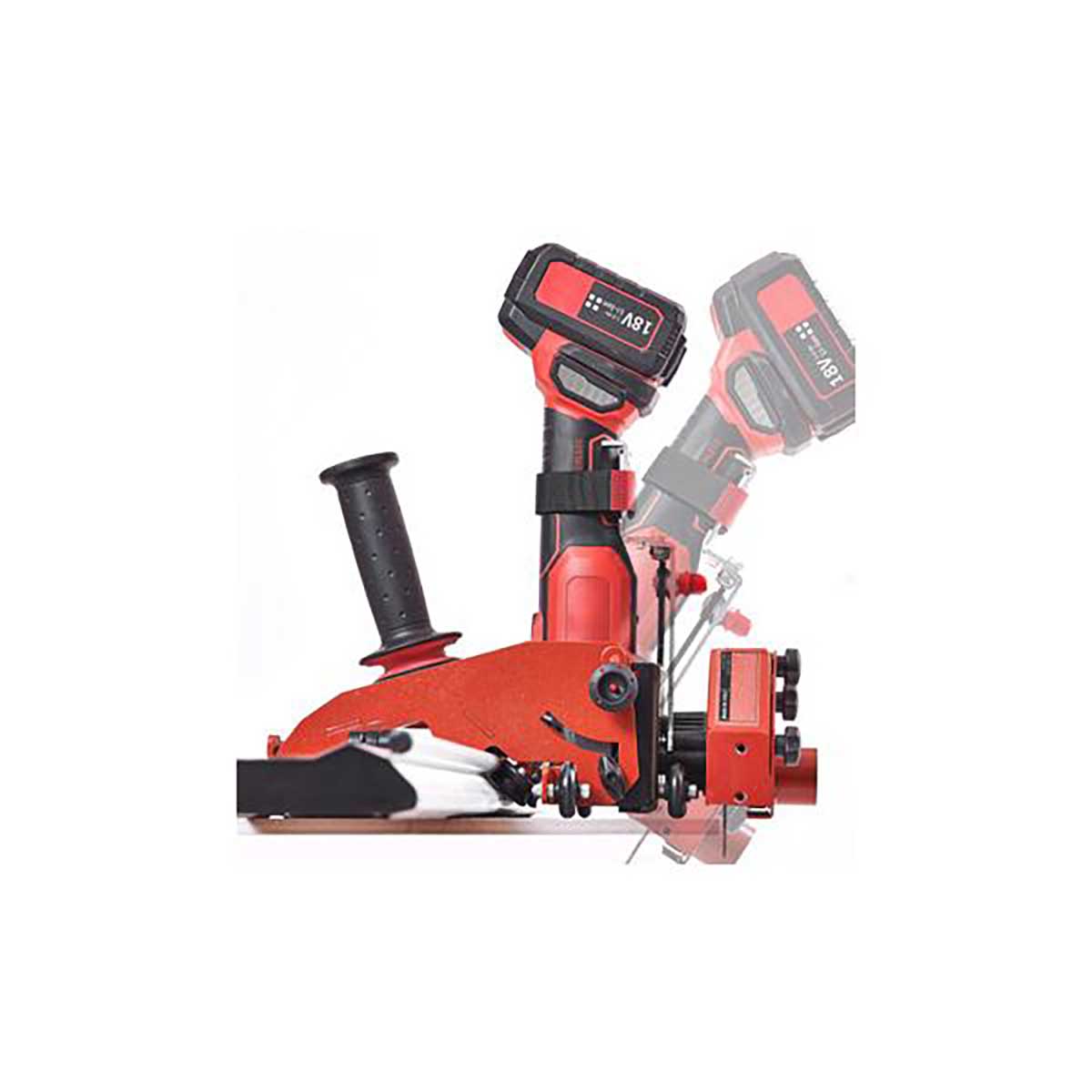

• Tilting Functionality: Plunge cutting capability allows for adjustable depth and facilitates the creation of openings, rectangular holes, and multi-step cuts.
• Maximum Stability: Features 4 support wheels positioned on the tile near the cutting disc for optimal balance and minimal mechanical stress.
• Smooth Rail Movement: Includes an additional set of 4 wheels for seamless sliding on the RAIZOR MkII aluminum rail.
• Universal Compatibility: Works with most electric angle grinders.
• Available in versions for M14 metric arbor and 5/8”-11 imperial arbor angle grinders.

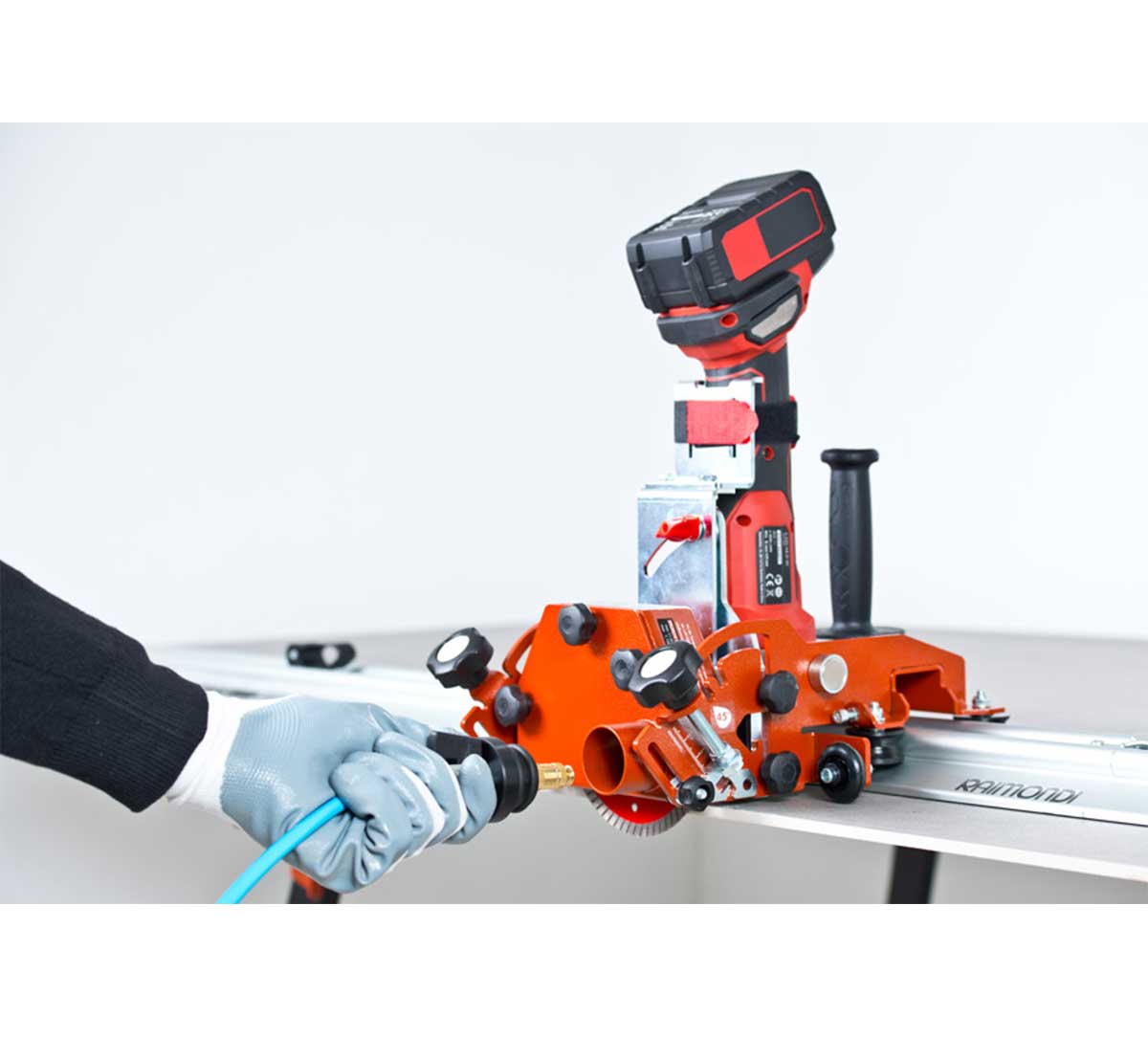

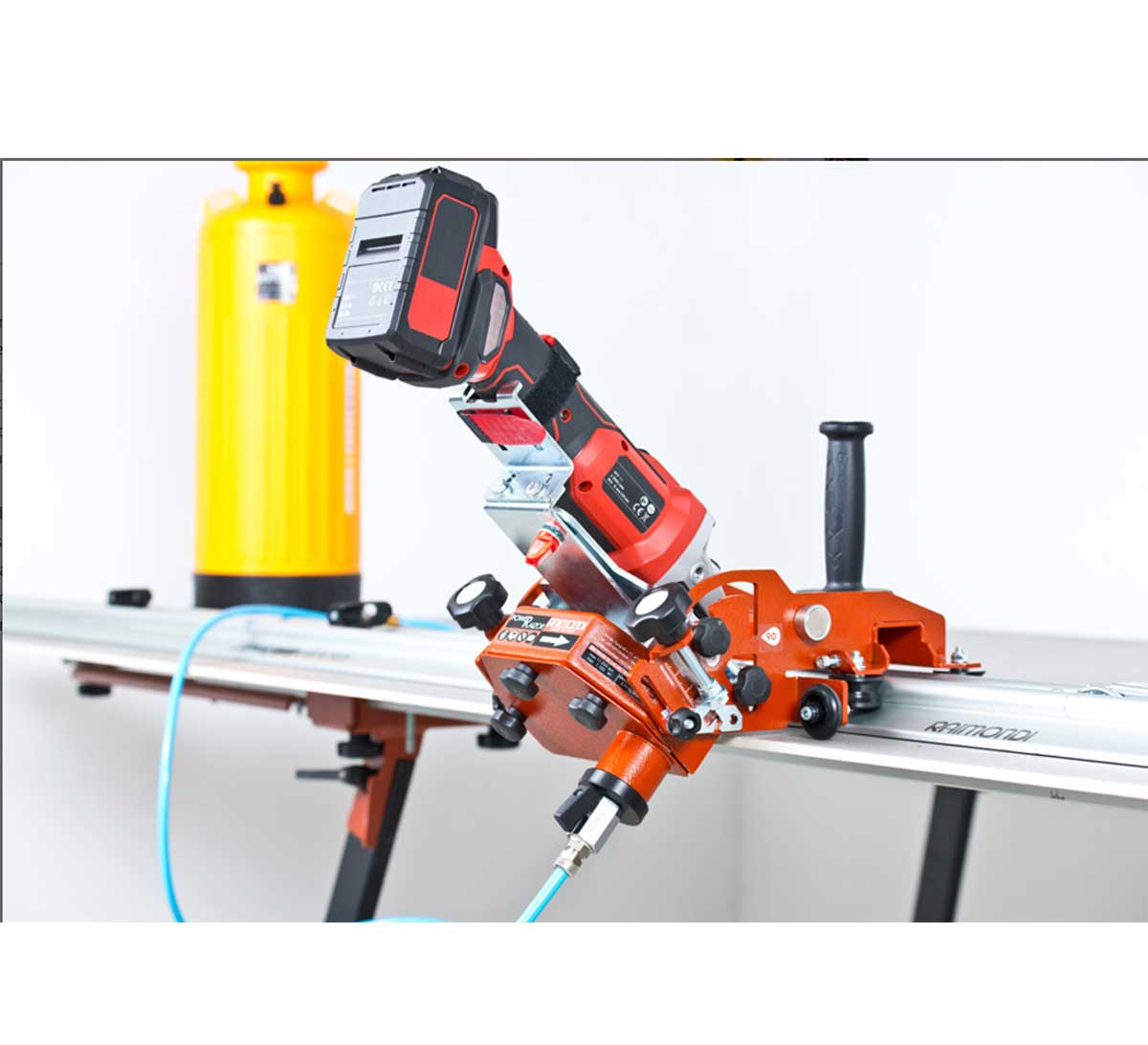

• Dry or Wet Use: Standard dry cutting. Optional wet cutting (requires dust suppression water feed – Art. 433PWW A) and an angle grinder with IP ≥ 54 rating or a cordless model.
• Dust Extraction: Built-in port for connecting to a dust extractor for cleaner work environments.
• Cutting Capacity: Up to 20 mm (0.79”) thickness at 90° and Up to 16 mm (0.63”) at 45°.
• Included Accessory: Turbo diamond disc Ø 125 mm – 5” (item. TCPWRDB).

POWER SOLUTION (optional)

The Power RAIZOR is available with semi-universal attachment but the grinder provided is 110v. 60Hz and the motor of 720W.

Turbo 5" diamond disc for dry use only with a clutch hose for dust extraction. The Power RAIZOR is available with or WITHOUT angle grinder.

Raimondi FREE-CUT System - VIDEO
