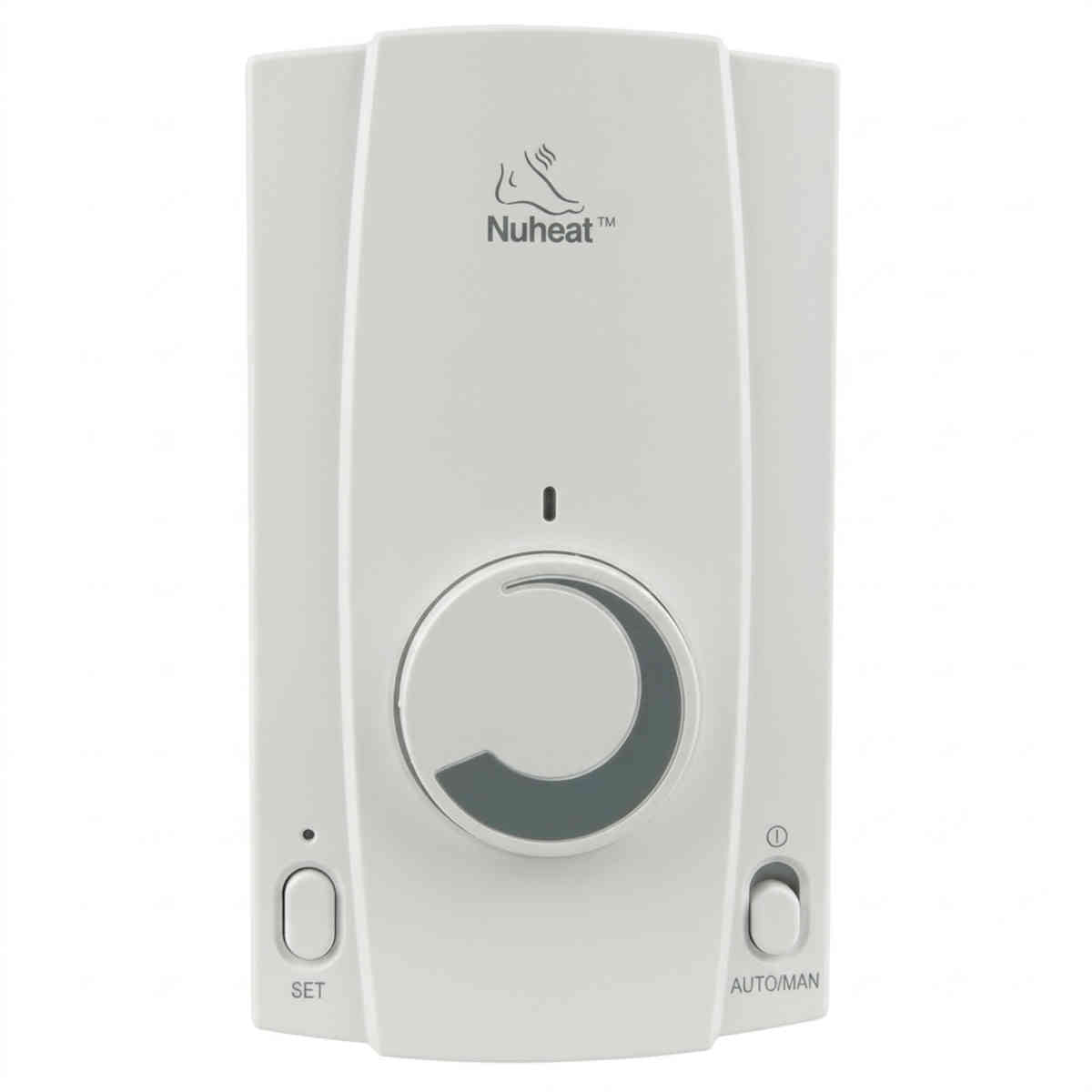

Nuheat MatComfort Regulator NG110 Dial Control Floor Heating Thermostat
The Nuheat MatComfort Regulator NG110 is a non-programmable dial-control thermostat designed for 120VAC electric floor heating systems. It provides simple manual temperature adjustment for electric radiant floor-warming applications without the need for a programmed heating schedule.
Designed for indoor installation, the NG110 uses an external floor temperature sensor to monitor the heated floor and automatically control the heating system according to the selected temperature. Its straightforward dial operation makes it a practical choice for homeowners and installers who want simple, direct control of an electric floor heating system.
The thermostat also features built-in Class A 5mA GFCI protection with a dedicated TEST function for checking GFCI operation.
Key Features
- Designed for 120VAC electric floor heating systems
- Non-programmable thermostat with manual dial control
- Floor temperature control using an external floor sensor
- 120VAC power supply, 50/60Hz
- 15A maximum resistive load
- Maximum load of 1,800W at 120VAC
- Built-in Class A 5mA GFCI protection
- GFCI TEST and reset functions
- Heating indicator
- Standby mode
- Simple manual temperature adjustment
- Wired connection
- Wall-mount installation
- CSA / UL safety approvals
What's Included
- 1 Nuheat MatComfort Regulator NG110 thermostat
- Floor temperature sensor
- Mounting hardware
- Installation instructions
Simple Dial-Controlled Floor Heating
The NG110 is designed for users who prefer straightforward manual control instead of a programmable thermostat. The desired floor temperature can be adjusted directly using the thermostat dial.
As the floor temperature changes, the thermostat responds to the temperature measured by the external floor sensor. The heating system is activated when additional heat is required and stops heating when the selected floor temperature is reached.
Because the NG110 is non-programmable, there is no need to configure weekday, weekend, or daily heating schedules. This makes it well suited to spaces where simple temperature adjustment is all that is needed.
Floor Temperature Control
The NG110 uses an external floor temperature sensor to monitor the temperature of the heated floor. The thermostat uses this sensor information to control the electric floor heating system according to the selected temperature.
The floor sensor provides temperature feedback to the thermostat so the heating system can respond as the floor temperature changes. Proper sensor installation is important for accurate floor temperature control and should follow the manufacturer's installation instructions.
Built-In Class A 5mA GFCI Protection
The MatComfort Regulator NG110 includes Class A 5mA GFCI protection and a dedicated TEST function. The GFCI is designed to provide electrical protection by monitoring for ground-fault conditions.
The thermostat's GFCI test function allows the installer or user to verify GFCI operation. During a successful test, the GFCI warning indicator illuminates and power to the heating load is interrupted. The thermostat can then be returned to normal operation using the appropriate controls.
Electrical Specifications
- Power supply: 120VAC, 50/60Hz
- Maximum load: 15A resistive
- Maximum power: 1,800W at 120VAC
- GFCI: Class A, 5mA
- Approvals: CSA / C,US
- Storage temperature: -4°F to 120°F (-20°C to 50°C)
Product Specifications
- Model: NG110
- Product: Nuheat MatComfort Regulator
- Application: Electric floor heating
- Thermostat type: Non-programmable
- Control: Manual dial
- Temperature control: Floor temperature
- Power source: 120VAC
- Connectivity: Wired
- Mounting: Wall mount
- GFCI protection: Built-in Class A 5mA
- Maximum load: 15A
- Maximum power: 1,800W
Manual Temperature Adjustment
The NG110 is a good choice for electric floor heating installations where a simple manual thermostat is preferred. The temperature can be adjusted directly from the dial without programming a heating schedule.
The thermostat automatically responds to the floor temperature measured by the sensor and controls the heating system based on the selected temperature.
Heating Indicator
The thermostat includes a heating indicator that shows when the heating system is calling for heat. When the measured floor temperature is below the selected temperature, the thermostat activates the heating output and the heating indicator indicates that heating is active.
Once the selected temperature is reached, the thermostat stops the heating output until additional heat is required.
GFCI Testing
The NG110 includes a built-in Class A 5mA GFCI and dedicated TEST function. Nuheat's installation instructions specify adjusting the thermostat until the heating indicator is active and then pressing TEST to verify that the GFCI warning indicator illuminates and power to the heating load is interrupted.
If the GFCI test does not operate as expected, the installation, load wiring, and thermostat heating mode should be checked before testing again.
Installation Information
The NG110 is designed for indoor installation with 120VAC electric floor-warming systems. The connected resistive heating load must not exceed 15A or 1,800W at 120VAC.
The thermostat's built-in GFCI requires the line and load connections to be properly connected and isolated according to the manufacturer's installation instructions. The external floor temperature sensor should be installed within the heated floor area according to the manufacturer's requirements.
All wiring and electrical connections must comply with applicable national and local electrical codes. Because the NG110 connects directly to line voltage, installation should be performed by a qualified electrician.
Recommended Applications
The NG110 is designed for indoor electric floor heating applications where simple, manual floor temperature control is preferred. It can be used with electric radiant floor heating systems in residential areas such as bathrooms, kitchens, bedrooms, living rooms, hallways, and other areas with heated floors.
The simple dial design makes the NG110 particularly suitable for installations where programmable scheduling is not required and straightforward temperature adjustment is preferred.
Important Installation Information
Review the complete installation and operating instructions before installing or operating the thermostat. Verify the electrical supply, heating load, wiring, and floor sensor requirements before installation.
The NG110 is rated for a maximum resistive load of 15A or 1,800W at 120VAC. The thermostat is designed for 120VAC applications and should not be connected to a different voltage supply.
Because the NG110 involves line-voltage electrical connections and built-in GFCI protection, installation and electrical testing should be performed by a qualified electrician in accordance with applicable local electrical codes and requirements.
