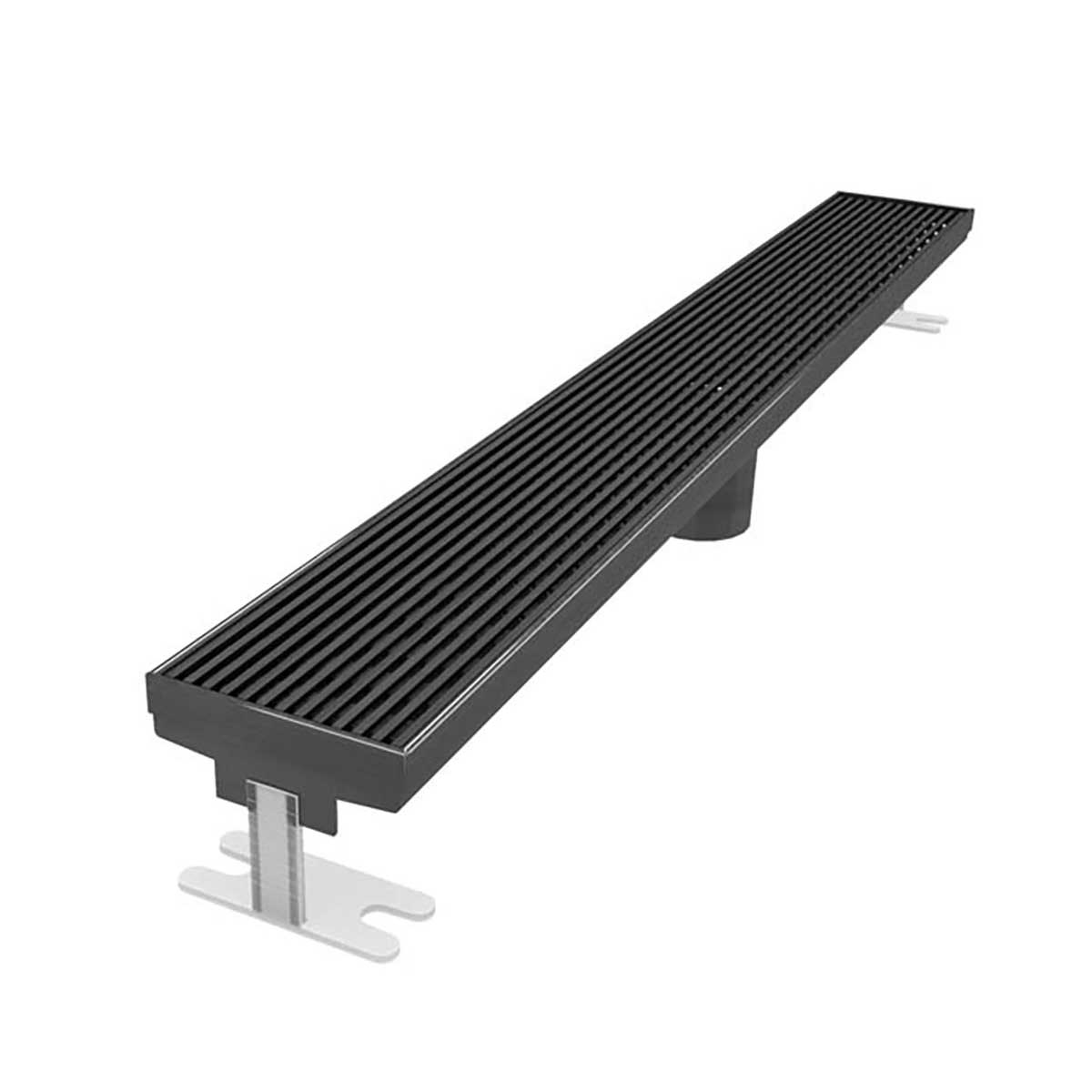

Quartz Linear Wedge Shower Drain Black Nickel

Quartz Linear Wedge Shower Drain Black Nickel

Premium Linear Shower Drain with a Contemporary Black Nickel Finish

The Quartz Linear Wedge Shower Drain in Black Nickel combines modern European styling with dependable drainage performance. Featuring a foot-friendly wedge grate with anti-slip nodules, this linear shower drain provides both safety and comfort while creating a bold architectural statement in luxury residential and commercial bathrooms.

The reflective Black Nickel finish pairs beautifully with black fixtures, titanium finishes, and contemporary bathroom hardware, making it an excellent choice for modern walk-in showers and designer bathroom renovations. Its linear design also allows for a single-direction shower floor slope, simplifying tile installation while creating a clean, open appearance.

Ideal Applications

• Walk-in showers
• Curbless and barrier-free shower systems
• Luxury residential bathrooms
• Bathroom remodeling projects
• Hotels, spas, and commercial shower installations
• Wood joist shower floor installations using CPE waterproof membranes

Complete Drain Kit Includes

• Linear shower channel body
• Black Nickel wedge grate cover
• Grate lifting key
• Adjustable leveling feet
• Installation hardware

Available Sizes

• 27.55 inches (700 mm) - Intake: 16.62 sq. in.
• 31.50 inches (800 mm) - Intake: 19.11 sq. in.
• 35.43 inches (900 mm) - Intake: 28.85 sq. in.
• 39.37 inches (1000 mm) - Intake: 31.36 sq. in.
• 47.25 inches (1200 mm) - Intake: 36.37 sq. in.
• 55.12 inches (1400 mm) - Intake: 41.38 sq. in.
• 59.05 inches (1500 mm) - Intake: 44.74 sq. in.

Features

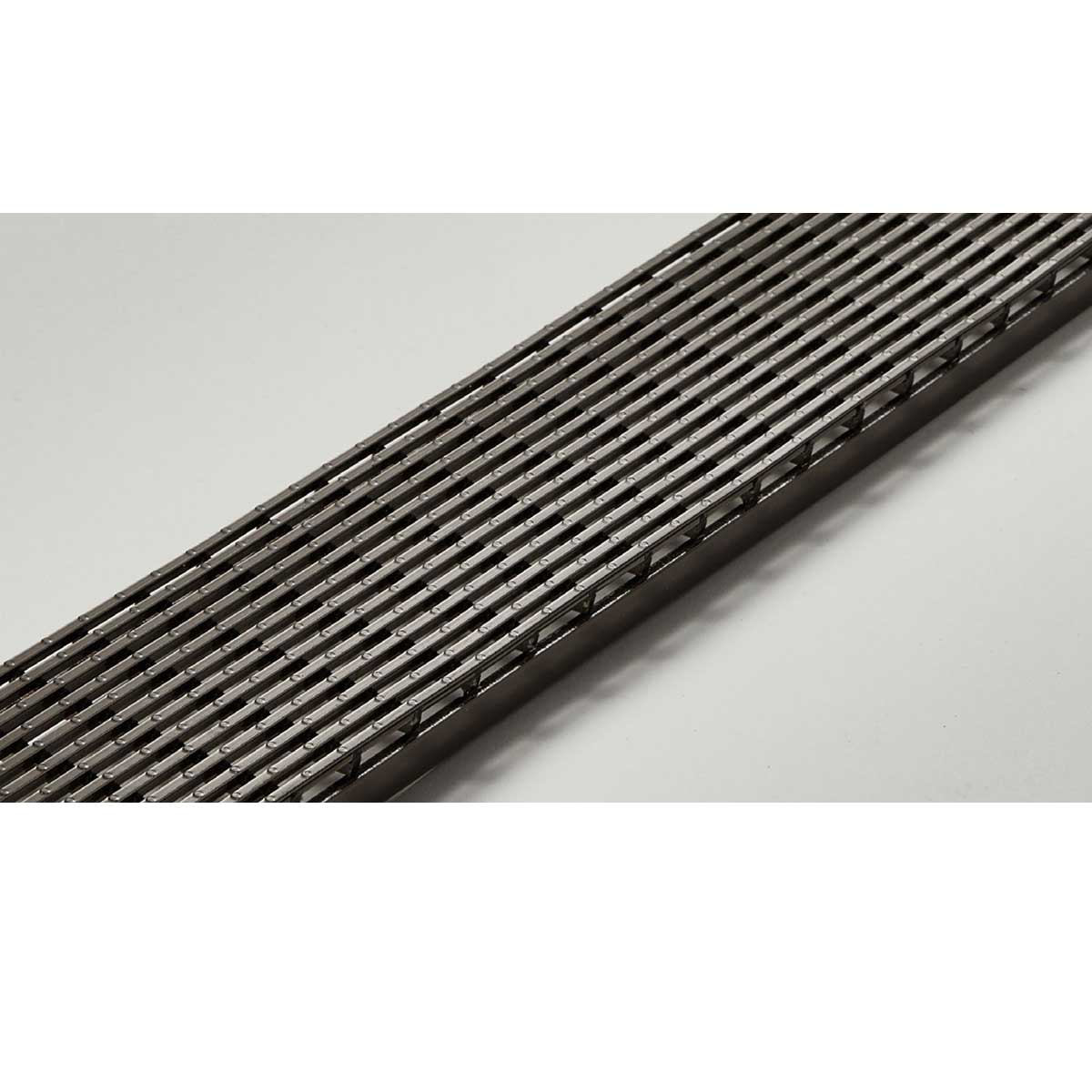

• Foot-friendly wedge grate with anti-slip nodules
• Contemporary Black Nickel finish
• 2 inch diameter central vertical outlet
• Flow rate: 6.3 GPM (0.6 l/s) at entrance and 9.5 GPM (0.6 l/s) against the wall
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet simplify installation
• Friction-locking plastic plugs securely hold the grate in place
• Designed for wood joist applications using CPE waterproof membranes
• Optional accessories include plumbing connectors, debris strainer, and water-activated LED lighting

Modern Black Nickel Finish

The Black Nickel finish offers a rich, contemporary appearance with subtle reflective qualities that enhance modern bathroom designs. It complements matte black, brushed stainless, titanium, and other dark metal finishes while creating an elegant focal point within the shower.

Why Choose a Linear Shower Drain?

Linear shower drains provide greater design flexibility than traditional center drains. They can be positioned along a wall, at the shower entrance, or in the center of the shower, allowing for an open, barrier-free layout. When installed as a threshold drain, the channel helps separate wet and dry areas while eliminating the need for complicated tile cuts around traditional round drains. The result is a cleaner installation, improved accessibility, and a sleek architectural appearance.

Installation Notes

This linear shower drain is designed for wood joist shower floor applications using CPE waterproof membranes. Always follow the manufacturer's installation instructions, maintain the proper shower floor slope, and install the waterproofing system correctly to ensure dependable long-term drainage performance.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz Linear Wedge Shower Drain in Black Nickel provides dependable drainage, a clean architectural appearance, and long-lasting performance. Careful planning, proper waterproofing, and accurate installation help create a professional shower system that will perform reliably for years in both residential and commercial applications.
