Quartz Linear Wedge Shower Drain Rose Gold

Quartz Linear Wedge Shower Drain Rose Gold

Premium Linear Shower Drain with an Elegant Rose Gold Finish

The Quartz Linear Wedge Shower Drain in Rose Gold combines exceptional drainage performance with a sophisticated decorative finish that brings warmth and elegance to modern bathrooms. Featuring a foot-friendly wedge grate with anti-slip nodules, this premium linear shower drain offers both comfort and dependable drainage while serving as a stylish focal point in luxury shower designs.

The beautiful Rose Gold finish blends subtle tones of gold, copper, and silver, making it an excellent choice for bathrooms featuring Rose Gold, copper, brushed brass, or warm metallic fixtures. Its linear design supports a clean architectural appearance while simplifying tile installation with a single-direction shower floor slope.

Ideal Applications

• Walk-in showers
• Curbless and barrier-free shower systems
• Luxury residential bathrooms
• Bathroom remodeling projects
• Hotels, spas, and commercial shower installations
• Wood joist shower floor installations using CPE waterproof membranes

Complete Drain Kit Includes

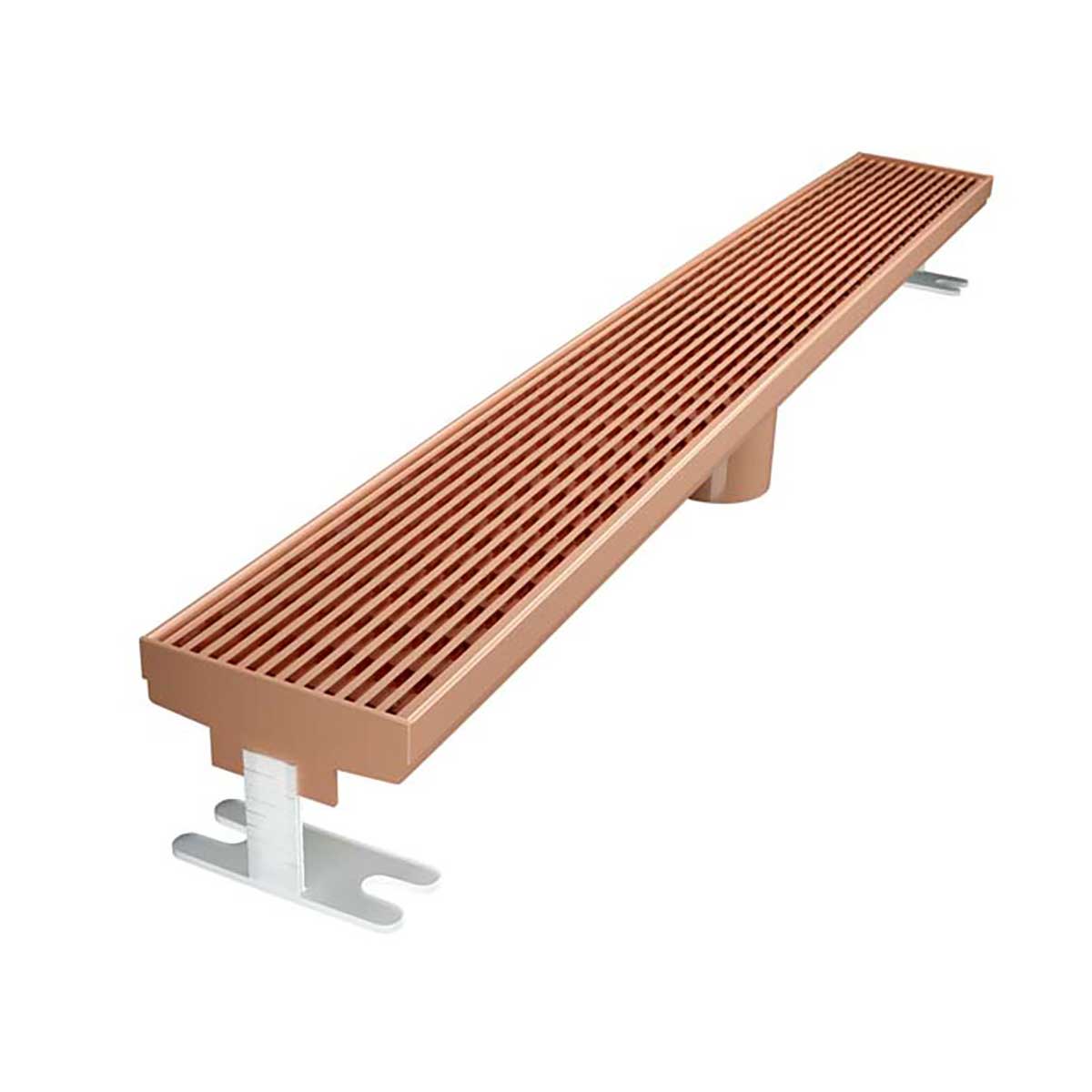

• Linear shower channel body
• Rose Gold wedge grate cover
• Grate lifting key
• Adjustable leveling feet
• Installation hardware

Available Sizes

• 27.55 inches (700 mm) - Intake: 16.62 sq. in.
• 31.50 inches (800 mm) - Intake: 19.11 sq. in.
• 35.43 inches (900 mm) - Intake: 28.85 sq. in.
• 39.37 inches (1000 mm) - Intake: 31.36 sq. in.
• 47.25 inches (1200 mm) - Intake: 36.37 sq. in.
• 55.12 inches (1400 mm) - Intake: 41.38 sq. in.
• 59.05 inches (1500 mm) - Intake: 44.74 sq. in.

Features

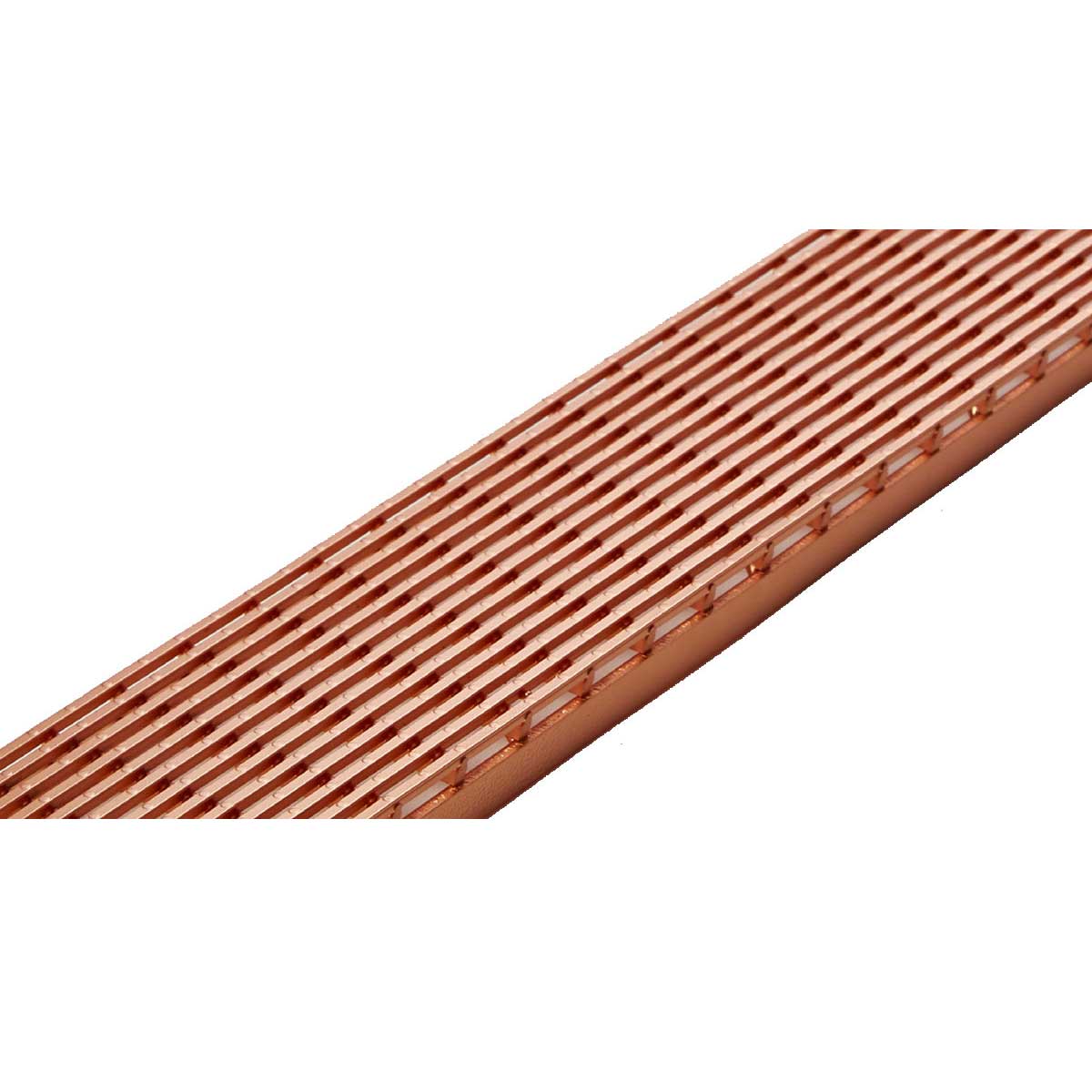

• Foot-friendly wedge grate with anti-slip nodules
• Elegant Rose Gold finish
• 2 inch diameter central vertical outlet
• Flow rate: 6.3 GPM (0.6 l/s) at entrance and 9.5 GPM (0.6 l/s) against the wall
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet simplify installation
• Friction-locking plastic plugs securely hold the grate in place
• Designed for wood joist applications using CPE waterproof membranes
• Optional accessories include plumbing connectors, debris strainer, and water-activated LED lighting

Elegant Rose Gold Finish

The Rose Gold finish is a refined blend of gold, copper, and silver tones that creates a warm, contemporary appearance. It pairs beautifully with today's popular Rose Gold, brushed brass, copper, and warm metallic bathroom fixtures, adding a luxurious finishing touch to modern shower designs.

Why Choose a Linear Shower Drain?

Linear shower drains provide greater design flexibility than traditional center drains. They can be positioned along a wall, at the shower entrance, or in the center of the shower, allowing for an open, barrier-free layout. When installed as a threshold drain, the channel helps separate wet and dry areas while eliminating complicated tile cuts around conventional drains. The result is a cleaner installation, improved accessibility, and an elegant architectural appearance.

Installation Notes

This linear shower drain is designed for wood joist shower floor applications using CPE waterproof membranes. Always follow the manufacturer's installation instructions, maintain the proper shower floor slope, and install the waterproofing system correctly to ensure dependable long-term drainage performance.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz Linear Wedge Shower Drain in Rose Gold provides dependable drainage, a clean architectural appearance, and long-lasting performance. Careful planning, proper waterproofing, and accurate installation help create a professional shower system that will perform reliably for years in both residential and commercial applications.
