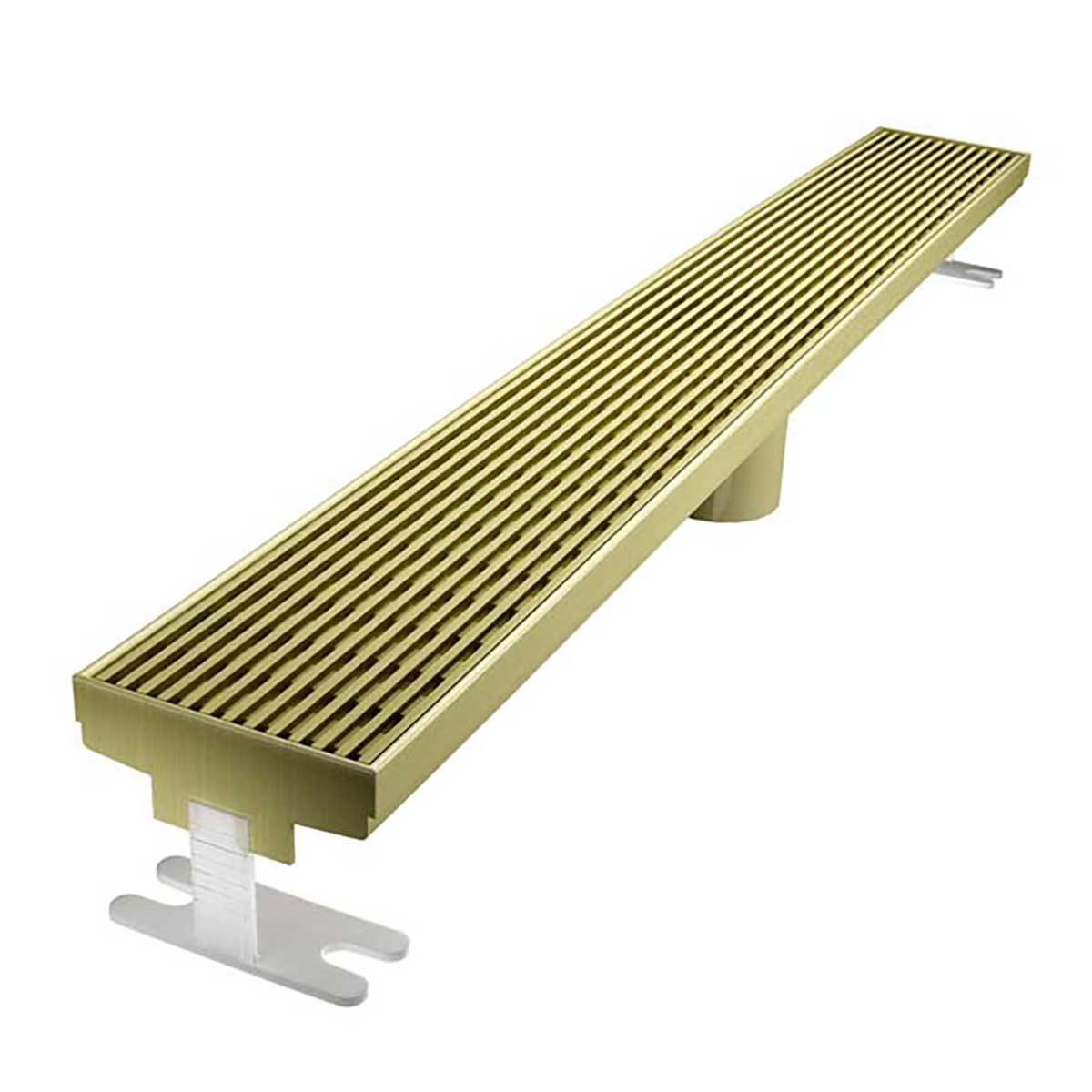

Quartz Linear Wedge Shower Drain Satin Brass

Quartz Linear Wedge Shower Drain Satin Brass

Premium Linear Shower Drain with a Warm Satin Brass Finish

The Quartz Linear Wedge Shower Drain in Satin Brass combines reliable drainage performance with a luxurious contemporary finish that enhances today's designer bathrooms. Featuring a foot-friendly wedge grate with anti-slip nodules, this premium linear shower drain delivers exceptional comfort, dependable water management, and a sophisticated architectural appearance.

The Satin Brass finish showcases rich golden tones that complement brushed brass faucets, gold fixtures, warm metallic accents, and both light and dark tile designs. Whether you're building a luxury walk-in shower or remodeling a contemporary bathroom, this elegant finish adds lasting style to any shower installation.

Ideal Applications

• Walk-in showers
• Curbless and barrier-free shower systems
• Luxury residential bathrooms
• Bathroom remodeling projects
• Hotels, spas, and commercial shower installations
• Wood joist shower floor installations using CPE waterproof membranes

Complete Drain Kit Includes

• Linear shower channel body
• Satin Brass wedge grate cover
• Grate lifting key
• Adjustable leveling feet
• Installation hardware

Available Sizes

• 27.55 inches (700 mm) - Intake: 16.62 sq. in.
• 31.50 inches (800 mm) - Intake: 19.11 sq. in.
• 35.43 inches (900 mm) - Intake: 28.85 sq. in.
• 39.37 inches (1000 mm) - Intake: 31.36 sq. in.
• 47.25 inches (1200 mm) - Intake: 36.37 sq. in.
• 55.12 inches (1400 mm) - Intake: 41.38 sq. in.
• 59.05 inches (1500 mm) - Intake: 44.74 sq. in.

Features

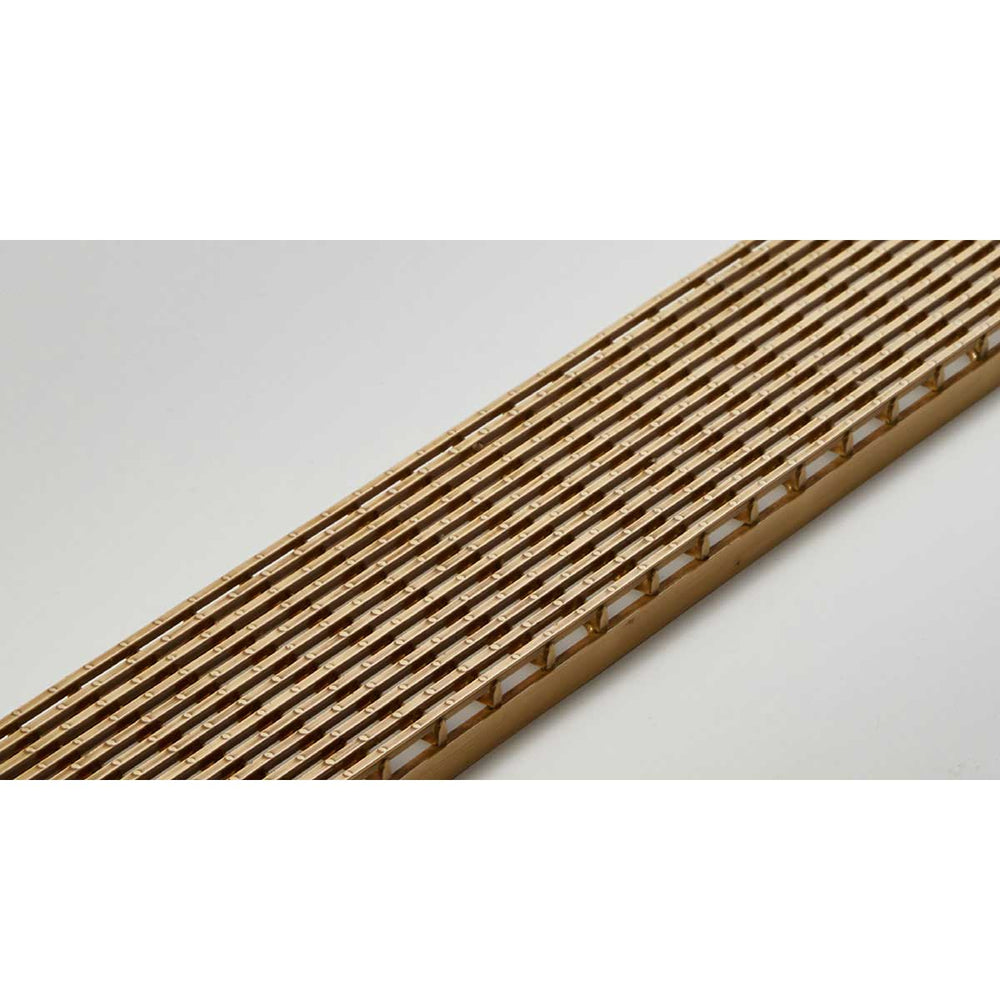

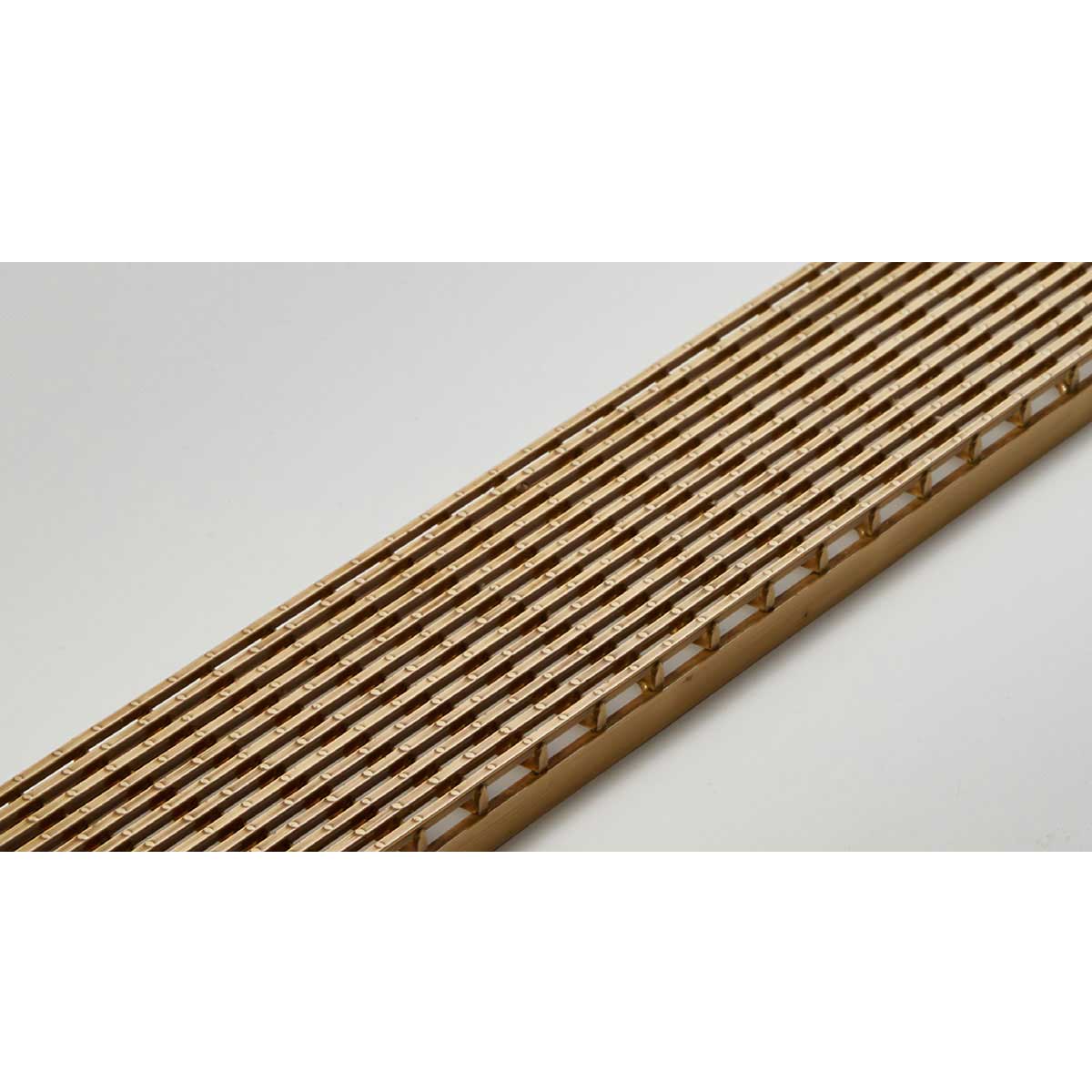

• Foot-friendly wedge grate with anti-slip nodules
• Premium Satin Brass finish
• 2 inch diameter central vertical outlet
• Flow rate: 6.3 GPM (0.6 l/s) at the entrance and 9.5 GPM (0.6 l/s) against the wall
• Channel width: 3.3 inches (84 mm)
• Plastic support feet simplify installation and leveling
• Friction-locking plastic plugs securely hold the grate in place
• Designed for wood joist applications using CPE waterproof membranes
• Optional accessories include plumbing connectors, debris strainer, and water-activated LED lighting

Elegant Satin Brass Finish

The Satin Brass finish offers a warm, sophisticated appearance with beautifully blended golden tones that complement today's most popular luxury bathroom fixtures. It pairs exceptionally well with brushed brass, gold, bronze, and other warm metallic finishes, creating a timeless and elegant shower design.

Why Choose a Linear Shower Drain?

Linear shower drains provide greater flexibility than traditional center drains by allowing installation along a wall, at the shower entrance, or in the center of the shower. Their design supports a single-direction floor slope, reduces complicated tile cuts, and creates a clean, open appearance that is ideal for curbless showers and modern bathroom renovations.

Installation Notes

This linear shower drain is designed for wood joist shower floor installations using CPE waterproof membranes. Proper waterproofing, accurate drain placement, and the recommended shower floor slope are essential to ensure dependable drainage and long-lasting performance.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz Linear Wedge Shower Drain in Satin Brass provides dependable drainage, a clean architectural appearance, and long-lasting performance. Careful planning, proper waterproofing, and accurate installation help create a professional shower system that will perform reliably for years in both residential and commercial applications.
