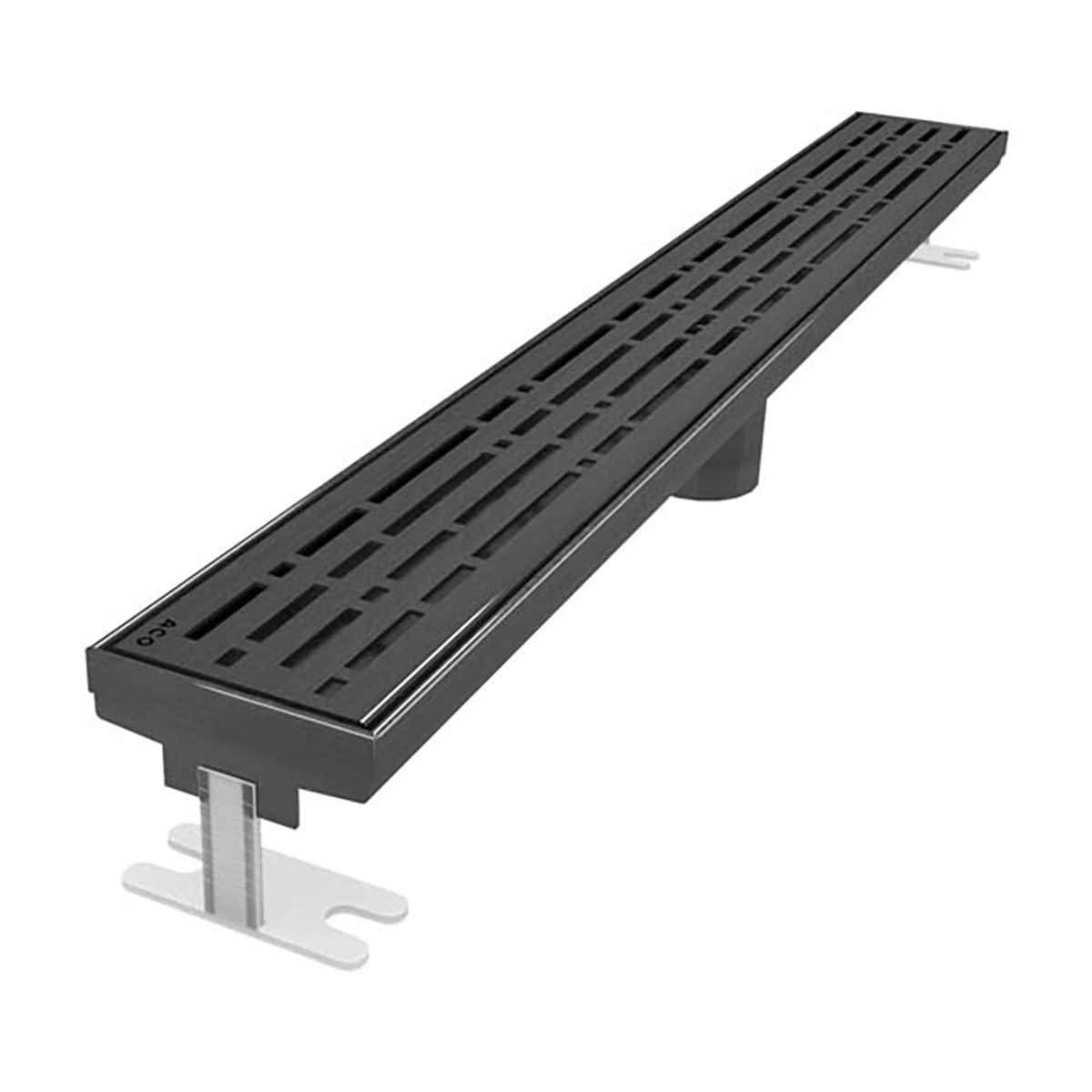

Quartz by ACO Mix Black Nickel Linear Shower Drain | 28 to 60 Inch

Quartz by ACO Mix Linear Shower Drain with Black Nickel Grate

Decorative linear shower drain featuring the distinctive Mix geometric slot design.

The Quartz by ACO Mix Linear Shower Drain combines outstanding drainage performance with a bold geometric grate pattern made of interchangeable rectangles and squares. The contemporary design creates visual interest while complementing a wide variety of tile styles, making it an excellent choice for modern bathrooms, curbless showers, wet rooms, and commercial shower installations. Finished in Black Nickel, this premium linear drain delivers a dramatic architectural appearance with dependable long-term performance.

Complete Drain Kit Includes

• Stainless steel channel body
• Mix decorative grate in Black Nickel finish
• Lifting key
• Adjustable installation feet
• Installation hardware

Designed for Wood Joist Installations

This linear shower drain is designed for wood joist applications using a CPE shower pan membrane. Proper installation following the manufacturer's recommendations helps ensure dependable waterproofing and long-lasting performance.

Available Sizes

• 28 Inch (700 mm) - Water intake: 18.54 sq. in.
• 32 Inch (800 mm) - Water intake: 20.88 sq. in.
• 36 Inch (900 mm) - Water intake: 23.56 sq. in.
• 40 Inch (1000 mm) - Water intake: 26.47 sq. in.
• 48 Inch (1200 mm) - Water intake: 27.72 sq. in.
• 55 Inch (1400 mm) - Water intake: 28.95 sq. in.
• 60 Inch (1500 mm) - Water intake: 39.10 sq. in.

Specifications

• 2 inch diameter central vertical outlet
• Flow rate: At entrance - 6.3 GPM (0.6 l/s); Against the wall - 9.5 GPM (0.6 l/s)
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet for easier installation
• Optional accessories include plumbing connectors, water-activated LED light, and debris strainer

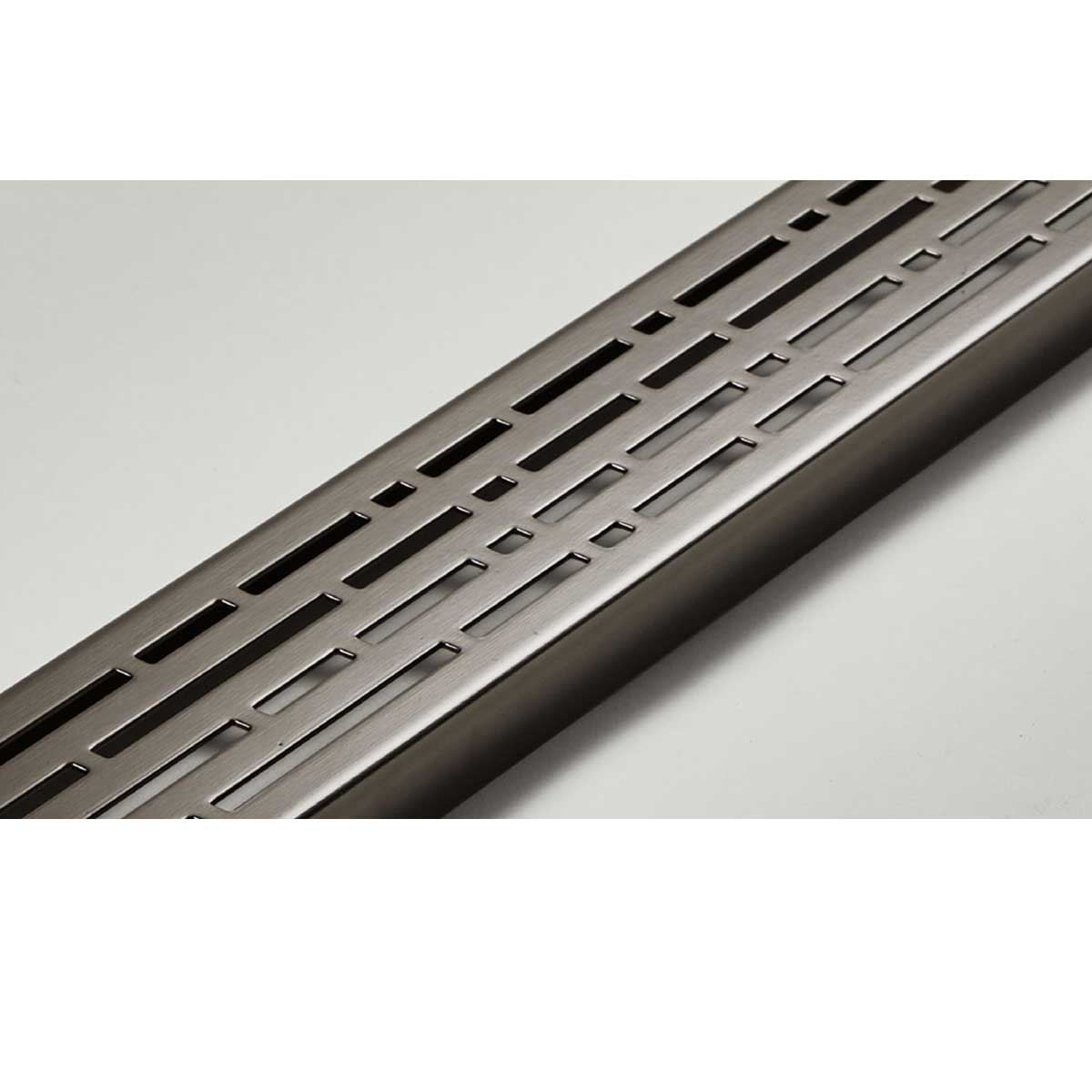

Black Nickel Mix Grate

The Mix grate features a striking arrangement of geometric rectangles and squares that creates a clean, contemporary appearance while providing excellent drainage performance. Its modern pattern blends effortlessly with porcelain tile, natural stone, and large-format tile installations, making it a popular choice for both residential and commercial bathrooms.

The Black Nickel finish offers a contemporary dark metallic appearance with a subtle reflective quality that complements black stainless fixtures, titanium finishes, matte black hardware, and other modern bathroom accents. It creates a distinctive focal point while maintaining an elegant architectural look.

Benefits of a Linear Shower Drain

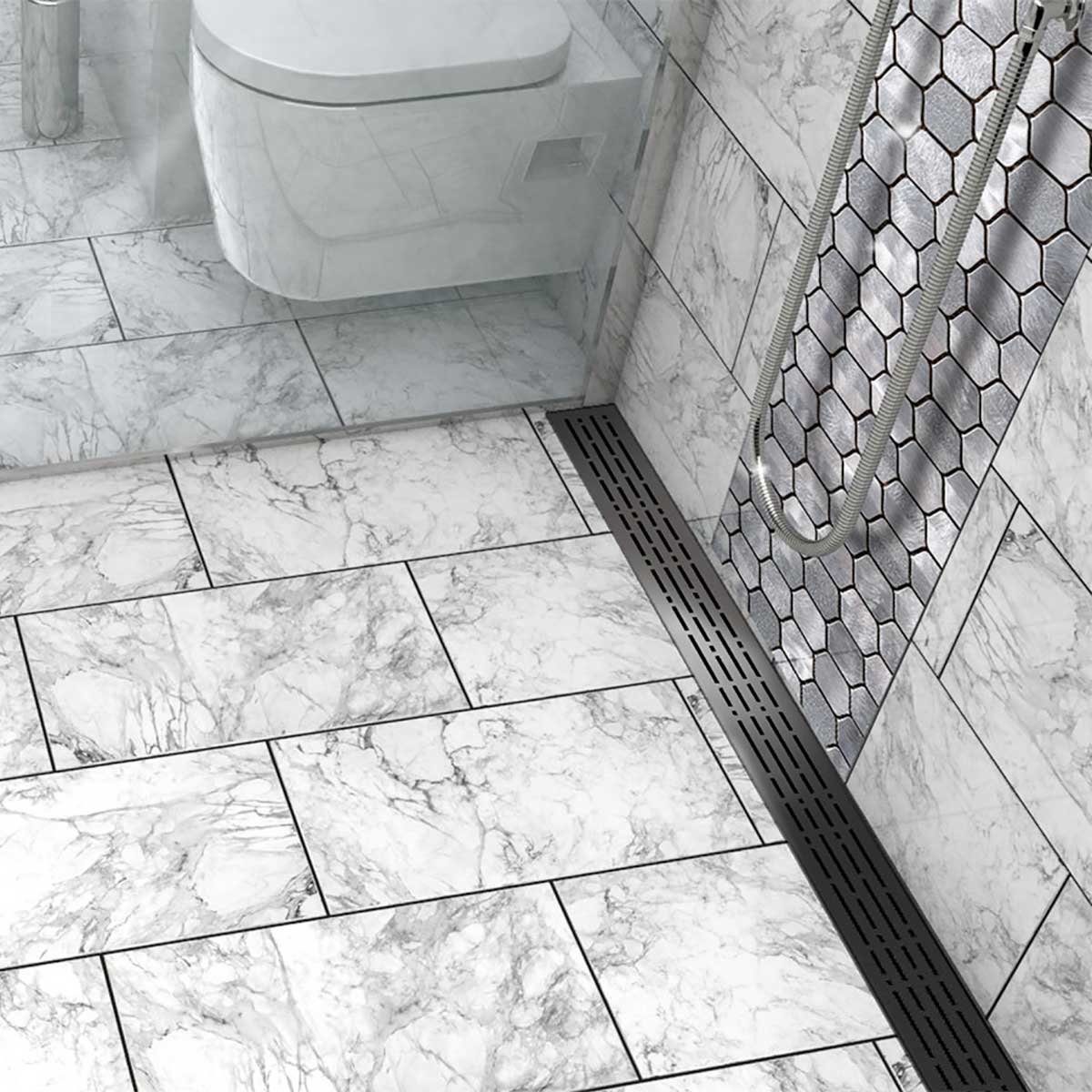

Unlike traditional center drains, a linear shower drain offers greater flexibility in shower design. It can be installed along a wall, at the shower entrance, or in the center of the shower floor, making it ideal for curbless showers, barrier-free bathrooms, wet rooms, and open-concept layouts. The linear design also simplifies floor sloping while minimizing complicated tile cuts for a cleaner, more professional installation.

Manufactured from premium stainless steel, Quartz by ACO linear shower drains combine European-inspired engineering with dependable drainage performance. Designed for years of reliable service, they provide an attractive, low-maintenance drainage solution for both residential and commercial applications when installed according to the manufacturer's instructions.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO Mix Linear Shower Drain with Black Nickel Grate delivers dependable drainage, a bold architectural appearance, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that performs reliably for years in both residential and commercial applications.
