Quartz by ACO 60 Inch Hawaii Linear Shower Drain Oil-Rubbed Bronze

Quartz by ACO 60 Inch Hawaii Linear Shower Drain with Oil-Rubbed Bronze Grate

Decorative linear shower drain featuring the distinctive Hawaii curved slot design.

The Quartz by ACO 60 Inch Hawaii Linear Shower Drain combines exceptional drainage performance with an elegant decorative grate inspired by flowing ocean waves. Its parallel curved "S" longitudinal slot pattern creates a sophisticated architectural appearance while efficiently directing water away from the shower floor. Finished in Oil-Rubbed Bronze, this premium linear drain adds warmth and timeless character to luxury bathrooms, walk-in showers, curbless showers, and commercial wet areas.

Complete Drain Kit Includes

• Stainless steel channel body
• Hawaii decorative grate in Oil-Rubbed Bronze finish
• Lifting key
• Adjustable installation feet
• Installation hardware

Designed for Wood Joist Installations

This linear shower drain is designed for wood joist applications using a CPE shower pan membrane. Proper installation following the manufacturer's recommendations helps ensure dependable waterproofing and long-lasting performance.

Specifications

• Length: 59.05 inches (1500 mm)
• Water intake: 35.14 sq. in.
• 2 inch diameter central vertical outlet
• Flow rate: At entrance - 6.3 GPM (0.6 l/s); Against the wall - 9.5 GPM (0.6 l/s)
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet for easier installation
• Optional accessories include plumbing connectors, water-activated LED light, and debris strainer

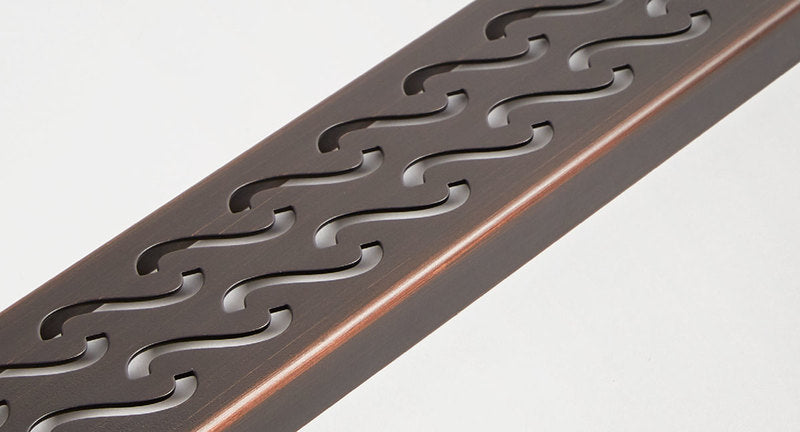

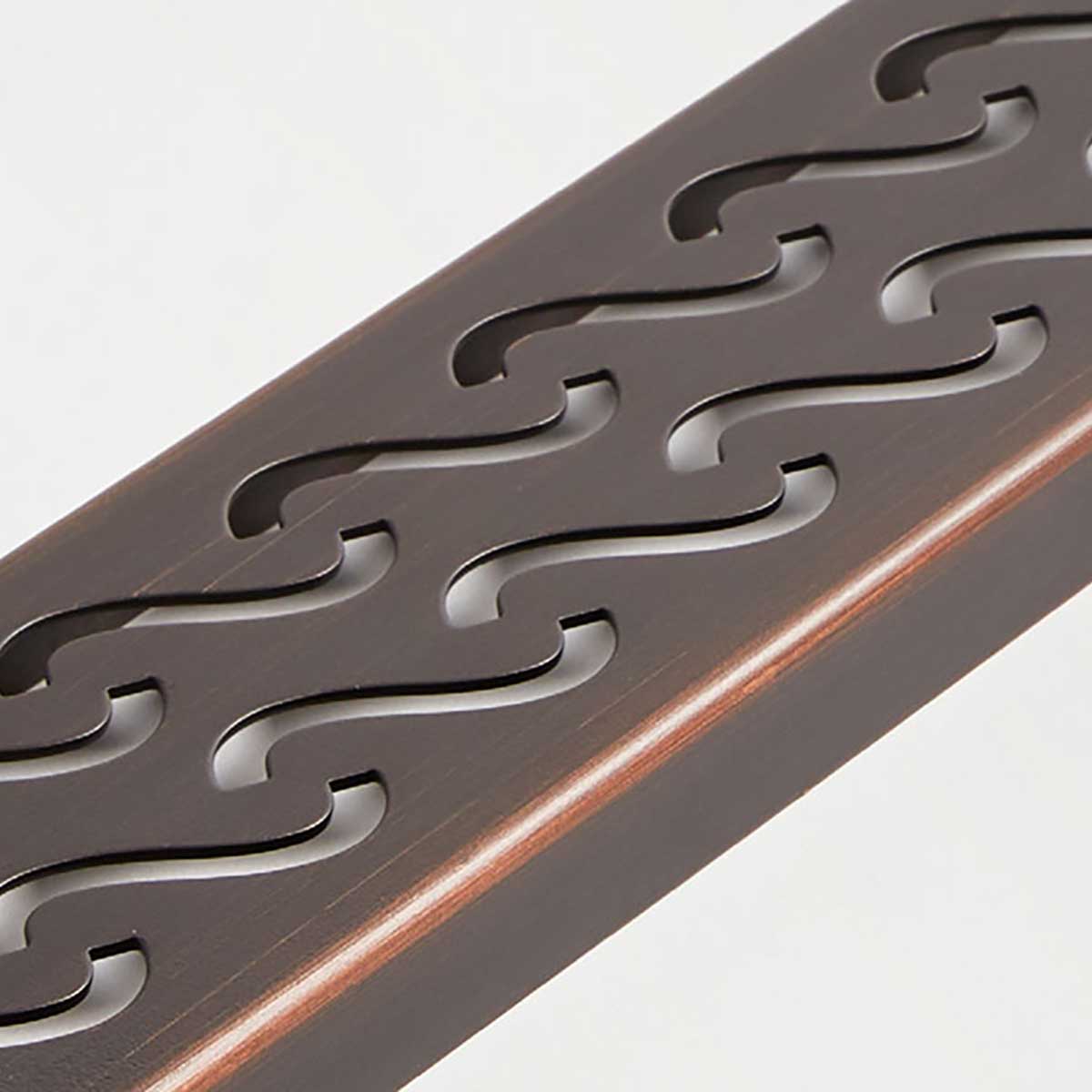

Oil-Rubbed Bronze Hawaii Grate

The Hawaii grate features elegant parallel curved "S" slots that create a flowing pattern across the shower floor while delivering outstanding drainage performance. Inspired by the movement of ocean waves, it provides a refined architectural appearance that enhances both residential and commercial shower installations.

The handcrafted Oil-Rubbed Bronze finish creates a rich, antique-inspired appearance with warm earth tones that coordinate beautifully with bronze fixtures, natural stone, wood cabinetry, and traditional or transitional bathroom designs. Its unique finish adds character while maintaining the durability of premium stainless steel construction.

Benefits of a Linear Shower Drain

Unlike traditional center drains, a linear shower drain offers greater flexibility in shower design. It can be positioned along a wall, at the shower entrance, or in the center of the shower floor, making it ideal for curbless showers, wet rooms, barrier-free bathrooms, and open-concept shower layouts. The linear design also simplifies floor sloping while minimizing difficult tile cuts for a cleaner, more professional installation.

Manufactured from premium stainless steel, Quartz by ACO linear shower drains combine European-inspired styling with dependable drainage performance. Built for years of reliable service, they provide an attractive, low-maintenance drainage solution for both residential and commercial applications when installed according to the manufacturer's instructions.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO 60 Inch Hawaii Linear Shower Drain with Oil-Rubbed Bronze Grate delivers dependable drainage, a striking architectural appearance, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that performs reliably for years in both residential and commercial applications.
