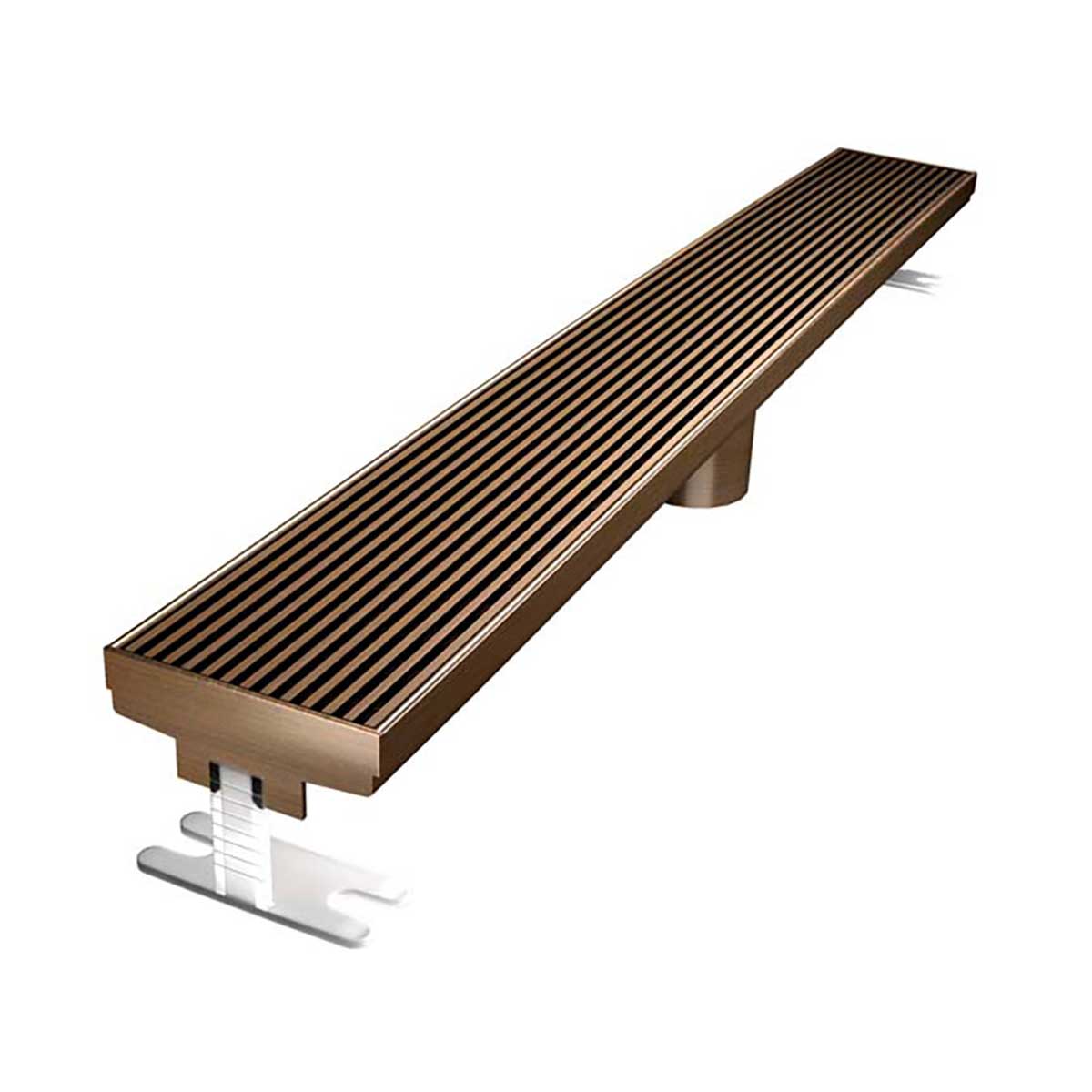

Quartz Linear Wedge 60 Inch Shower Drain Oil-Rubbed Bronze

Quartz Linear Wedge 60 Inch Shower Drain Oil-Rubbed Bronze

Premium 60 Inch Linear Shower Drain with a Timeless Oil-Rubbed Bronze Finish

The Quartz Linear Wedge 60 Inch Shower Drain in Oil-Rubbed Bronze combines dependable drainage performance with classic elegance. Featuring a foot-friendly wedge grate with anti-slip nodules, this premium linear shower drain delivers exceptional functionality while adding warmth and character to luxury bathrooms and walk-in showers.

The handcrafted Oil-Rubbed Bronze finish is inspired by the natural aging of bronze, creating a rich, antique appearance that pairs beautifully with warm-toned fixtures, natural stone, wood accents, and traditional or transitional bathroom designs. Its refined architectural profile makes it an excellent choice for both residential and commercial shower installations.

Ideal Applications

• Walk-in showers
• Curbless and barrier-free shower systems
• Luxury residential bathrooms
• Bathroom remodeling projects
• Hotels, spas, and commercial shower installations
• Wood joist shower floor installations using CPE waterproof membranes

Complete Drain Kit Includes

• Linear shower channel body
• Oil-Rubbed Bronze wedge grate cover
• Grate lifting key
• Adjustable leveling feet
• Installation hardware

Specifications

• Length: 59.05 inches (1500 mm)
• Water intake area: 44.74 sq. in.
• Channel width: 3.3 inches (84 mm)
• 2 inch diameter central vertical outlet
• Flow rate: 6.3 GPM (0.6 l/s) at the entrance and 9.5 GPM (0.6 l/s) against the wall

Features

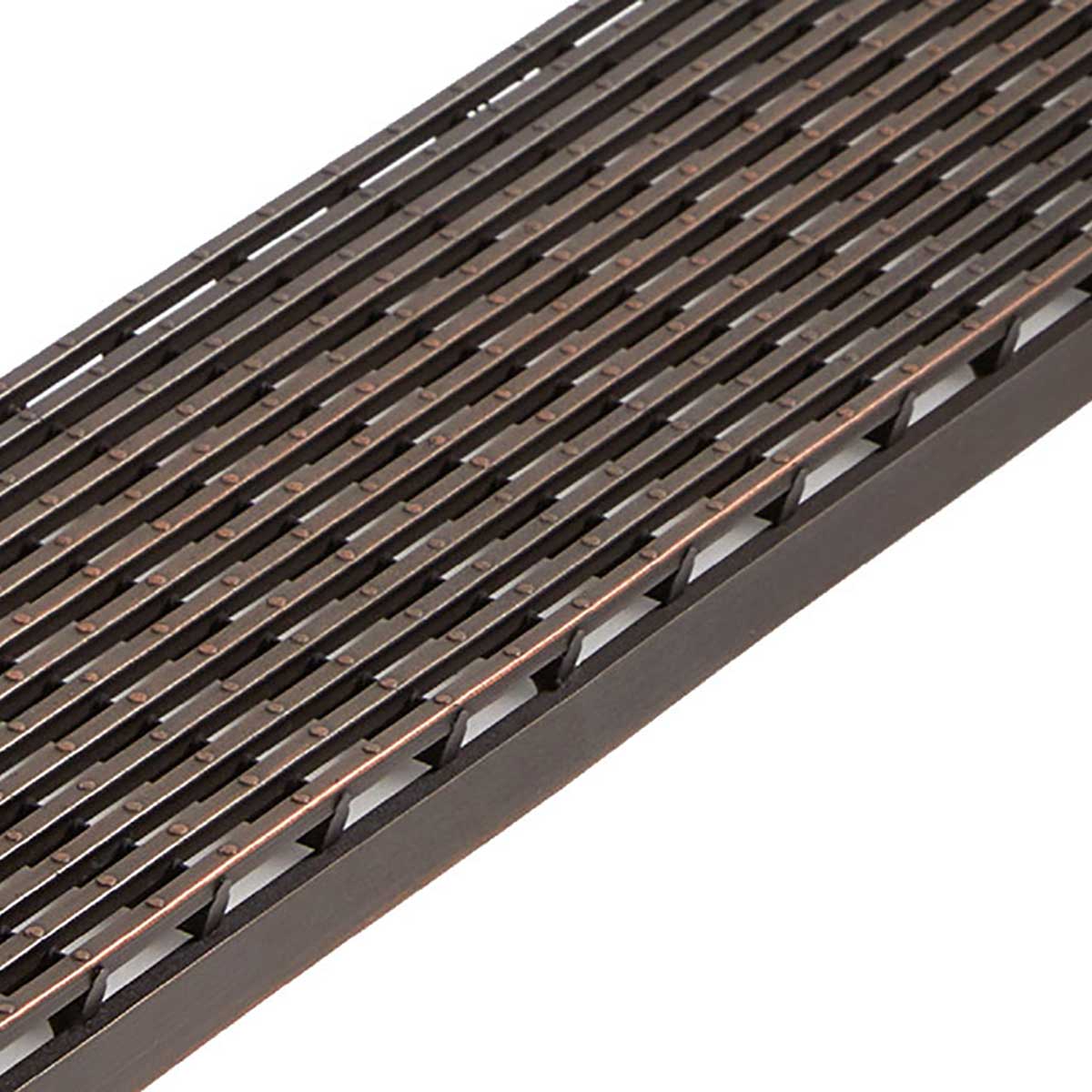

• Foot-friendly wedge grate with anti-slip nodules
• Premium Oil-Rubbed Bronze finish
• Durable stainless steel grate construction
• Plastic support feet simplify installation and leveling
• Friction-locking plastic plugs securely hold the grate in place
• Designed for wood joist applications using CPE waterproof membranes
• Optional accessories include plumbing connectors, debris strainer, and water-activated LED lighting

Elegant Oil-Rubbed Bronze Finish

The Oil-Rubbed Bronze finish is handcrafted to recreate the naturally aged appearance of traditional bronze. Its rich, warm tones complement bronze fixtures, oil-rubbed hardware, natural stone, wood cabinetry, and earth-tone tile, making it an ideal choice for timeless bathroom designs.

Why Choose a Linear Shower Drain?

Linear shower drains offer greater flexibility than traditional center drains by allowing installation against a wall, at the shower entrance, or in the center of the shower floor. Their design supports a single-direction floor slope, reduces complicated tile cuts, and creates a clean, open appearance that is ideal for curbless showers and modern bathroom renovations.

Installation Notes

This linear shower drain is designed for wood joist shower floor installations using CPE waterproof membranes. Proper waterproofing, accurate drain placement, and the recommended shower floor slope are essential to ensure dependable drainage and long-term performance.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz Linear Wedge 60 Inch Shower Drain in Oil-Rubbed Bronze provides dependable drainage, a clean architectural appearance, and long-lasting performance. Careful planning, proper waterproofing, and accurate installation help create a professional shower system that will perform reliably for years in both residential and commercial applications.
