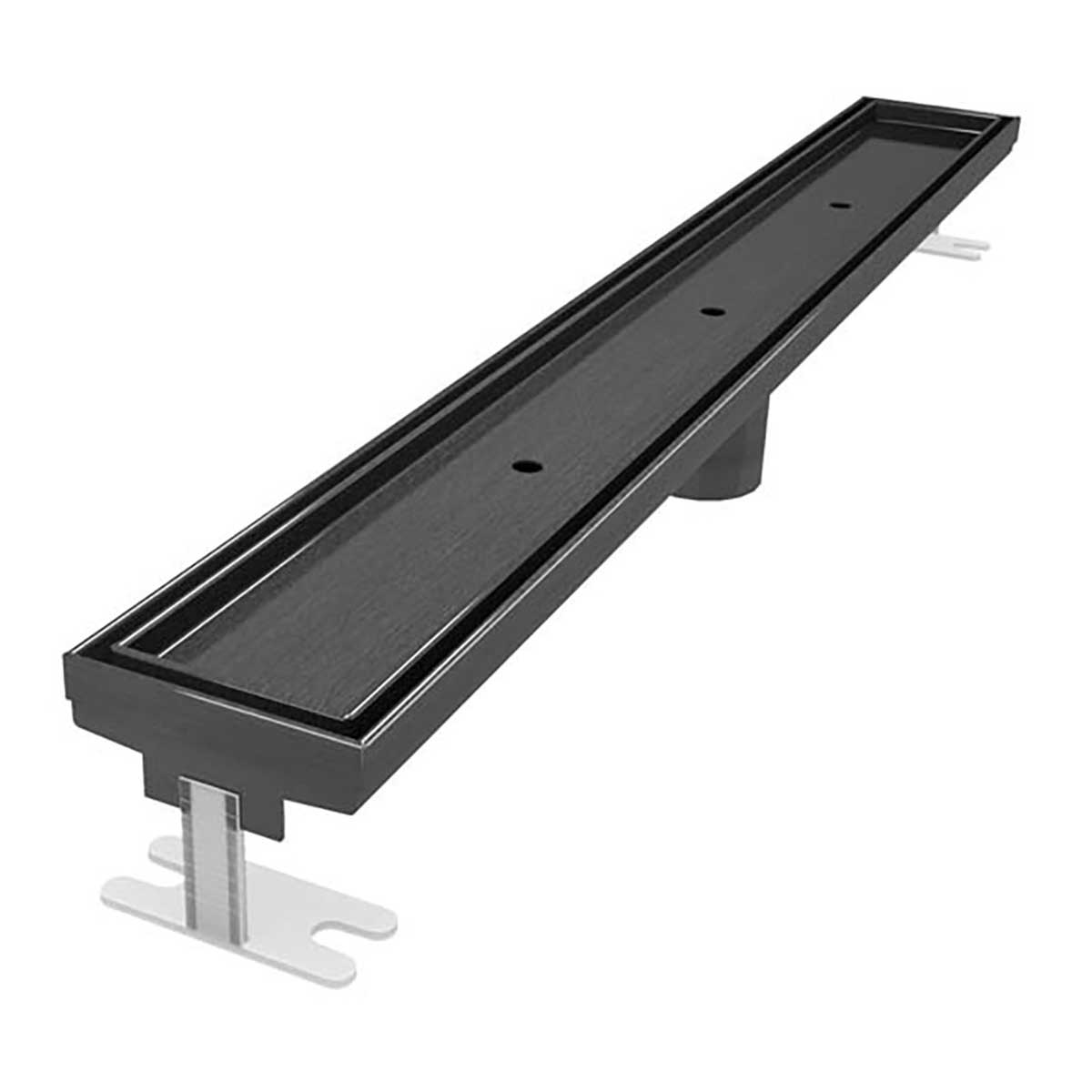

Quartz by ACO Tile Insert Linear Shower Drain with Black Nickel Frame

Quartz by ACO Tile Insert Linear Shower Drain with Black Nickel Frame

Create a seamless shower floor with a premium tile insert linear drain.

The Quartz by ACO Tile Insert Linear Shower Drain is designed to accept the same tile used on your shower floor, creating a clean, nearly invisible drainage solution. The sophisticated Black Nickel frame provides a modern accent around the tile insert, making it an excellent choice for contemporary bathrooms featuring black, titanium, gunmetal, or dark stainless steel fixtures.

Complete Drain Kit Includes

• Stainless steel channel body
• Tile insert grate cover with Black Nickel frame
• Lifting key
• Adjustable installation feet
• Installation hardware

Designed for Wood Joist Installations

This linear shower drain is intended for wood joist applications using a CPE shower pan membrane. Proper installation following the manufacturer's recommendations helps ensure reliable waterproofing and long-term performance.

Available Sizes

• 27.55 in. (700 mm) - Intake: 13.66 sq. in.
• 31.50 in. (800 mm) - Intake: 15.57 sq. in.
• 35.43 in. (900 mm) - Intake: 17.48 sq. in.
• 39.37 in. (1000 mm) - Intake: 19.39 sq. in.
• 47.25 in. (1200 mm) - Intake: 23.20 sq. in.
• 55.12 in. (1400 mm) - Intake: 26.59 sq. in.
• 59.05 in. (1500 mm) - Intake: 27.01 sq. in.

Features

• 2 inch diameter central vertical outlet
• Flow rate: At entrance - 6.3 GPM (0.6 l/s); Against the wall - 9.5 GPM (0.6 l/s)
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet simplify installation
• Durable stainless steel construction designed for long-lasting performance

Modern Black Nickel Finish

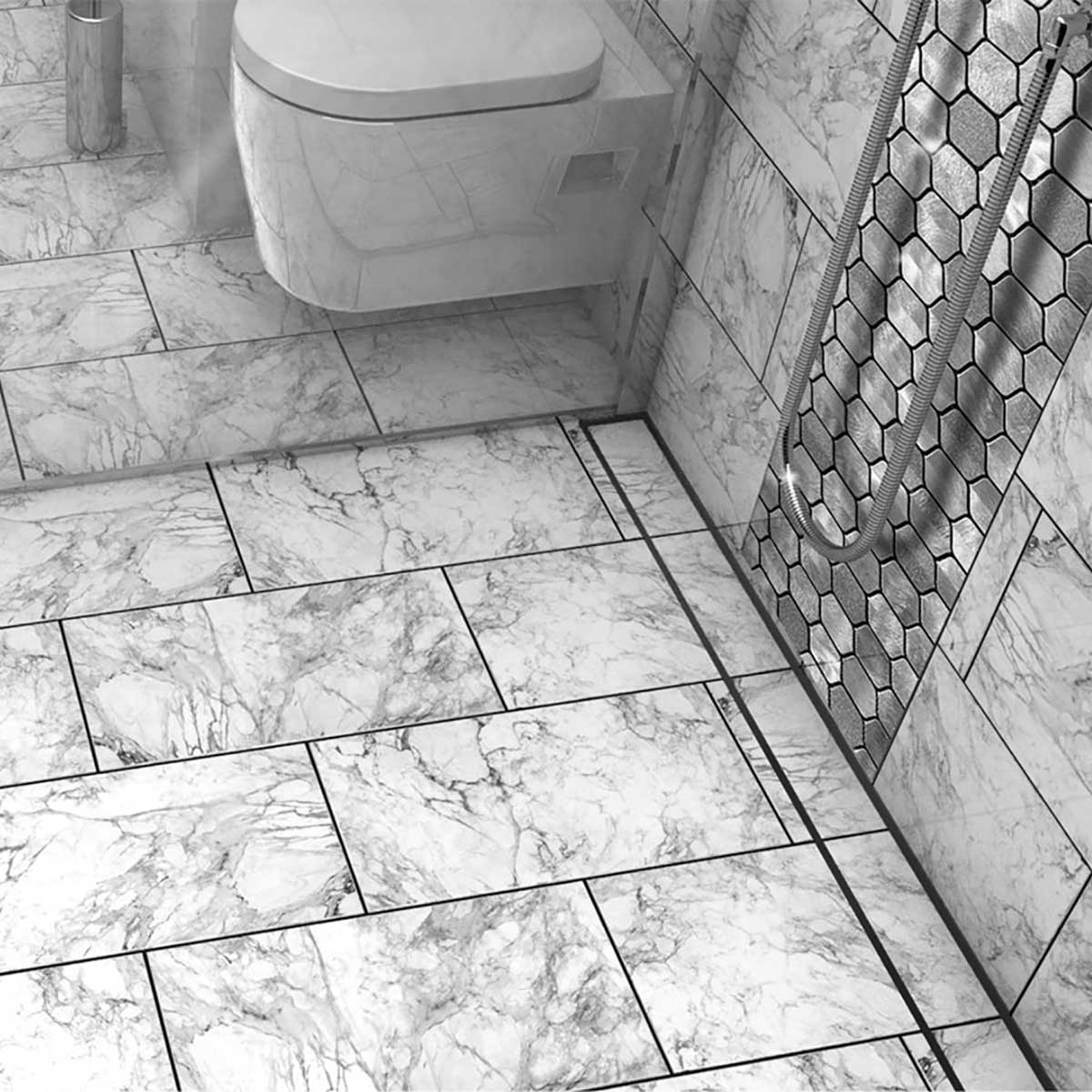

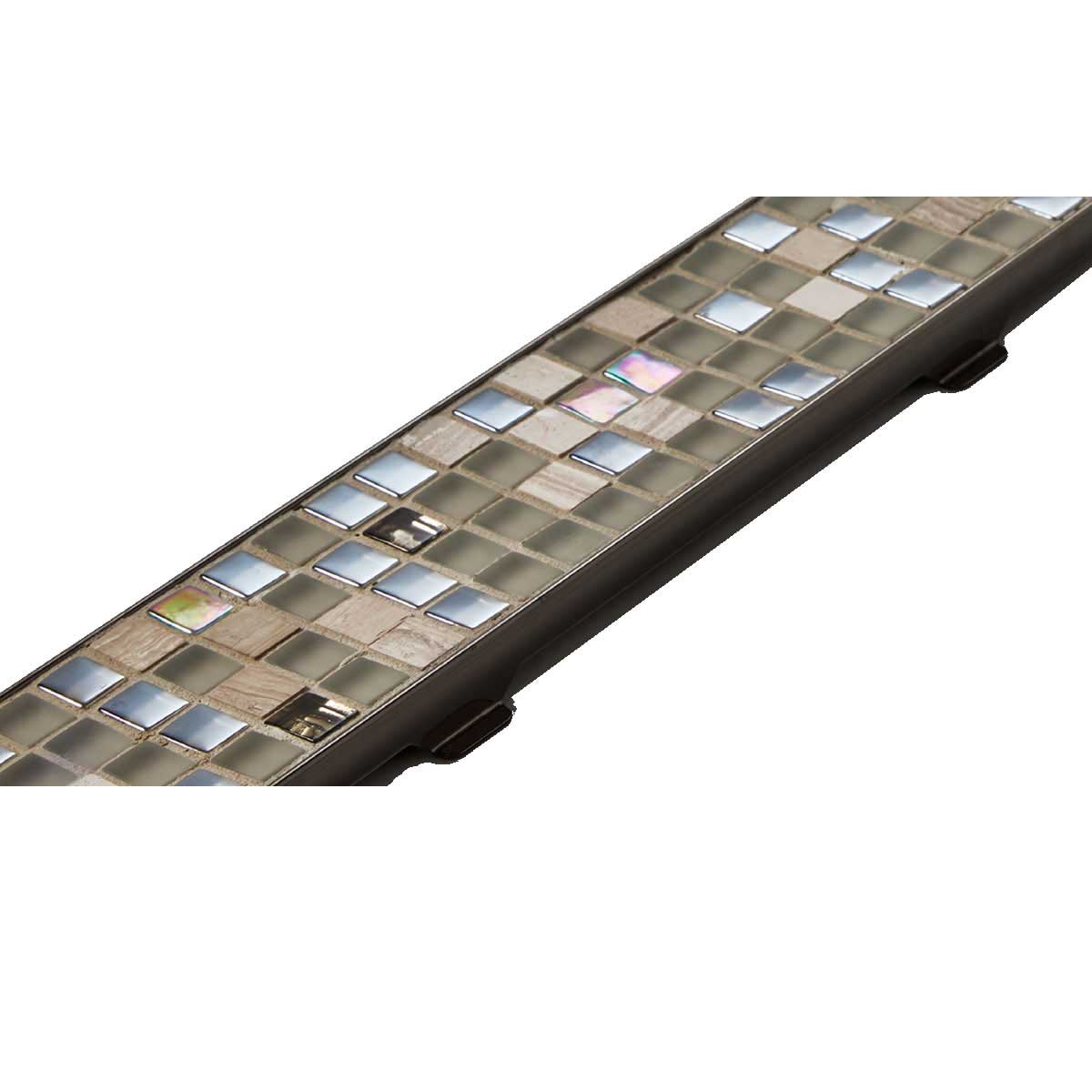

The tile insert grate allows your shower floor tile to continue across the drain, producing a sleek, uninterrupted appearance. The exposed Black Nickel border creates a refined architectural detail while blending beautifully with modern bathroom designs.

The Black Nickel finish offers a rich, reflective dark tone that pairs naturally with black stainless steel, titanium, gunmetal, and other contemporary plumbing fixtures. It delivers a distinctive look without overpowering the surrounding tile.

Benefits of a Linear Shower Drain

Linear shower drains offer greater flexibility than traditional center drains. They can be positioned along a wall, at the shower entrance, or in the center of the shower floor, helping create curbless showers, open-concept bathrooms, and barrier-free wet rooms. This design also simplifies tile installation by eliminating many of the difficult angled cuts required around conventional round drains.

Quartz by ACO linear shower drains are available in standard tile-friendly lengths, making them suitable for a wide variety of residential and commercial shower installations. Their slim profile and premium construction provide dependable drainage while enhancing the overall appearance of the shower.

Manufactured from durable stainless steel, Quartz by ACO shower drains are engineered for years of reliable performance when installed according to the manufacturer's installation instructions.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO Tile Insert Linear Shower Drain with Black Nickel Frame delivers dependable drainage, a clean architectural appearance, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that performs reliably for years in both residential and commercial applications.
