Quartz by ACO Tile Insert Linear Shower Drain with Satin Brass Frame

Quartz by ACO Tile Insert Linear Shower Drain with Satin Brass Frame

Create a seamless shower floor with the elegance of a tile insert linear drain.

The Quartz by ACO Tile Insert Linear Shower Drain allows you to install the same tile used on your shower floor directly into the drain cover, creating a clean, nearly invisible drainage solution. The Satin Brass frame adds a warm architectural accent around the tile insert, making it an excellent choice for modern bathrooms featuring brushed brass, gold, or warm metallic fixtures.

Complete Drain Kit Includes

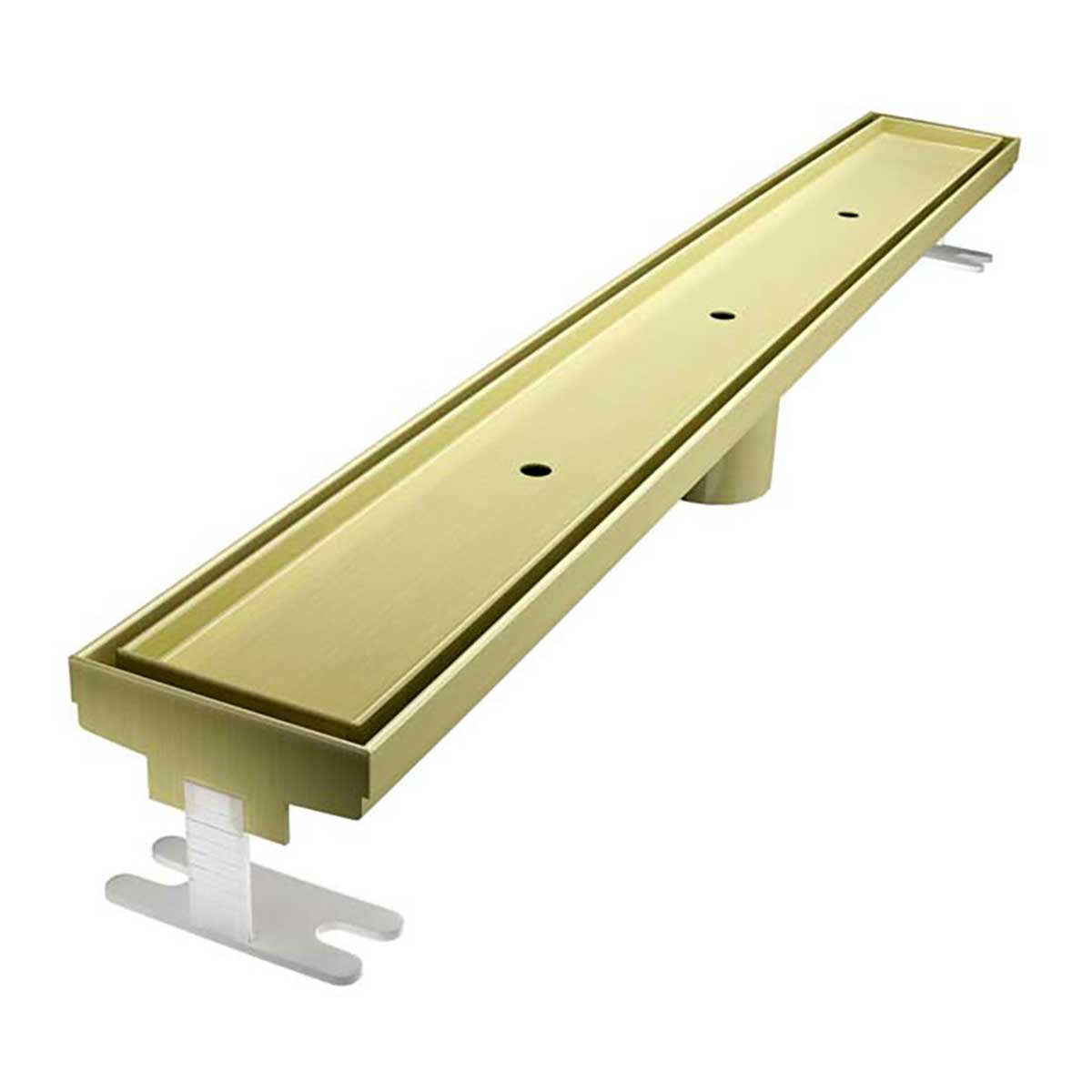

• Stainless steel channel body

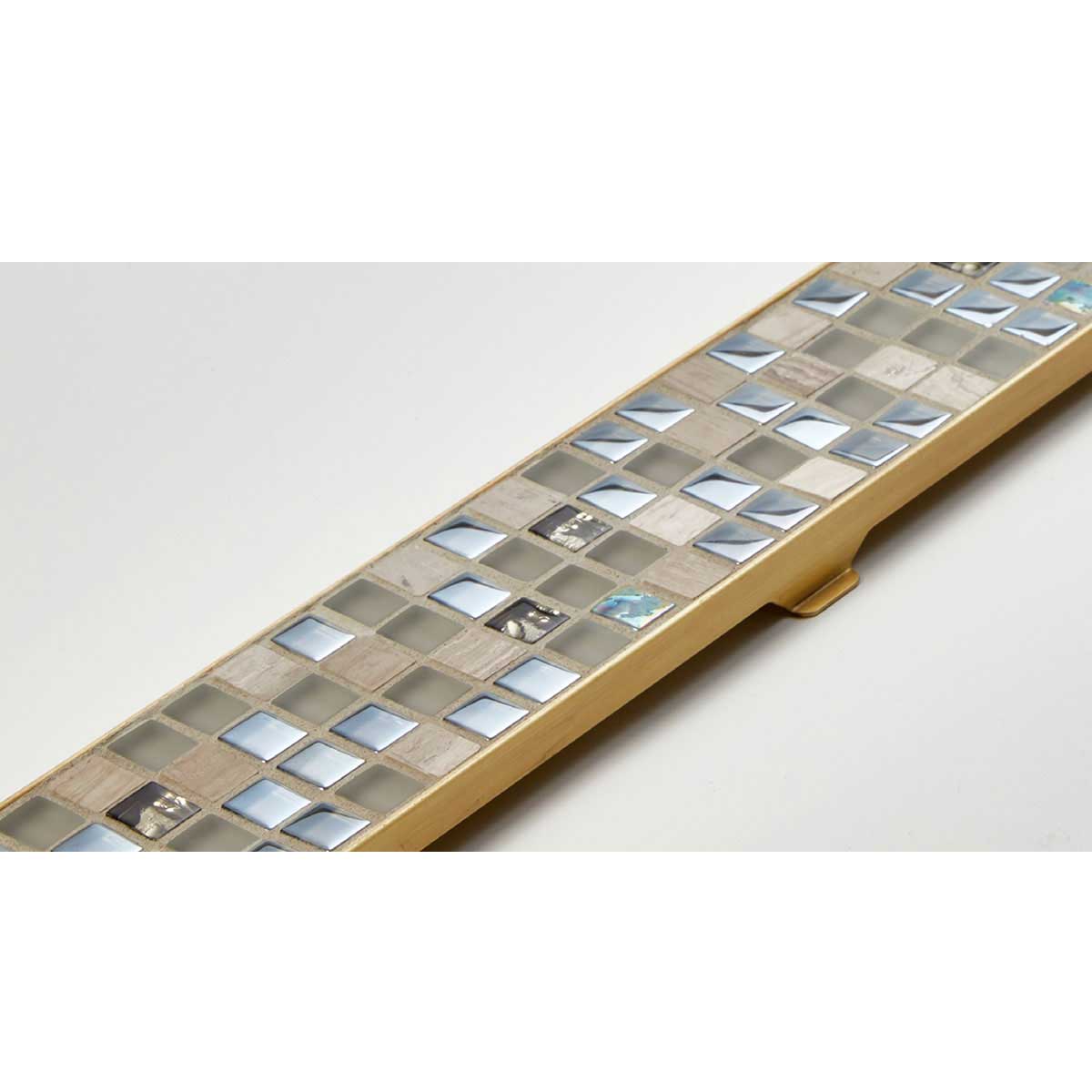

• Tile insert grate cover with Satin Brass frame
• Lifting key
• Adjustable installation feet
• Installation hardware

Designed for Wood Joist Installations

This linear shower drain is intended for wood joist applications using a CPE shower pan membrane. Proper installation according to the manufacturer's recommendations helps provide dependable waterproofing and long-term performance.

Available Sizes

• 27.55 in. (700 mm) - Intake: 13.66 sq. in.
• 31.50 in. (800 mm) - Intake: 15.57 sq. in.
• 35.43 in. (900 mm) - Intake: 17.48 sq. in.
• 39.37 in. (1000 mm) - Intake: 19.39 sq. in.
• 47.25 in. (1200 mm) - Intake: 23.20 sq. in.
• 55.12 in. (1400 mm) - Intake: 26.59 sq. in.
• 59.05 in. (1500 mm) - Intake: 27.01 sq. in.

Features

• 2 inch diameter central vertical outlet
• Flow rate: At entrance - 6.3 GPM (0.6 l/s); Against the wall - 9.5 GPM (0.6 l/s)
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet simplify installation
• Friction-locking plastic plugs securely hold the grate in place
• Optional accessories include plumbing connectors, water-activated LED light, and debris strainer
• Durable stainless steel construction for long-lasting performance

Warm Satin Brass Finish

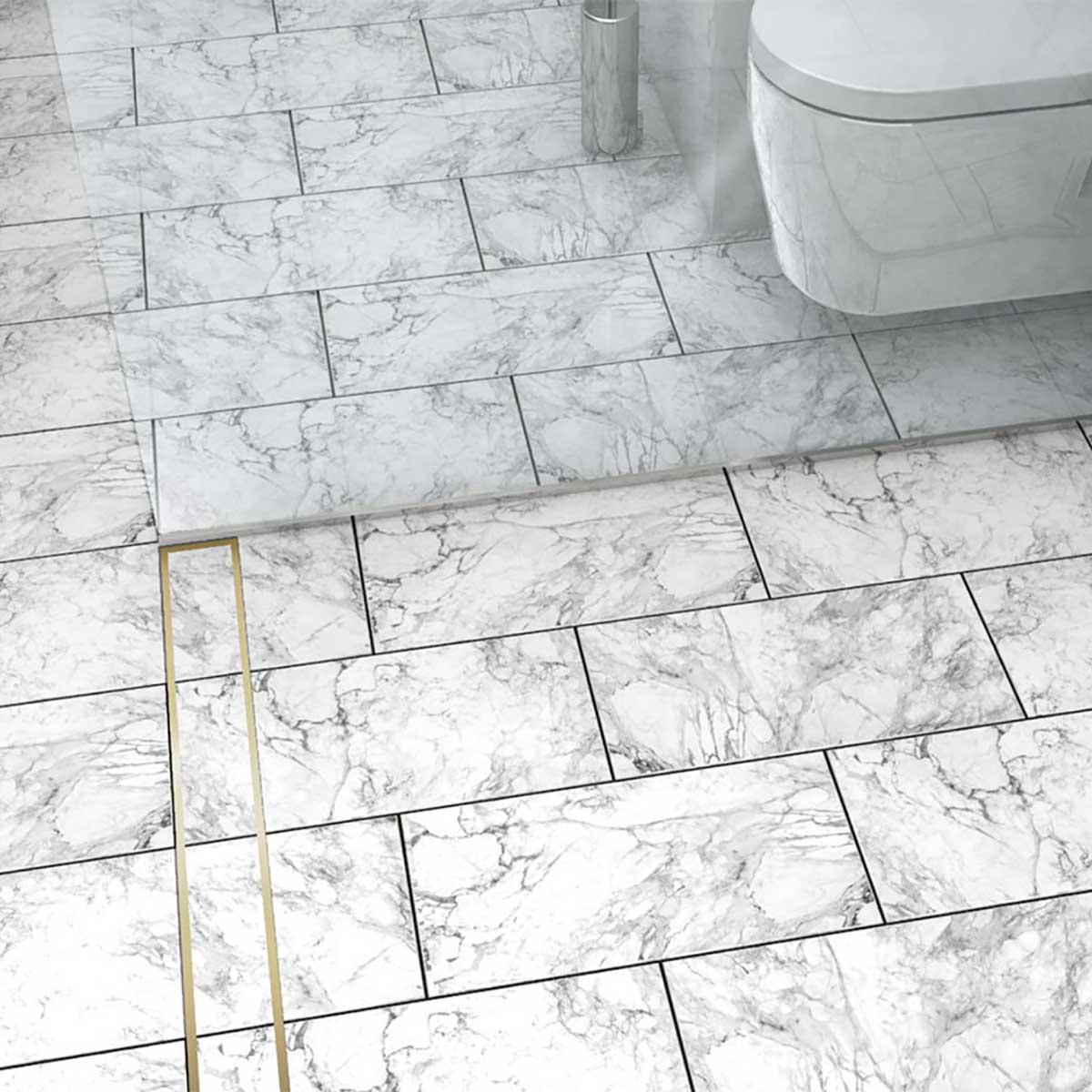

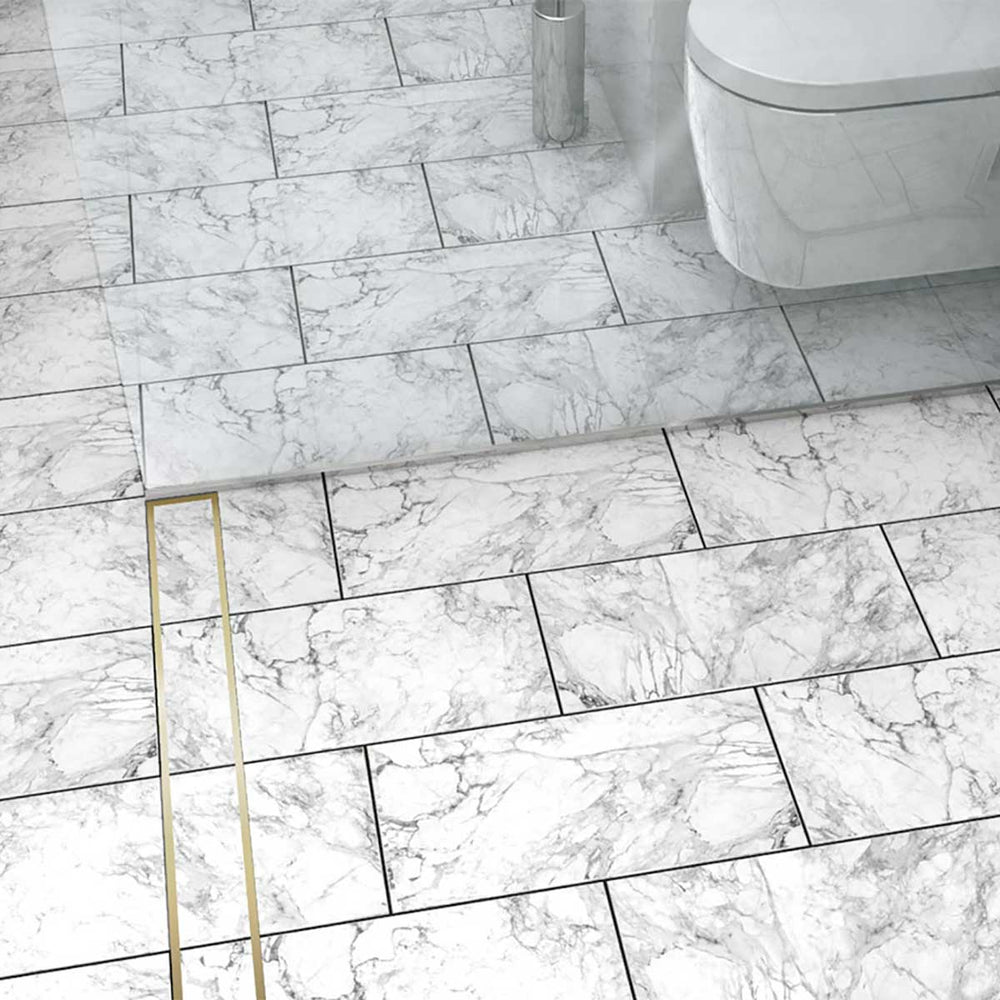

The tile insert grate blends seamlessly with your shower floor, allowing the tile pattern to continue uninterrupted across the drain. The visible Satin Brass border creates a refined decorative accent that complements both traditional and contemporary bathroom designs.

ACO's Satin Brass finish features rich golden tones with a soft brushed appearance that pairs beautifully with brass, brushed gold, champagne bronze, and other warm metallic fixtures. Its versatile finish coordinates equally well with light or dark tile selections.

Advantages of a Linear Shower Drain

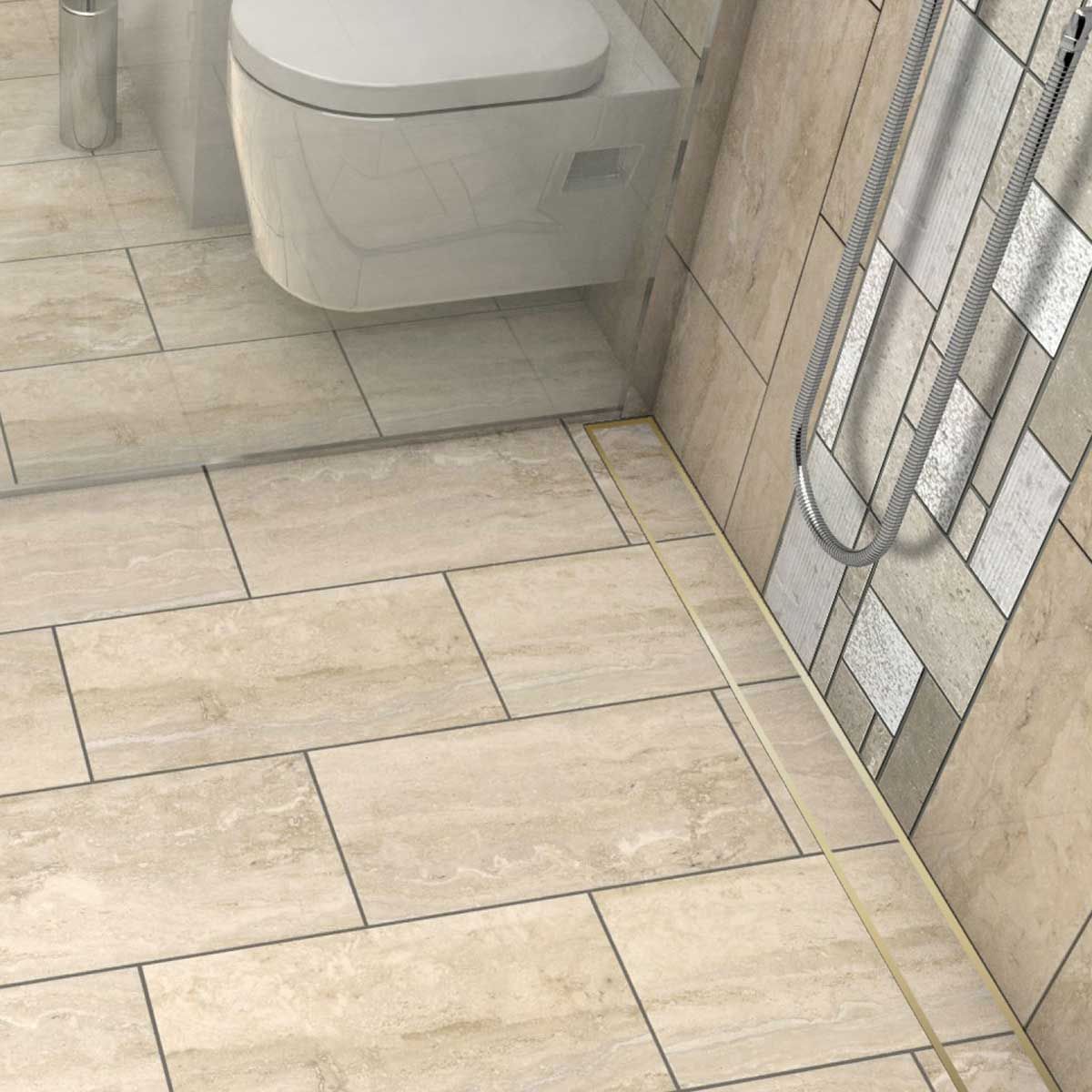

Unlike traditional center drains, a linear shower drain provides greater flexibility during shower design. It can be positioned along a wall, at the shower entrance, or in the center of the shower floor, making it ideal for curbless showers, wet rooms, and open-concept bathroom layouts. The linear design also reduces complicated tile cuts, creating a cleaner and more professional finished appearance.

Quartz by ACO linear shower drains are manufactured in standard tile-friendly lengths, making them suitable for a wide range of residential and commercial shower installations. Their slim profile, premium construction, and efficient drainage combine modern aesthetics with dependable everyday performance.

Manufactured from durable stainless steel, Quartz by ACO shower drains are designed to provide years of reliable service when installed according to the manufacturer's installation instructions.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO Tile Insert Linear Shower Drain with Satin Brass Frame delivers dependable drainage, a clean architectural appearance, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that performs reliably for years in both residential and commercial applications.
