Raimondi ONLY-ONE Large Format Tile Installation Assist Device - TCLFWKEM
The Raimondi ONLY-ONE is an innovative installation assist device designed to simplify the handling and installation of large format porcelain panels, gauged porcelain tiles, and stone slabs. It allows a single installer to safely transport, support, back butter, and accurately position large tiles, improving productivity while reducing physical strain on the jobsite.

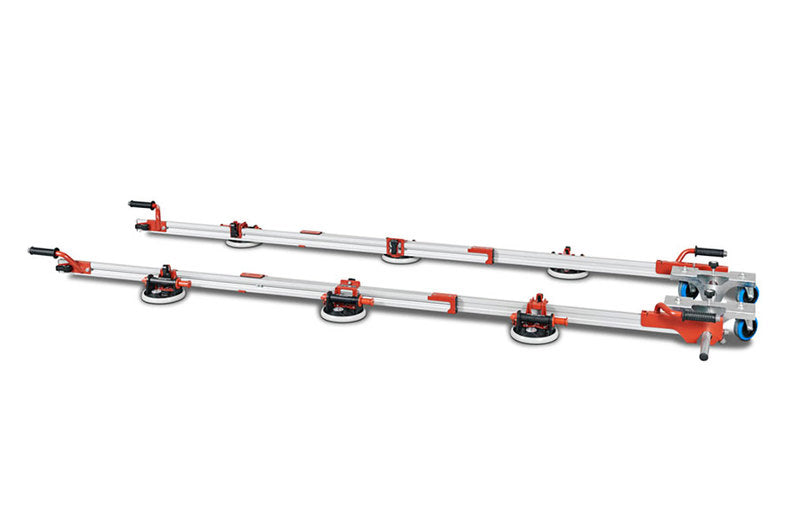

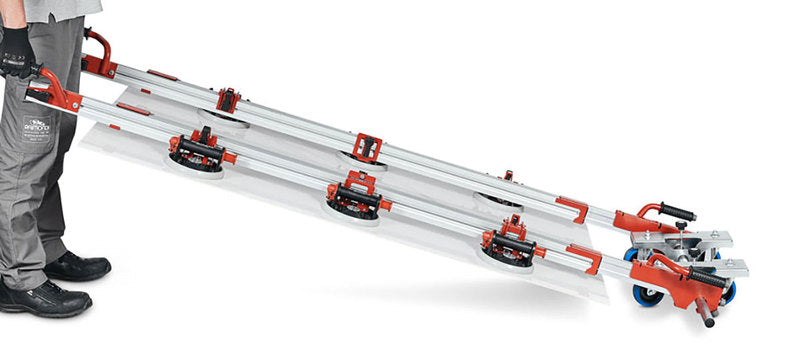

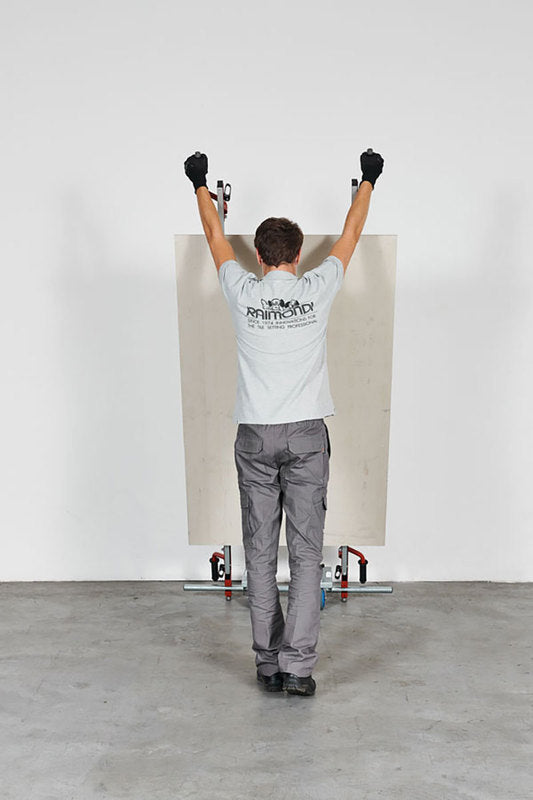

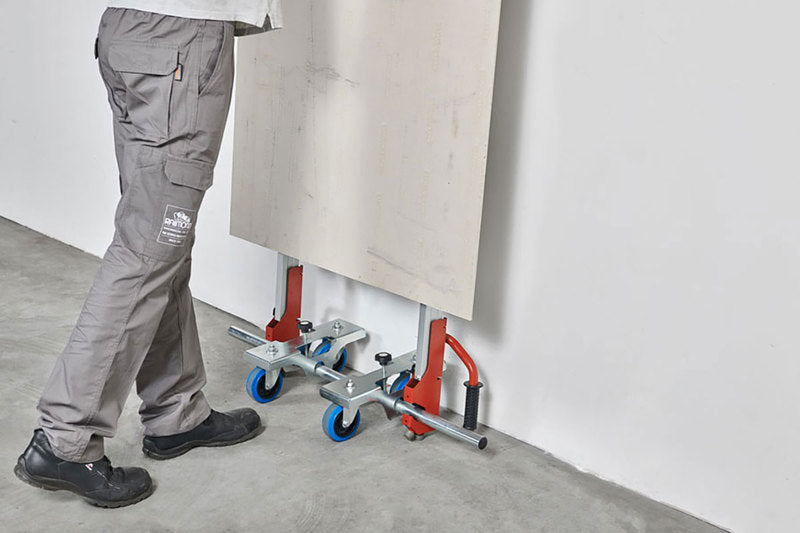

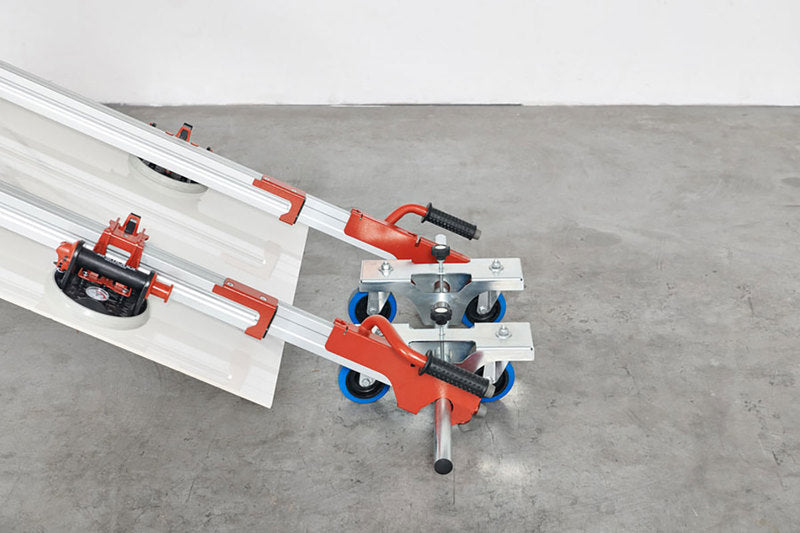

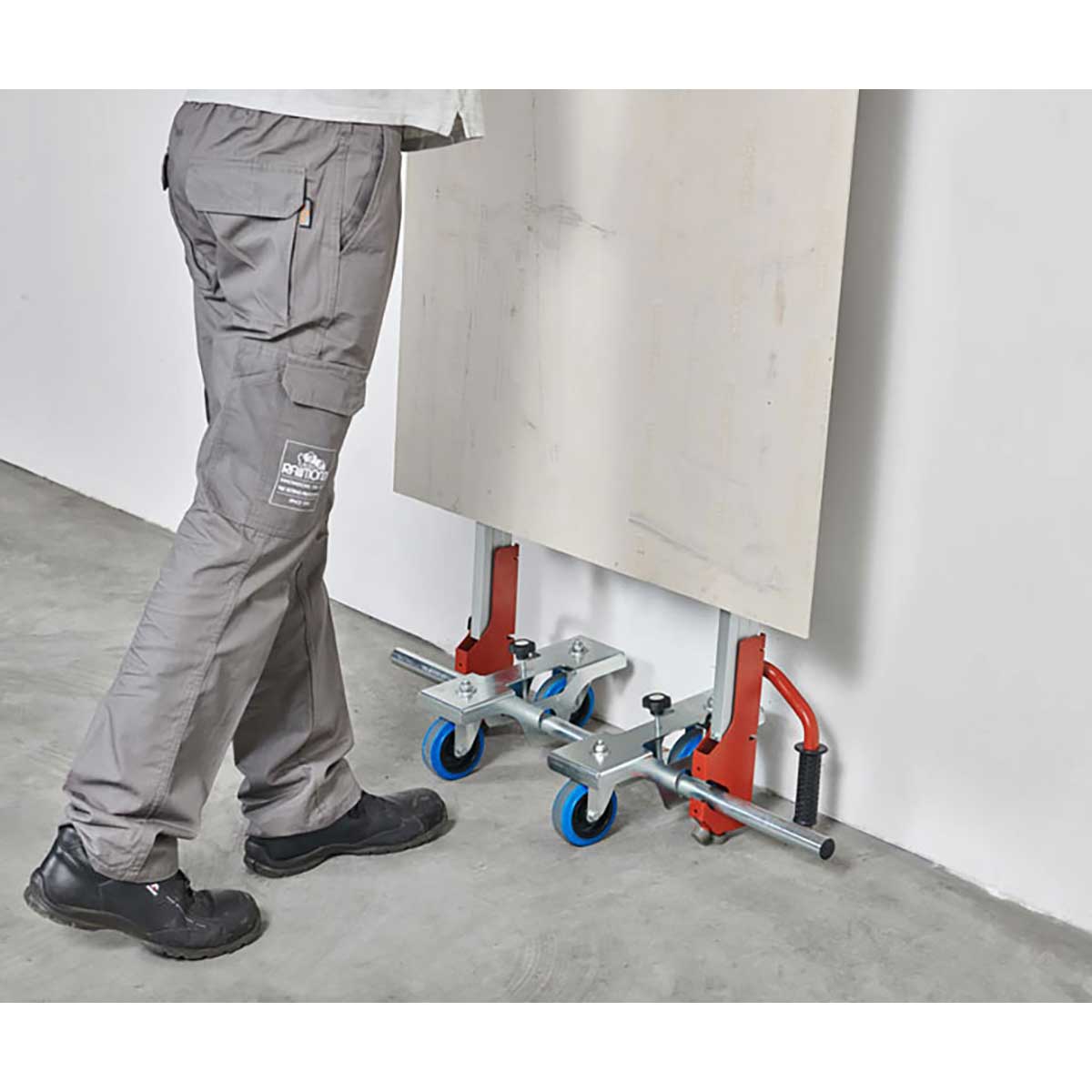

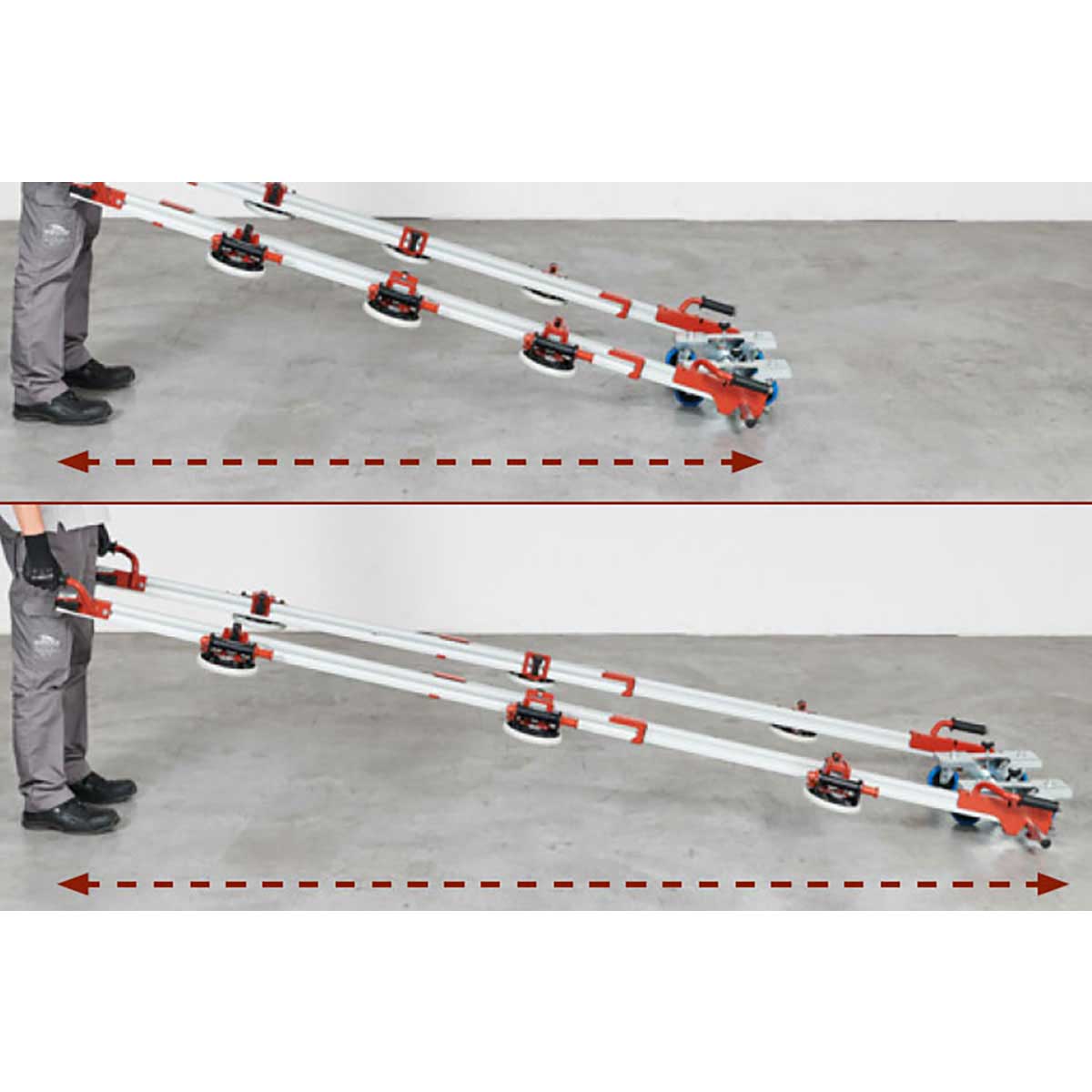

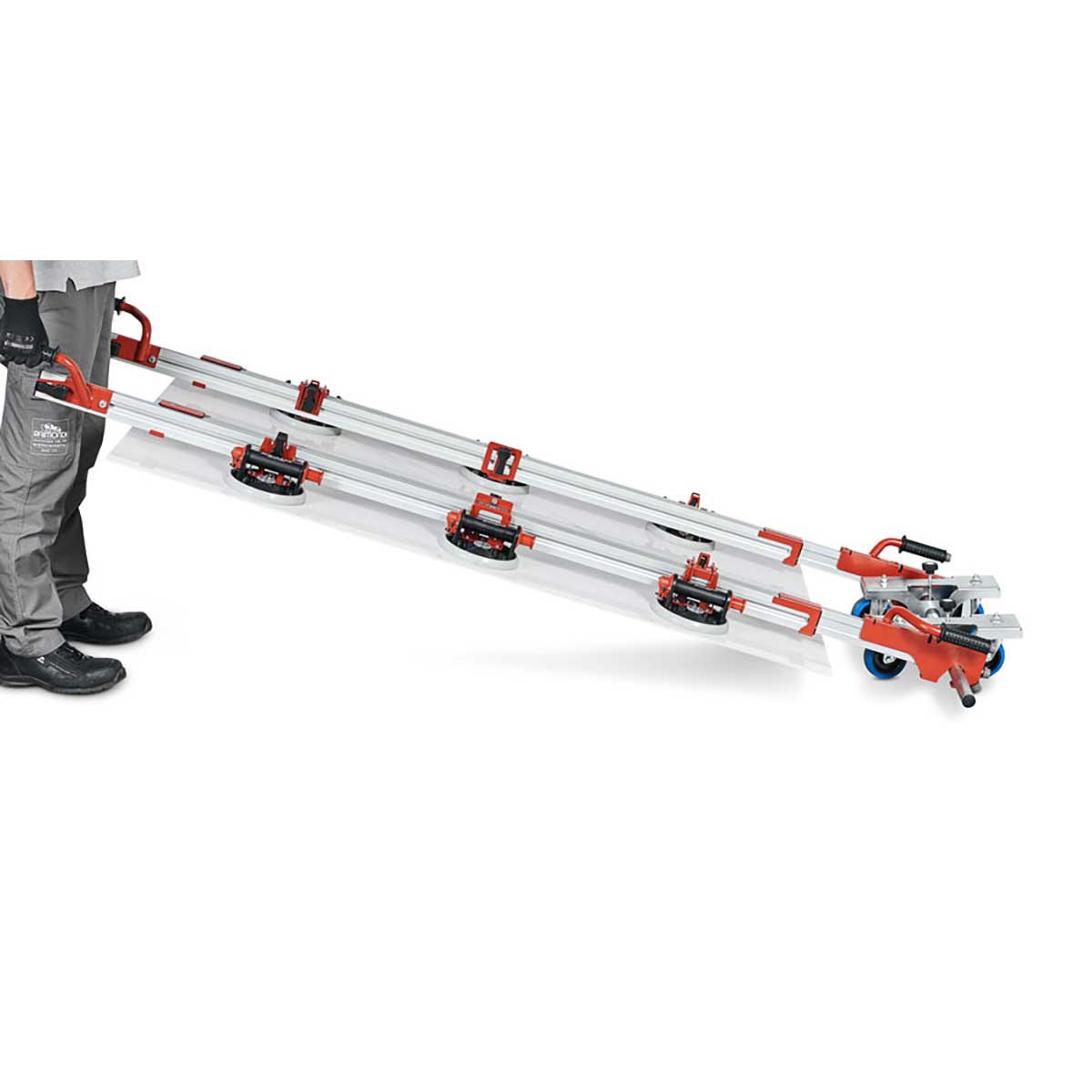

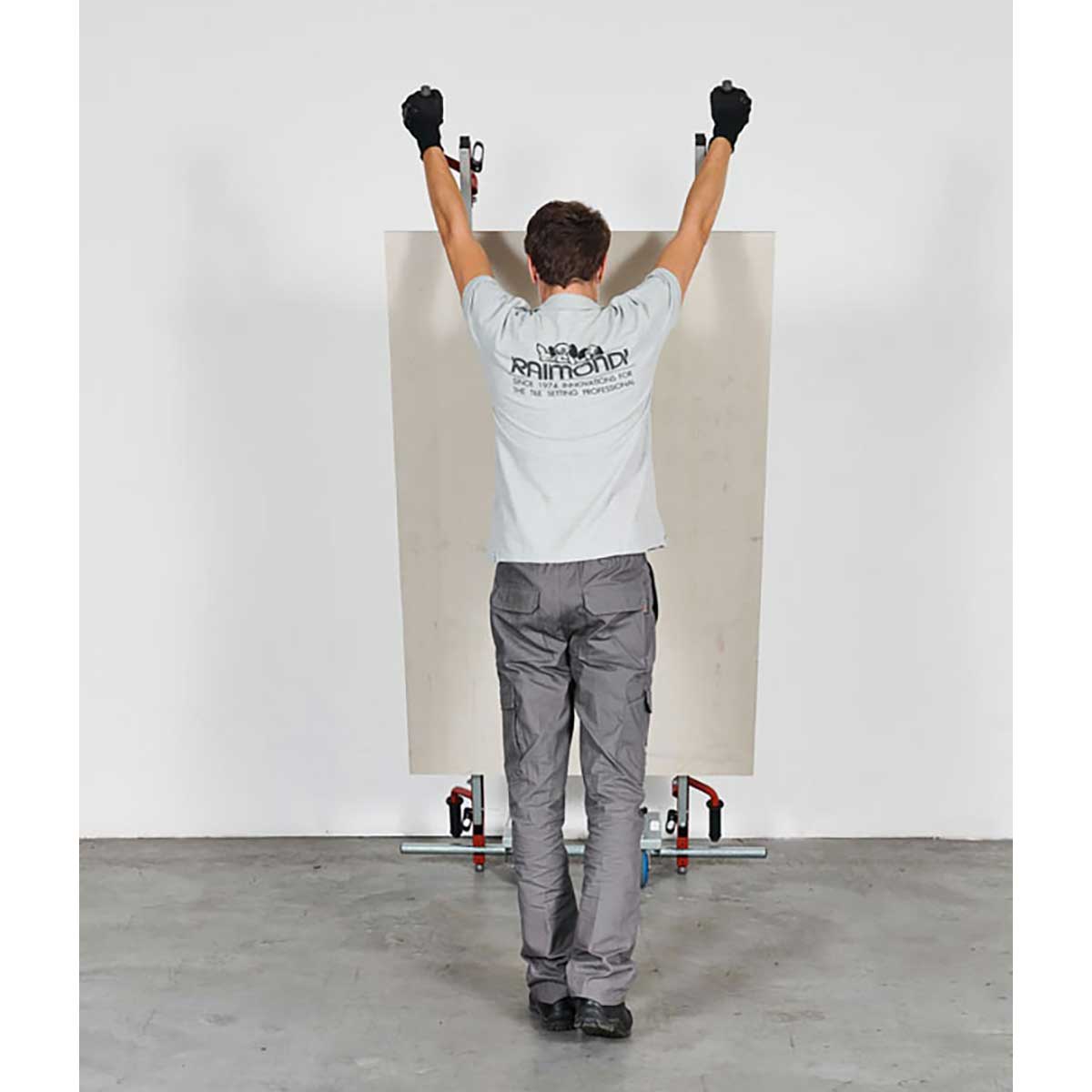

When used with compatible Raimondi EASY-MOVE transport systems, the ONLY-ONE provides excellent stability throughout the installation process. For tiles up to 59" x 59" (150 x 150 cm), a single operator can lift the tile from the floor, move it to the installation area, apply mortar to the back of the tile, and position it alongside previously installed tiles. For even larger panels, the device provides valuable support during handling and placement.

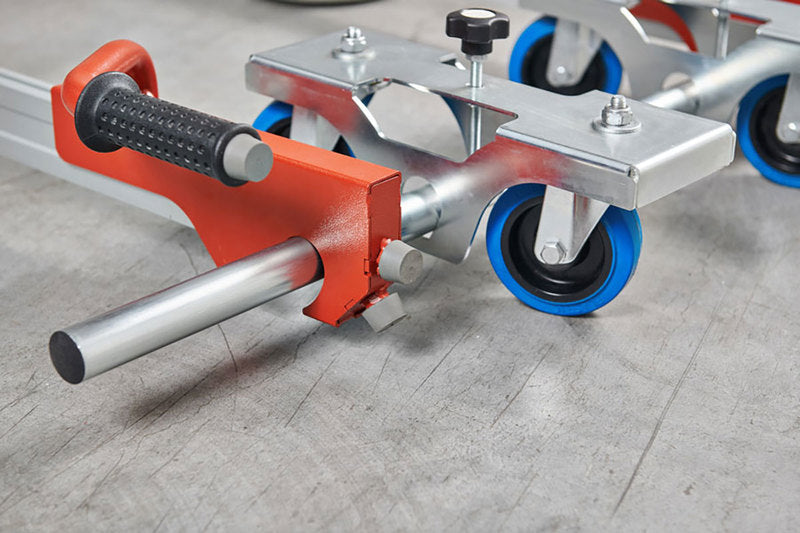

The adjustable four-wheel cart accommodates a variety of tile sizes, while the ergonomic quick-coupling handles feature anti-slip rubber pads for secure handling during back buttering and installation.
ONLY-ONE Includes

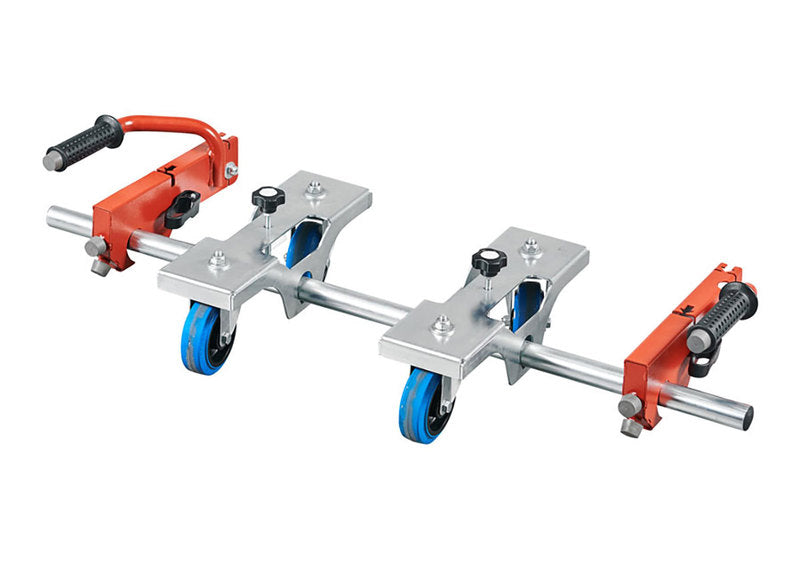

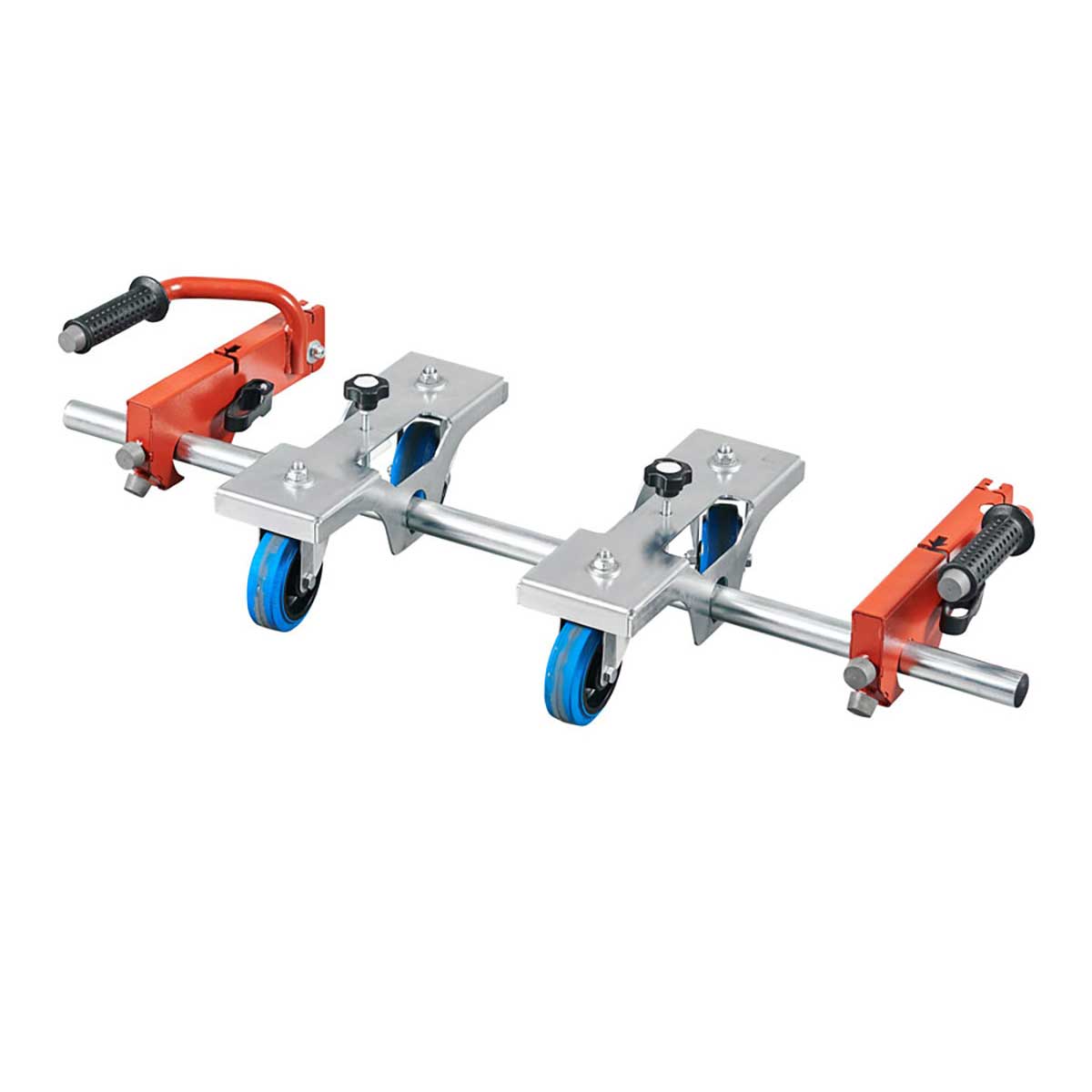

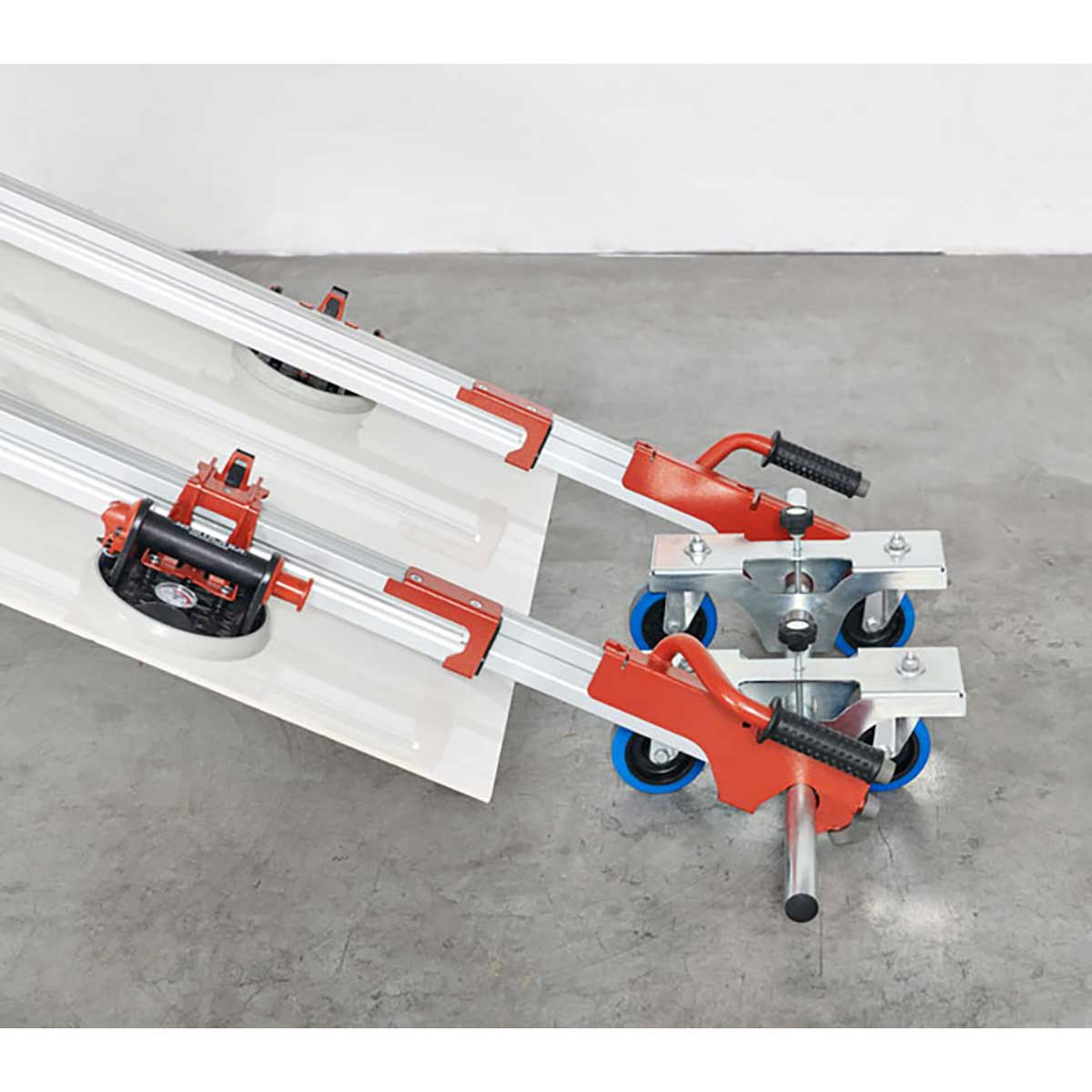

- Cart with four swiveling wheels that can be repositioned to match different tile sizes.
- Two ergonomic handles with a quick-coupling system designed for EASY-MOVE 150, EASY-MOVE MkIV, and EASY-MOVE MkIII profiles.

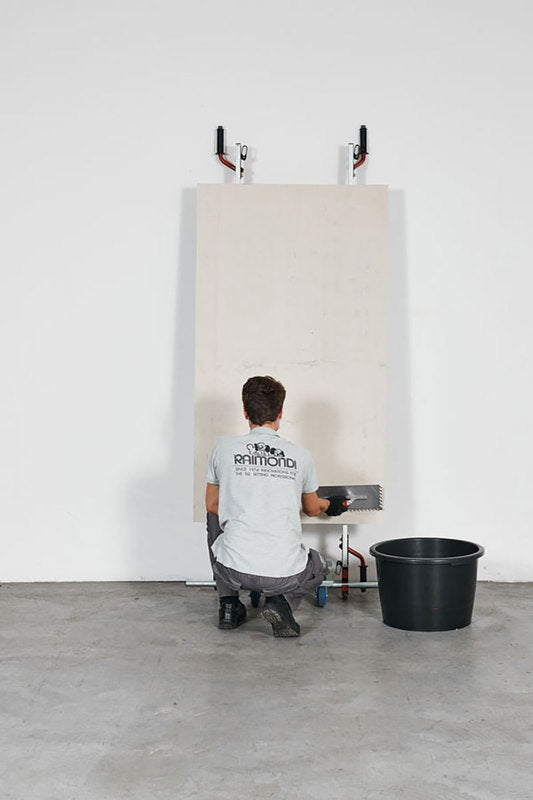

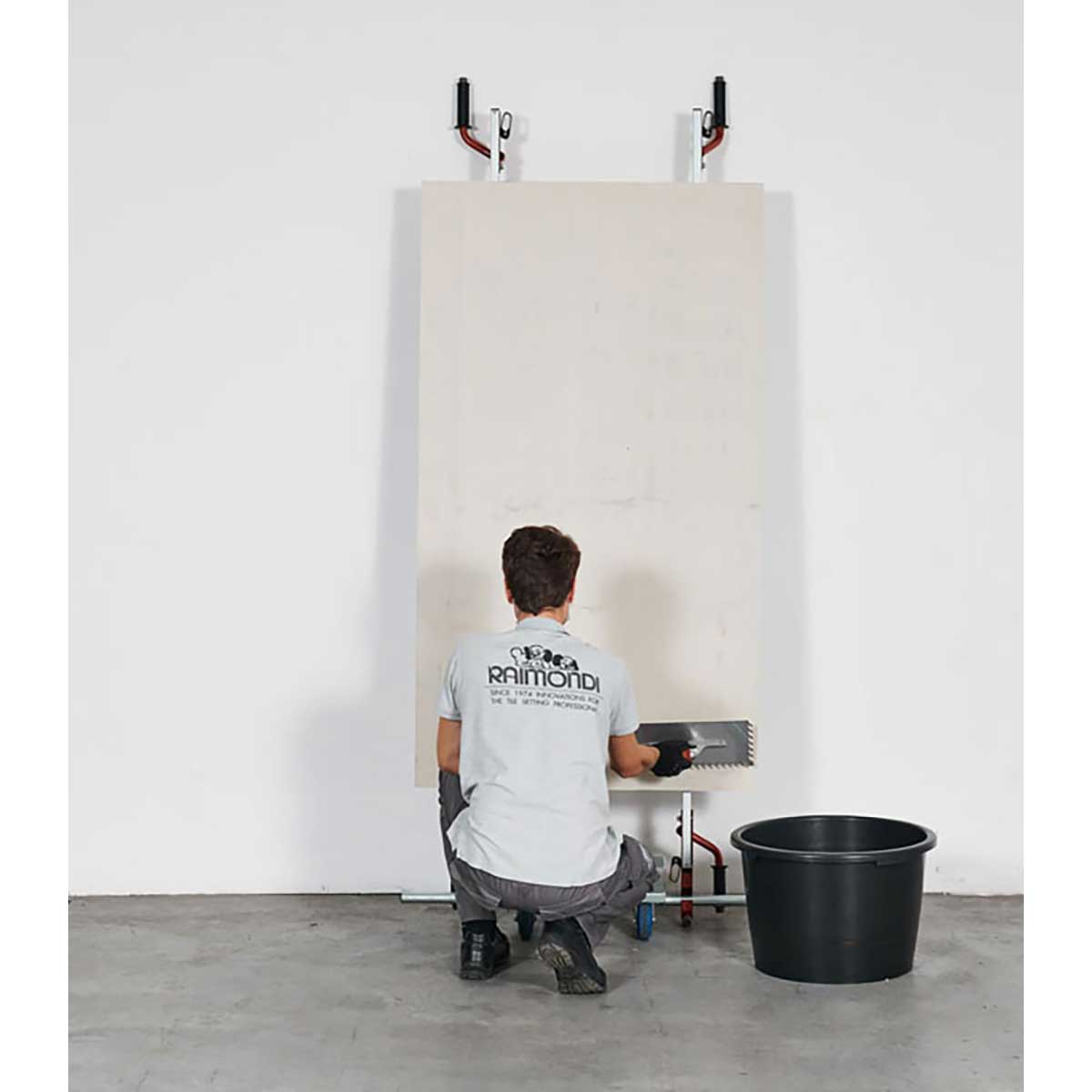

- Anti-slip rubber pads for secure support while back buttering large format tiles.
Features
- Designed to assist with the installation of large format porcelain tiles and slabs.
- Allows a single installer to transport and position tiles up to 59" x 59" (150 x 150 cm).
- Provides excellent support when handling larger format panels during installation.
- Ideal for transporting, back buttering, and accurately positioning large tiles.
- Compatible with tile thicknesses from 1/8" to 3/4" (3 mm to 20 mm).

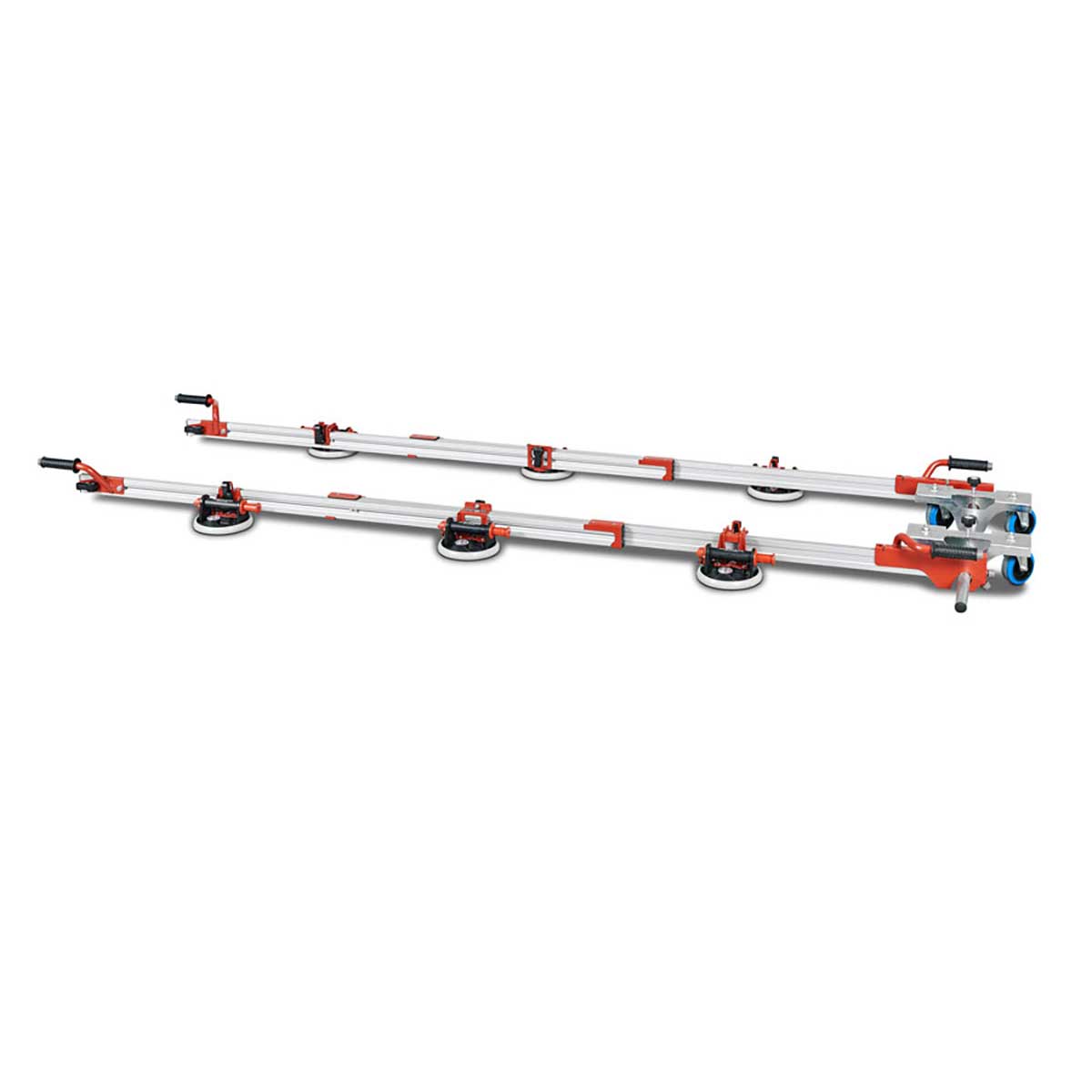

- Compatible with Raimondi EASY-MOVE Full Frame, EASY-MOVE Bars, EASY-MOVE 150, EASY-MOVE MkIV, and EASY-MOVE MkIII systems.

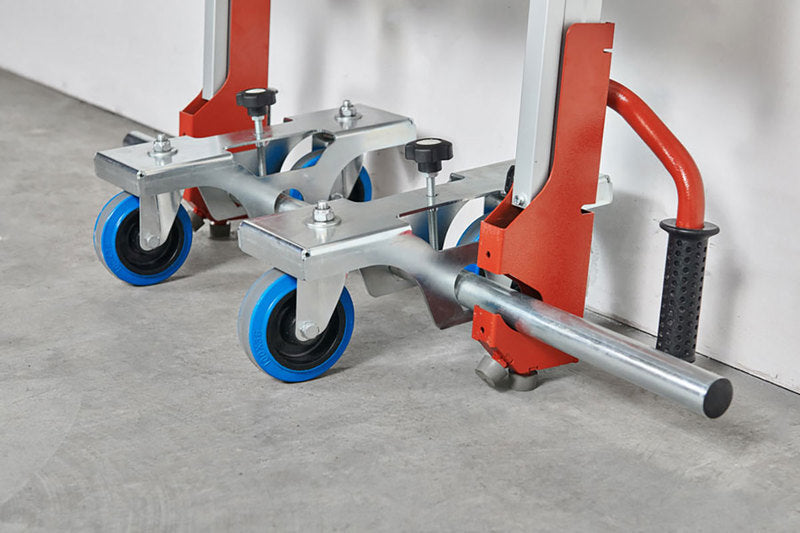

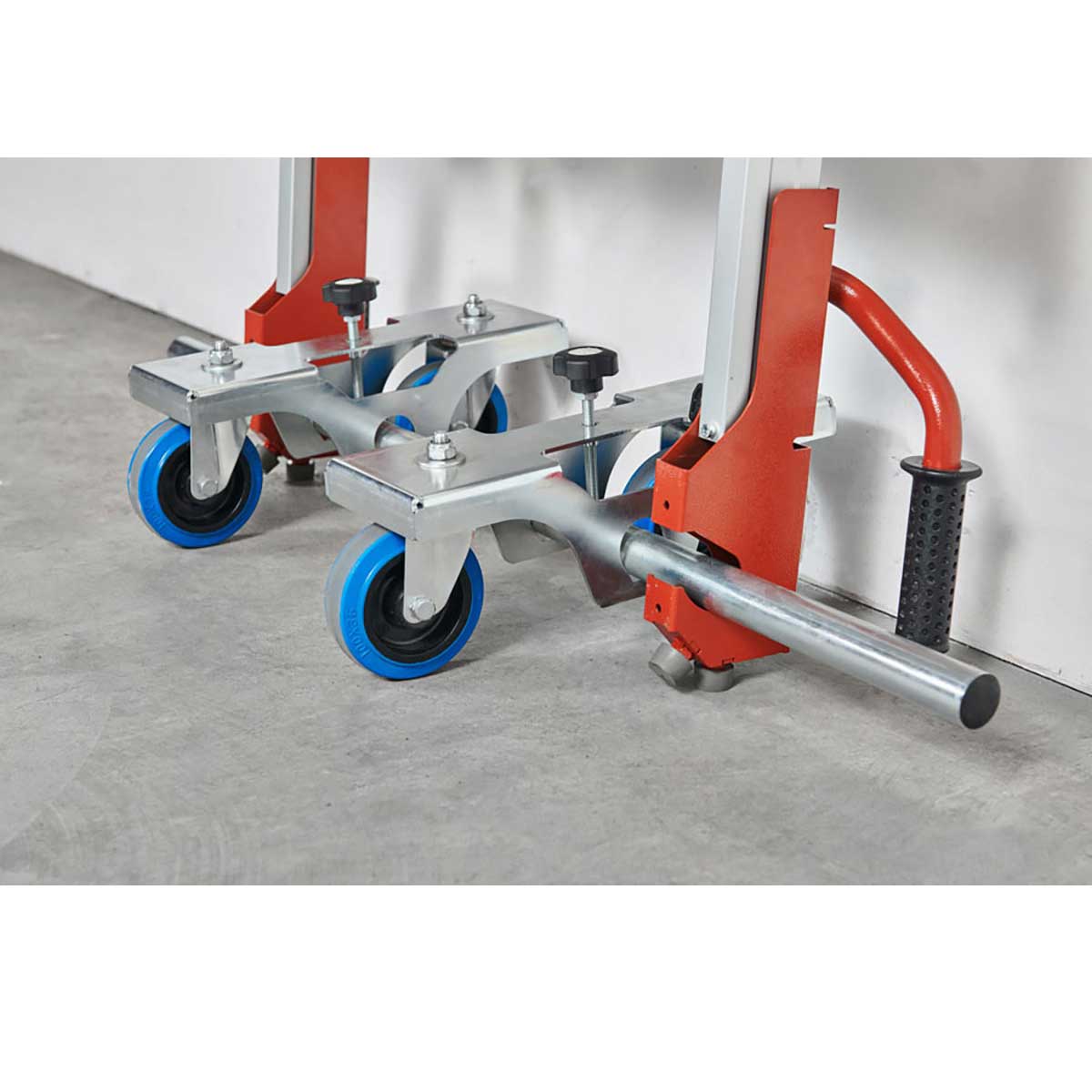

- Four adjustable swiveling wheels accommodate a variety of large tile sizes.

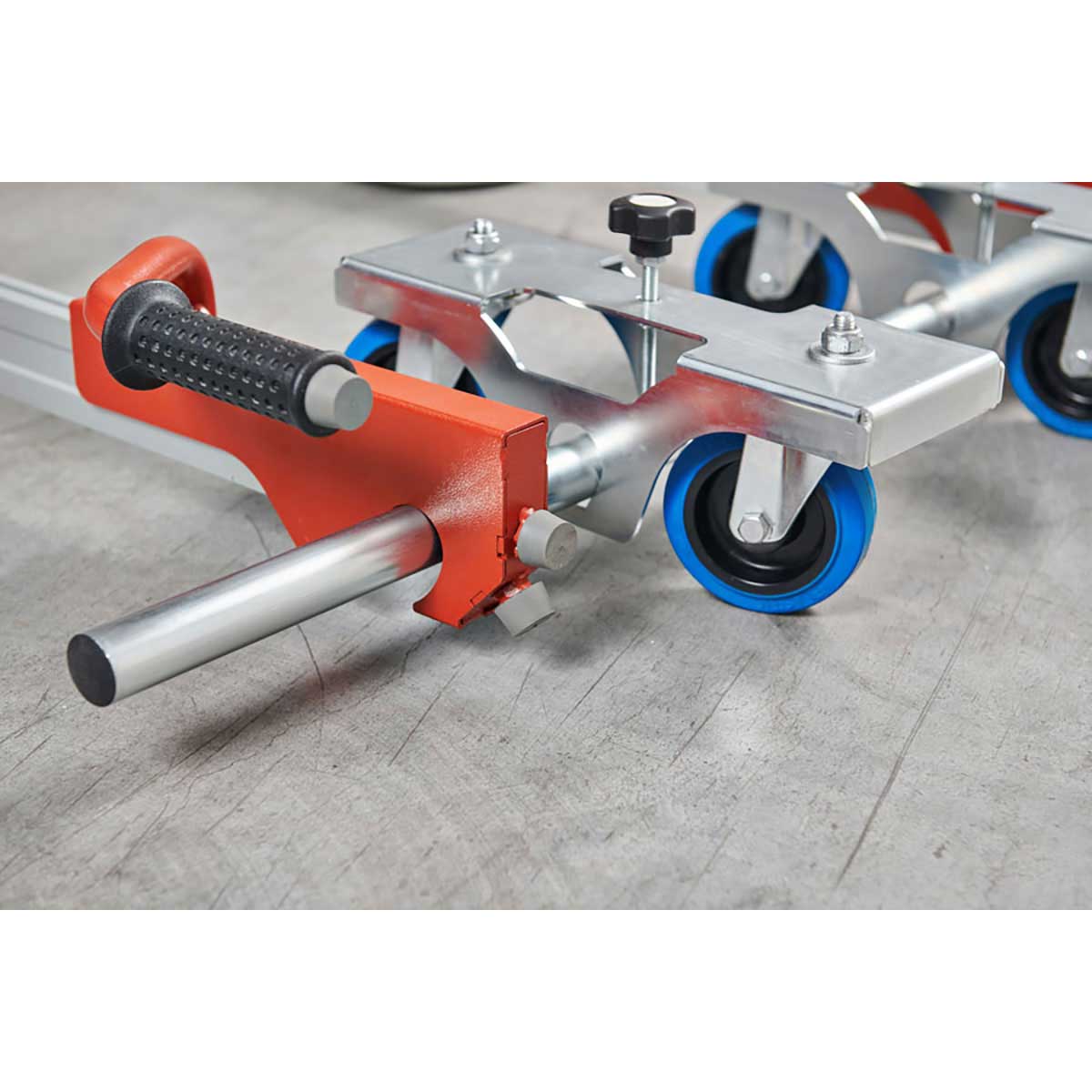

- Ergonomic handles feature a quick-coupling system for fast attachment and removal.
- Anti-slip rubber pads help stabilize tiles during installation.
Specifications
- Model: TCLFWKEM
- Maximum Recommended Tile Size for Single Operator: 59" x 59" (150 x 150 cm)
- Compatible Tile Thickness: 1/8" to 3/4" (3 mm to 20 mm)
- Compatible Systems: EASY-MOVE Full Frame, EASY-MOVE Bars, EASY-MOVE 150, EASY-MOVE MkIV, EASY-MOVE MkIII
- Wheel Configuration: Four adjustable swiveling wheels
- Unit Net Weight: 19.6 lbs
The Raimondi ONLY-ONE is an excellent solution for professional tile installers working with large format porcelain panels, gauged porcelain tile, ceramic slabs, and natural stone, helping improve installation efficiency while maintaining better control throughout the handling process.
