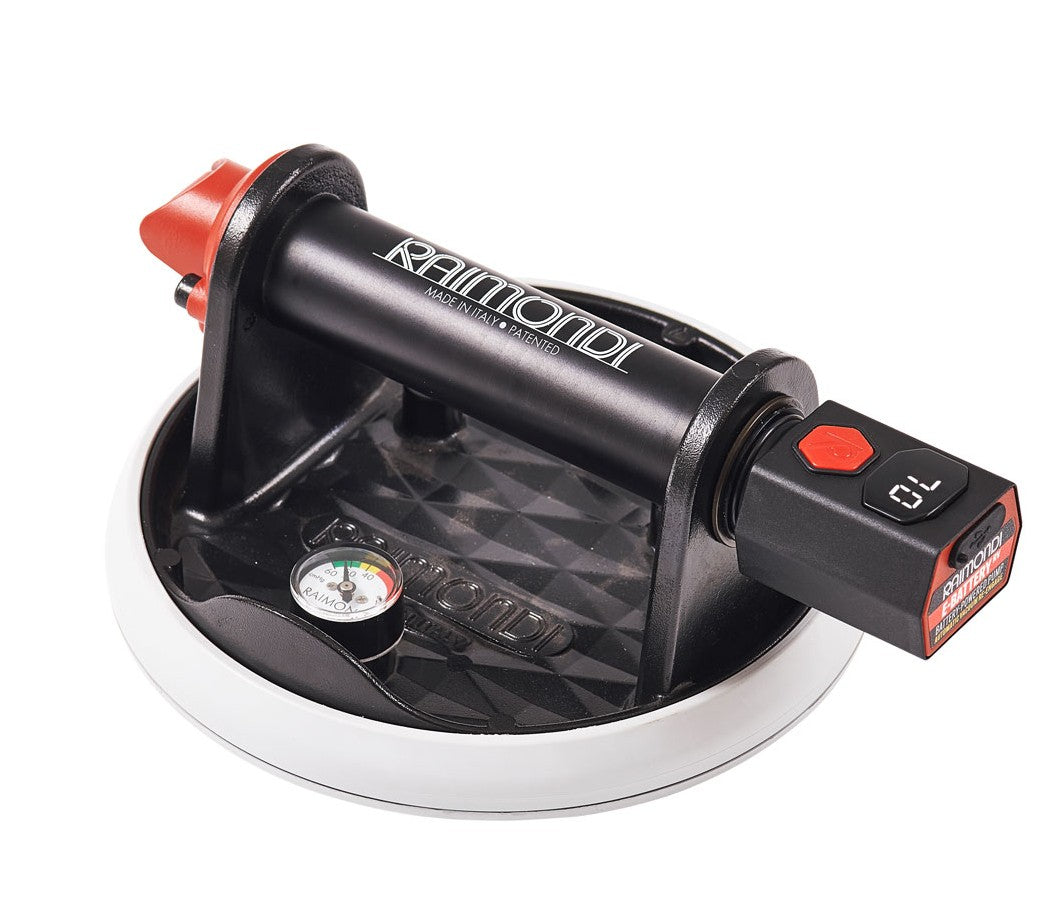

Raimondi RV BATTERY+ Professional Battery Vacuum Suction Cup - LTVSCGNBAT

Raimondi RV BATTERY+ Professional Battery Vacuum Suction Cup - LTVSCGNBAT

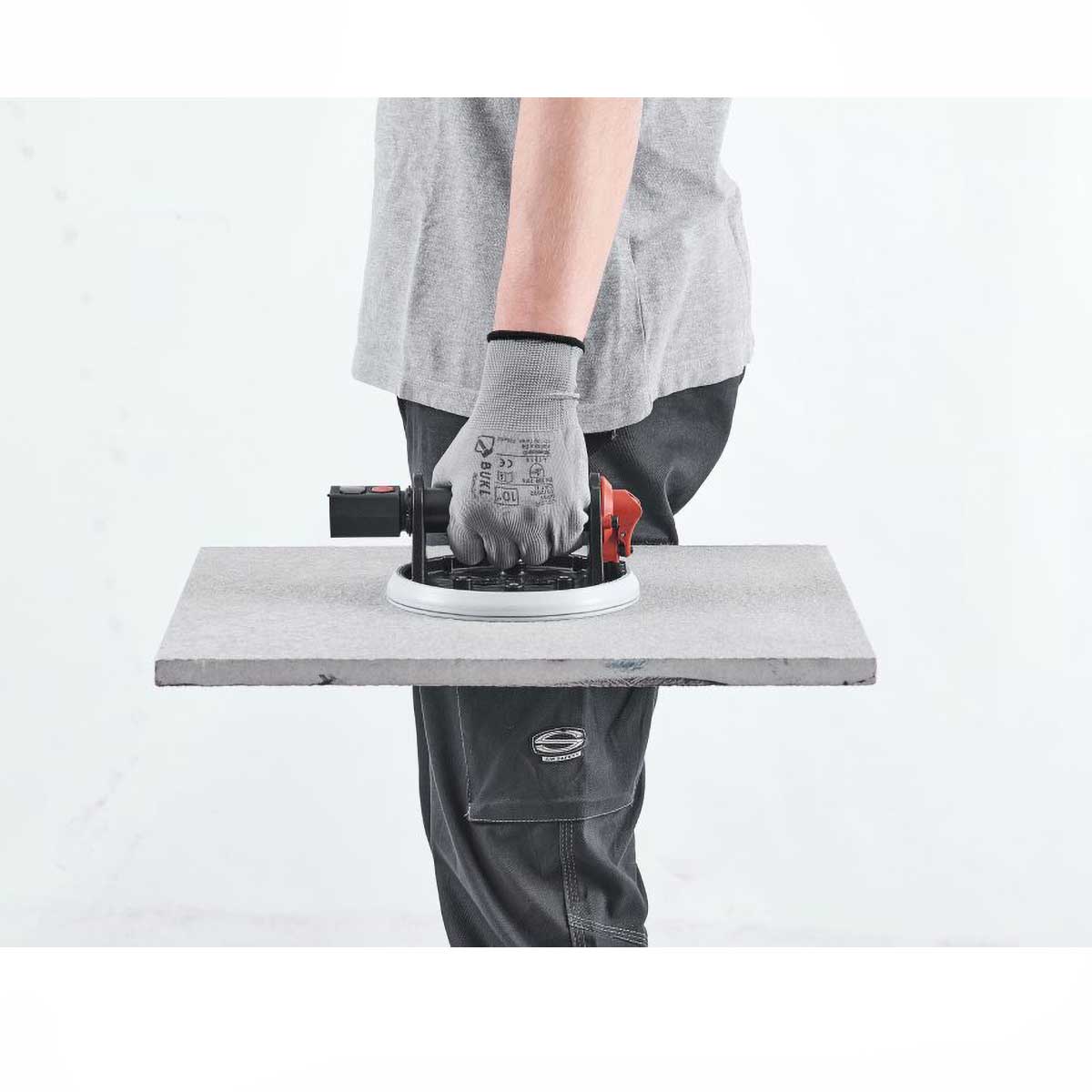

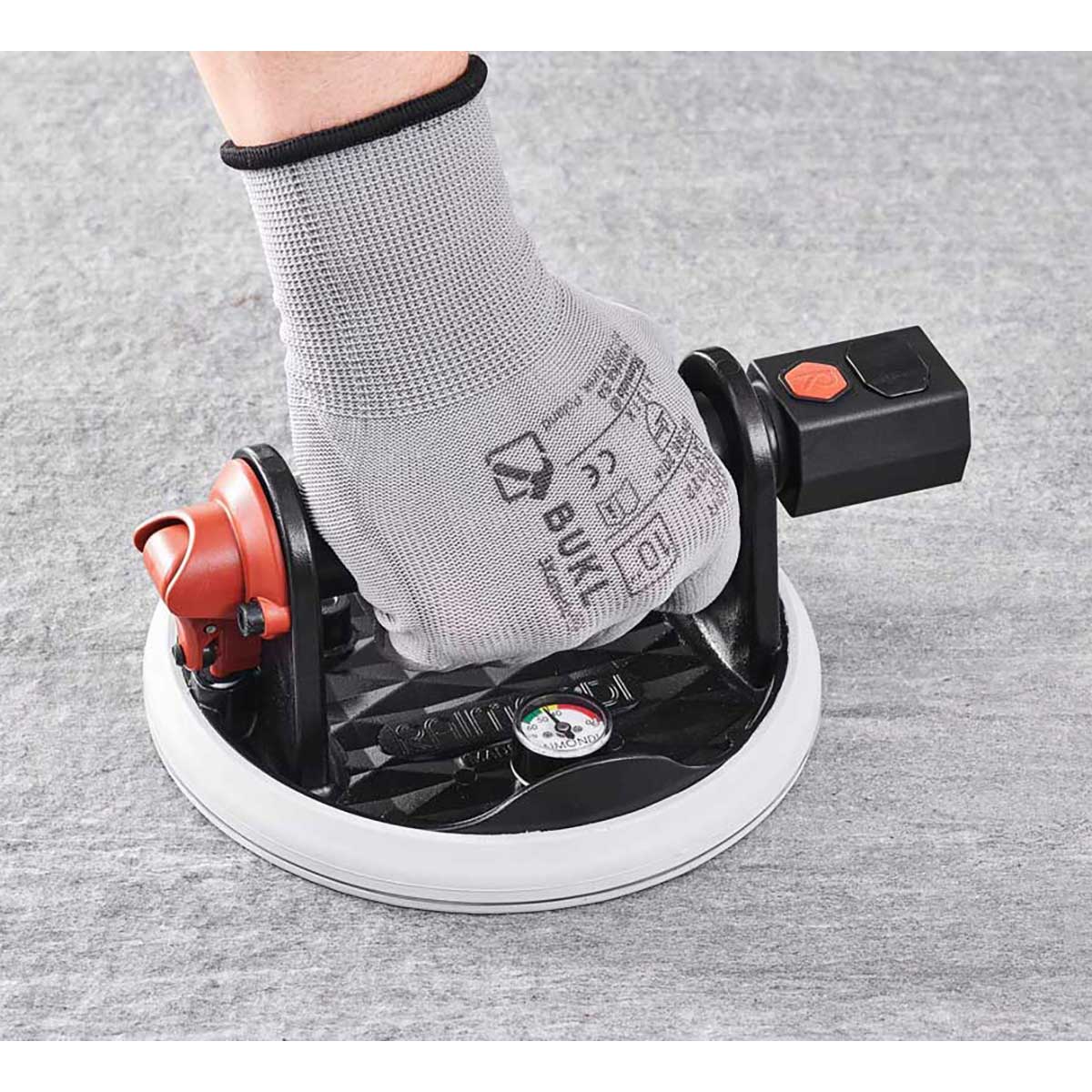

The Raimondi RV BATTERY+ is the next generation of professional vacuum suction cups, designed for safely lifting and handling large format porcelain tiles, ceramic panels, stone slabs, glass, granite, marble, and other non-porous materials. Featuring a battery-powered vacuum system with automatic vacuum recovery, this innovative tool continuously monitors and restores vacuum pressure, providing enhanced safety and reliability during installation.

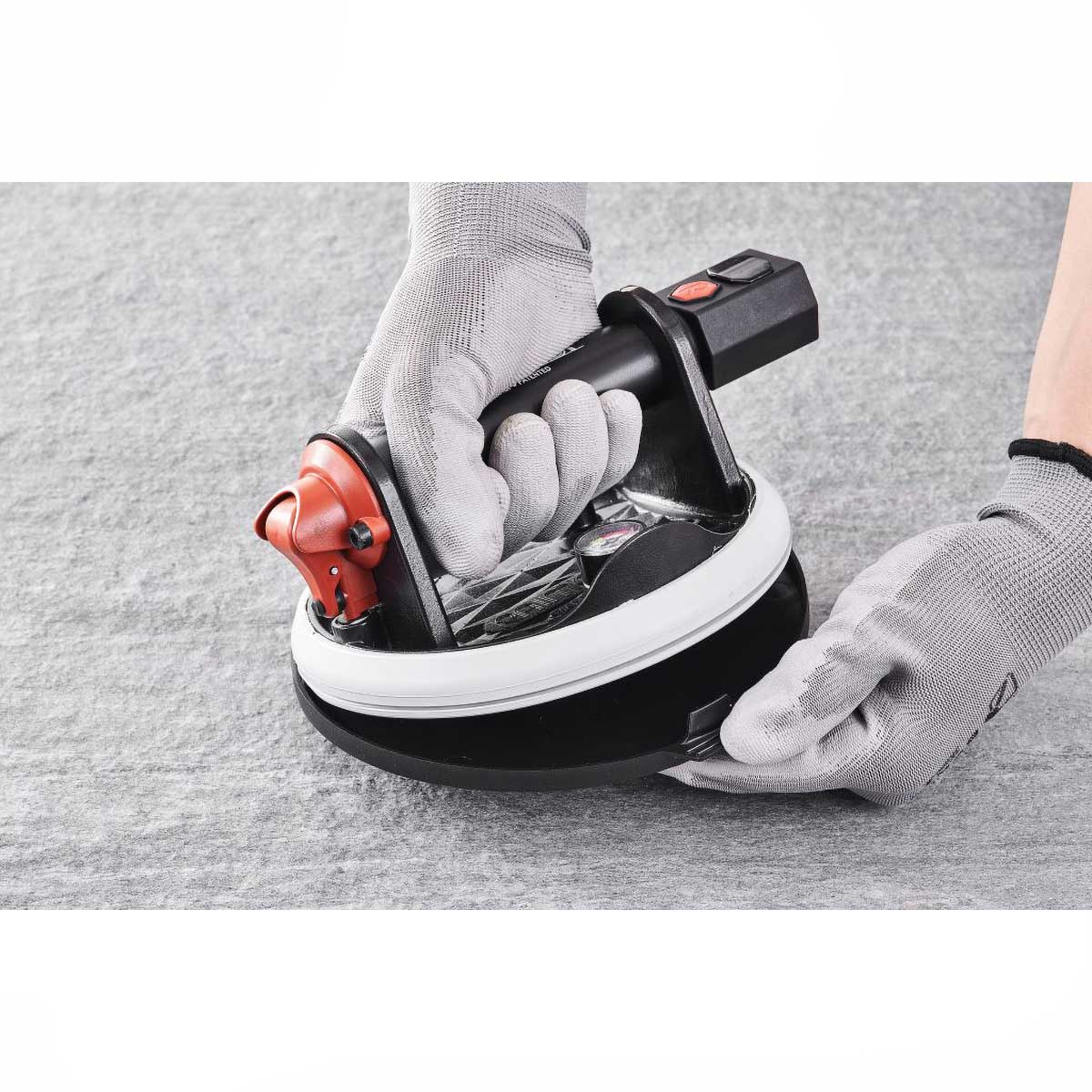

With the simple push of a button, the RV BATTERY+ automatically creates vacuum and stops once the optimal level is reached. If vacuum pressure drops during use, the intelligent pump automatically reactivates and restores suction without operator intervention. Dual digital and analog vacuum gauges allow real-time monitoring of both vacuum performance and battery status, giving installers complete confidence when handling valuable materials.

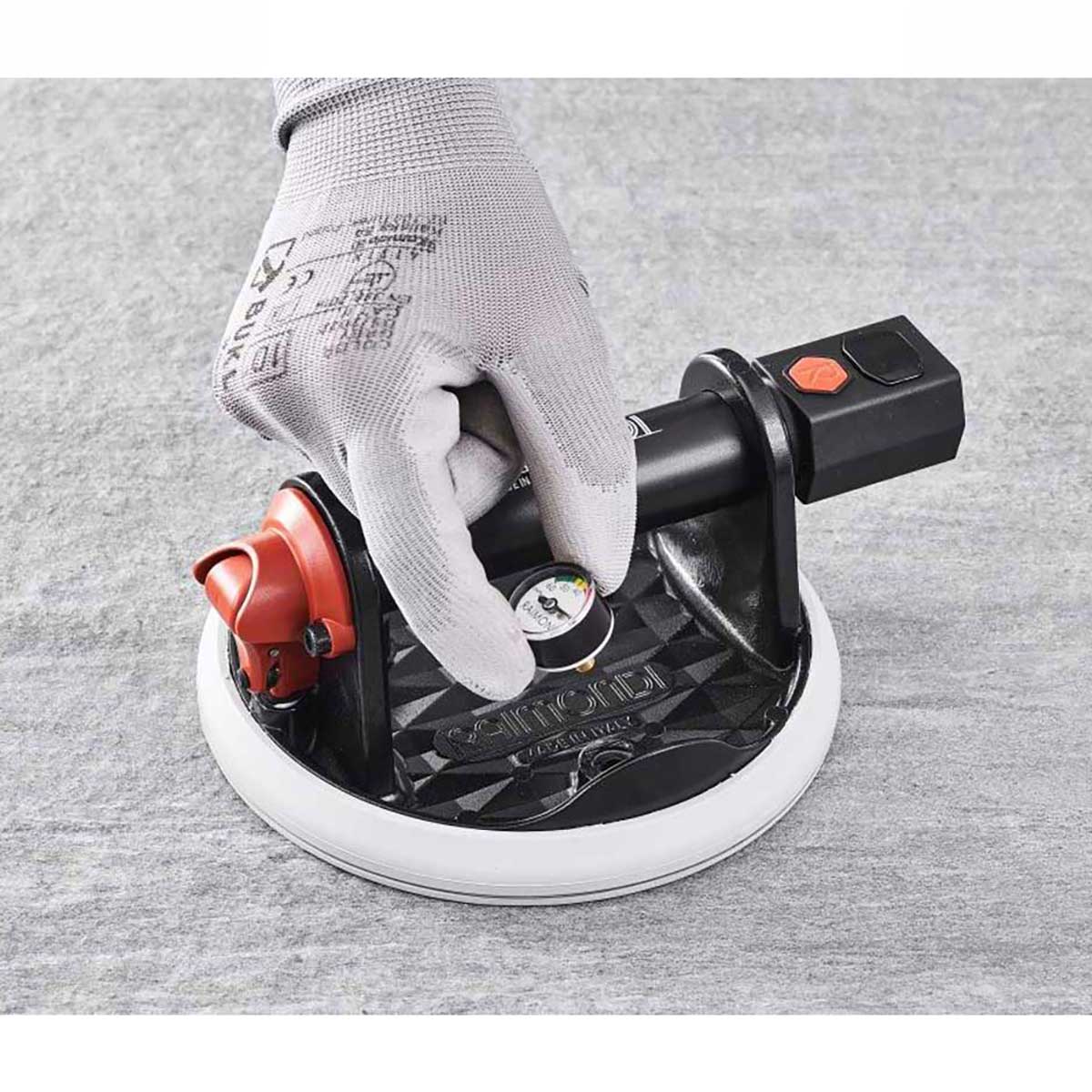

Built with a rugged die-cast aluminum body and a replaceable stain-free rubber pad, the RV BATTERY+ is engineered for professional tile installers, fabricators, and contractors who require maximum performance and durability. The included manual piston allows the suction cup to operate even without battery power, providing additional flexibility on the jobsite.

Key Features

• Battery-operated vacuum suction cup with automatic vacuum recovery
• Designed for smooth and textured porcelain tile, ceramic, stone, glass, granite, and marble
• Automatic pump activation restores vacuum pressure when needed

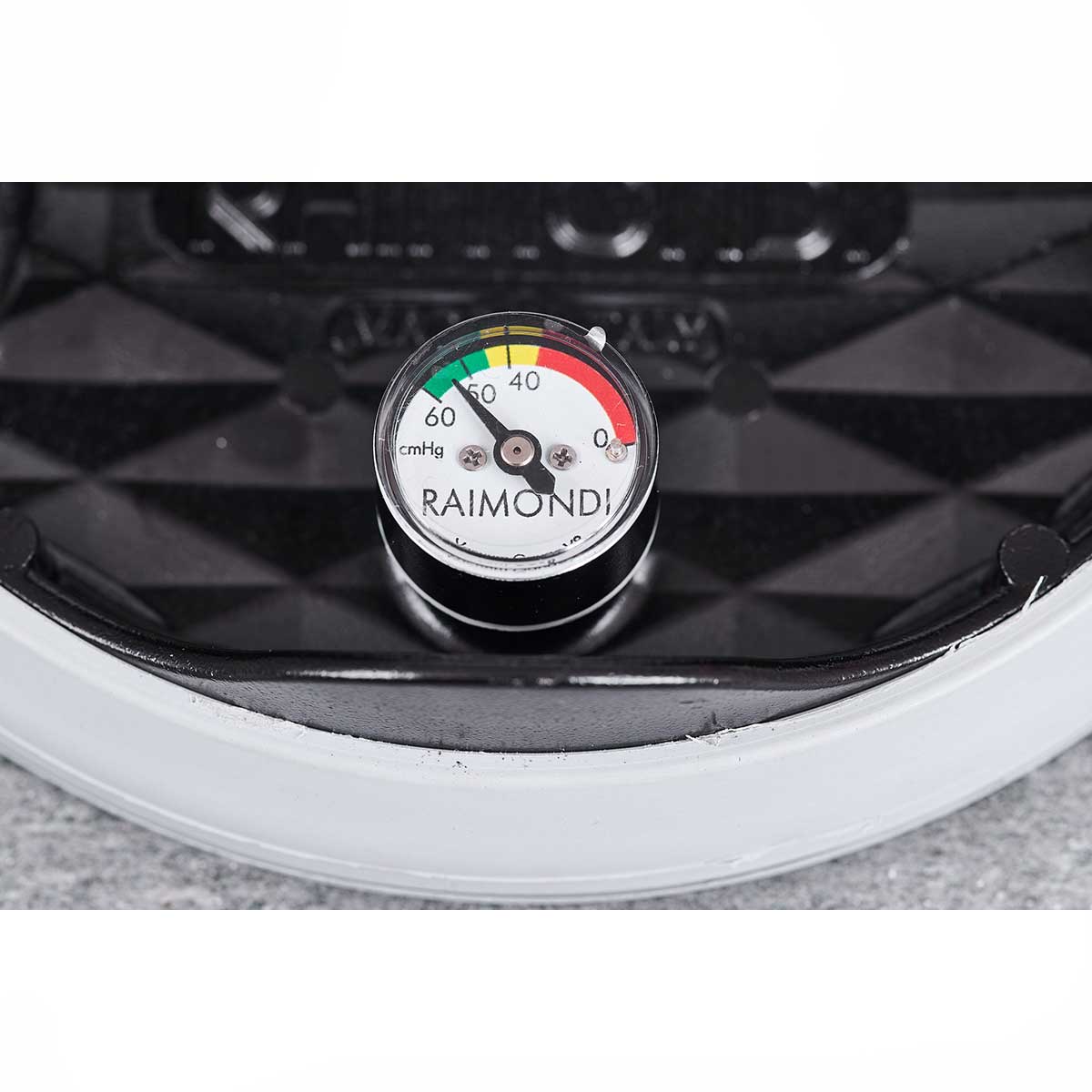

• Dual vacuum gauges with digital and analog monitoring
• Digital display shows both vacuum level and battery status

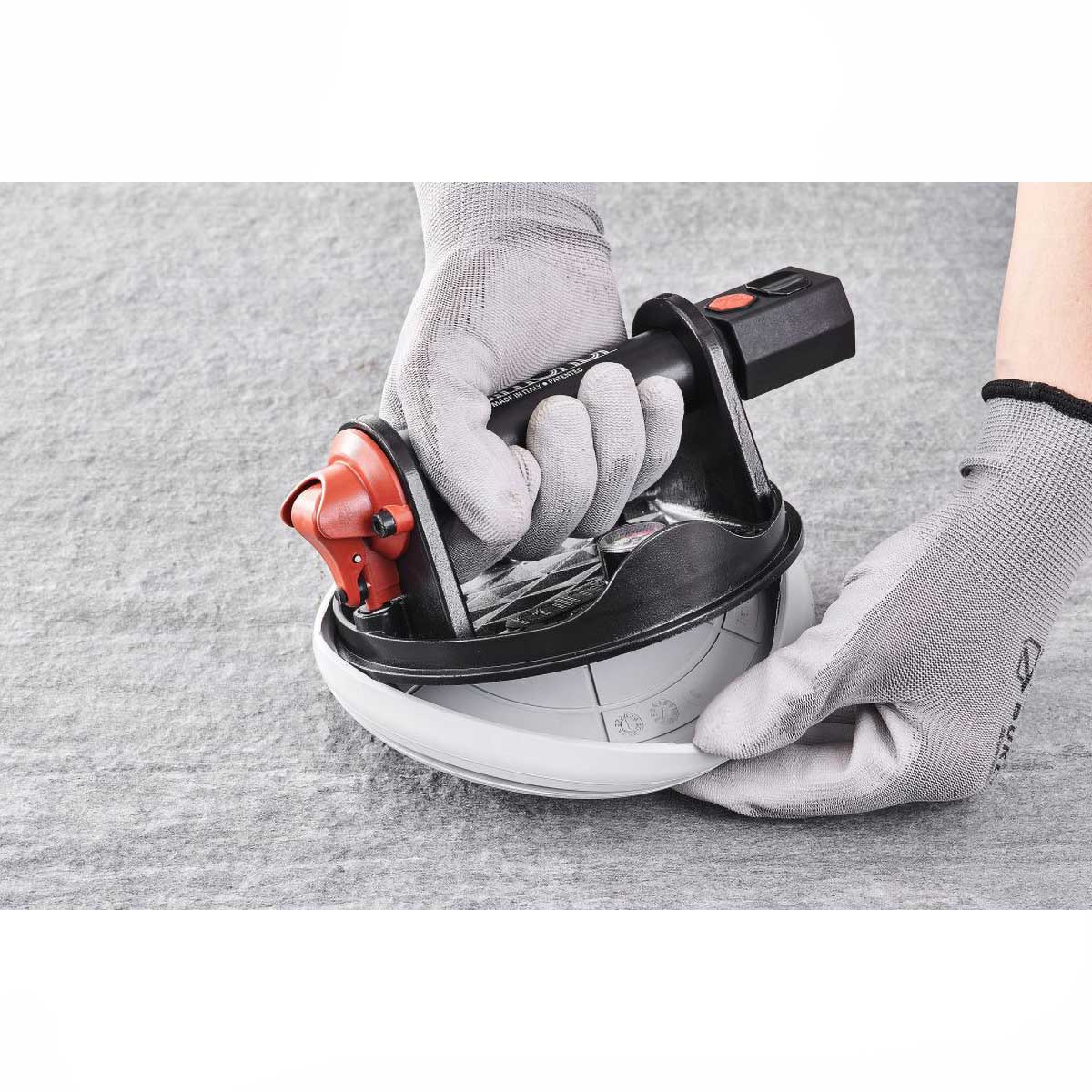

• Replaceable stain-free rubber pad helps extend product life
• Replaceable analog vacuum gauge
• Fast vacuum release valve for efficient material placement
• Dust and dirt-resistant valve and filter system
• Heavy-duty die-cast aluminum construction

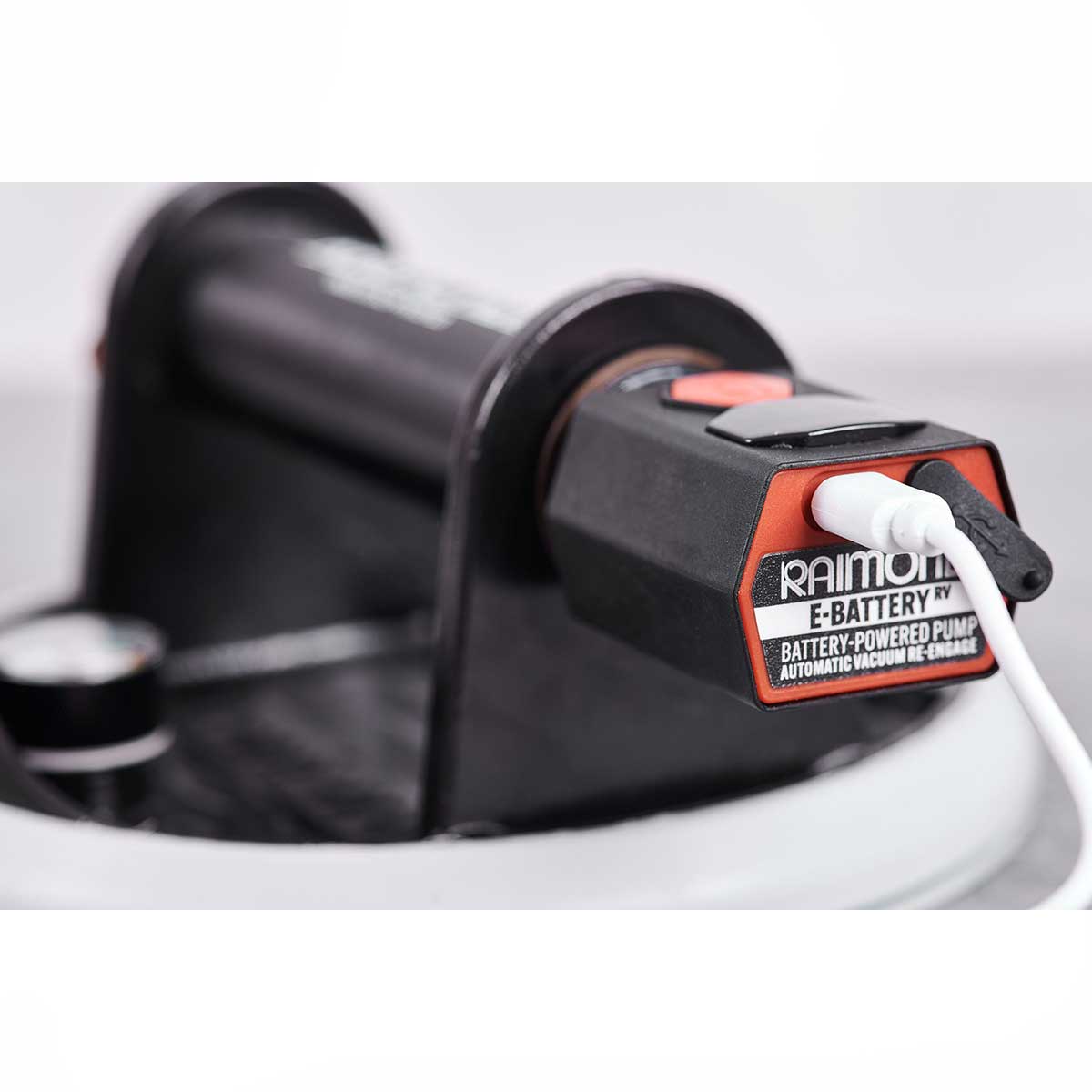

• USB-C rechargeable battery system
• More than 1,500 on/off cycles per charge

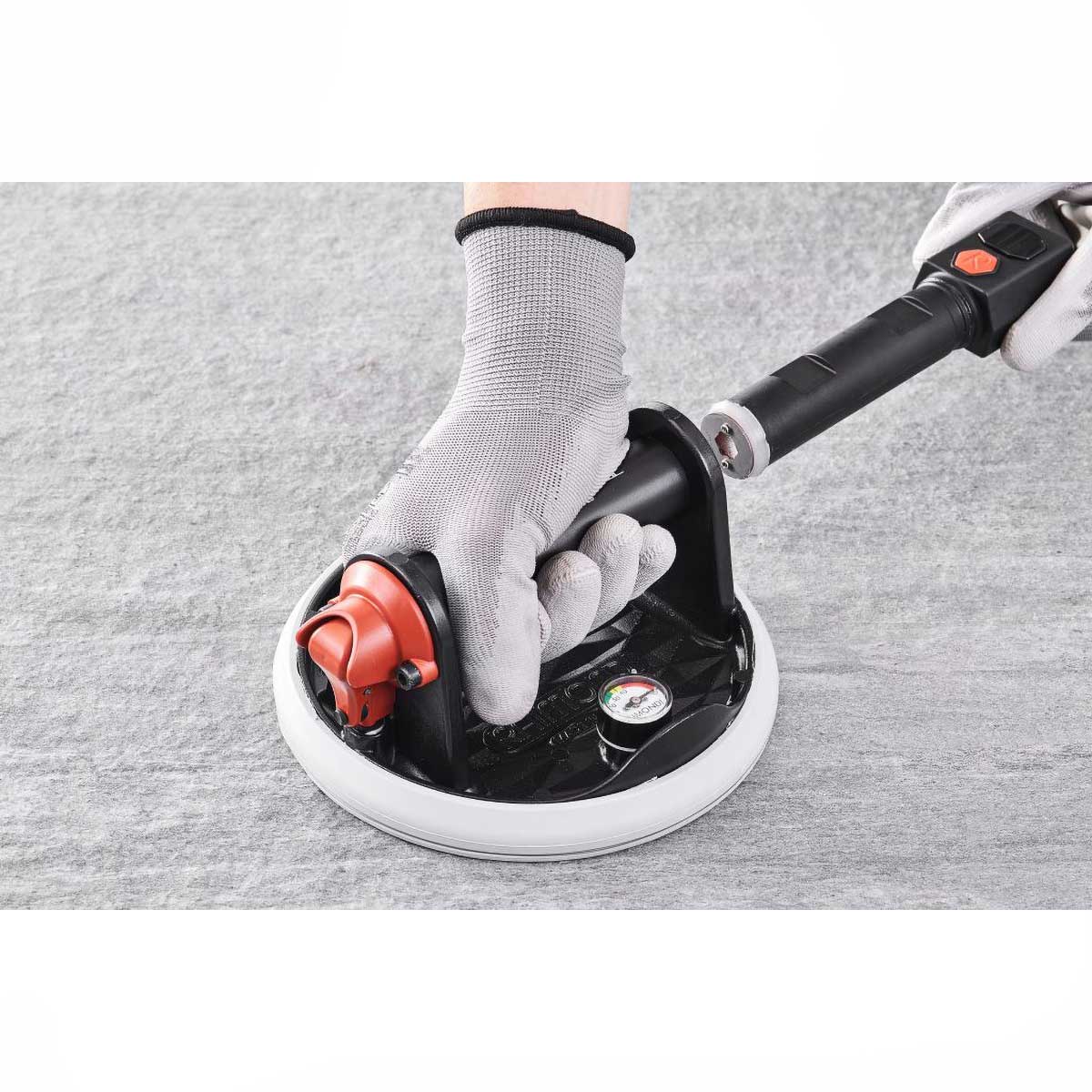

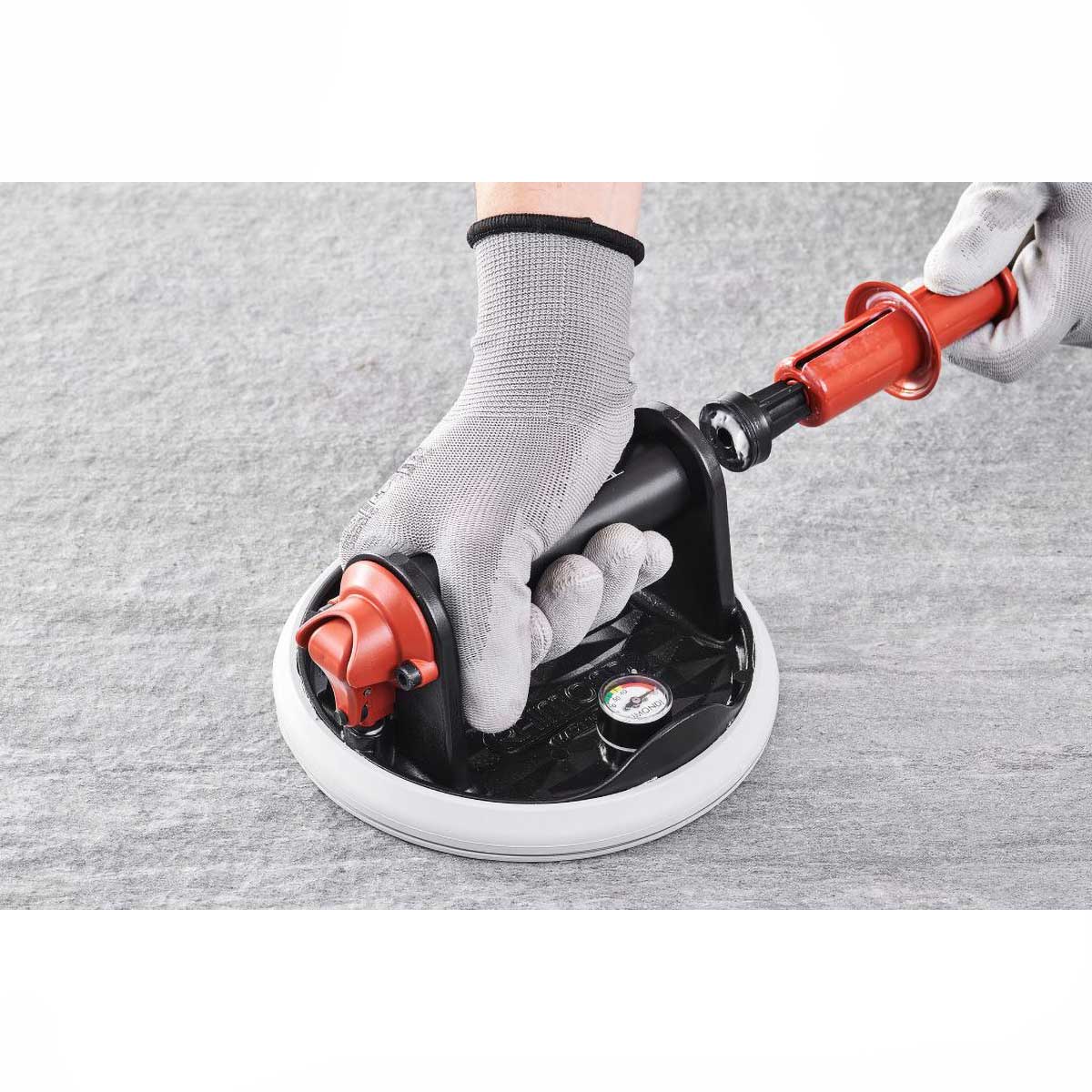

• Can also be operated manually using the included manual piston
• Made in Italy

Ideal Applications

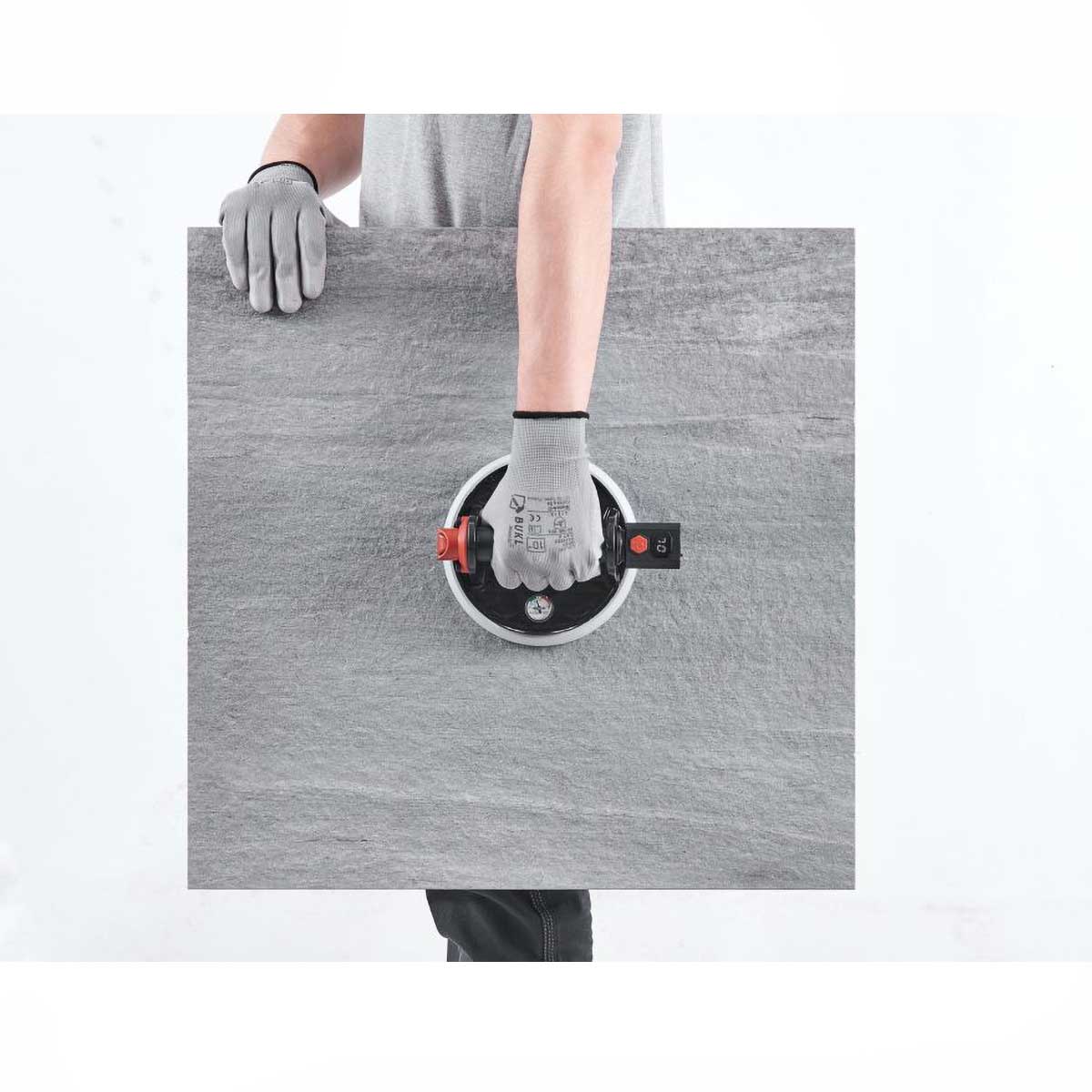

• Large format porcelain tile installation
• Porcelain slab transportation and positioning
• Ceramic tile installation projects
• Natural stone and marble slab handling
• Granite countertop fabrication and installation
• Glass panel handling and installation
• Commercial and residential tile projects
• Kitchen, bathroom, shower, wall, floor, and backsplash installations

Why Choose the RV BATTERY+

Unlike traditional manual suction cups, the RV BATTERY+ continuously monitors vacuum pressure and automatically restores suction when necessary. This advanced technology helps reduce operator fatigue while increasing safety when handling expensive large format tiles and heavy slabs. The combination of automatic vacuum recovery, digital monitoring, and manual backup capability makes it one of the most versatile professional suction cups available.

Specifications

• Part Number: 185WA02VRVBR1
• SKU: LTVSCGNBAT
• Barcode: 8051830033234
• Cup Diameter: 175 mm (6.9")
• Maximum Load Capacity: 130 kg (286.6 lbs)
• Laboratory Tested Capacity: 200 kg (440 lbs)
• Weight: Approximately 1.2 kg (2.6 lbs)
• Body Material: Die-cast aluminum
• Rubber Pad: Replaceable stain-free non-marking rubber
• Battery Charging: USB-C rechargeable
• Battery Life: More than 1,500 on/off cycles
• Vacuum Monitoring: Digital and analog gauges
• Operation Modes: Battery-powered and manual
• Country of Manufacture: Italy

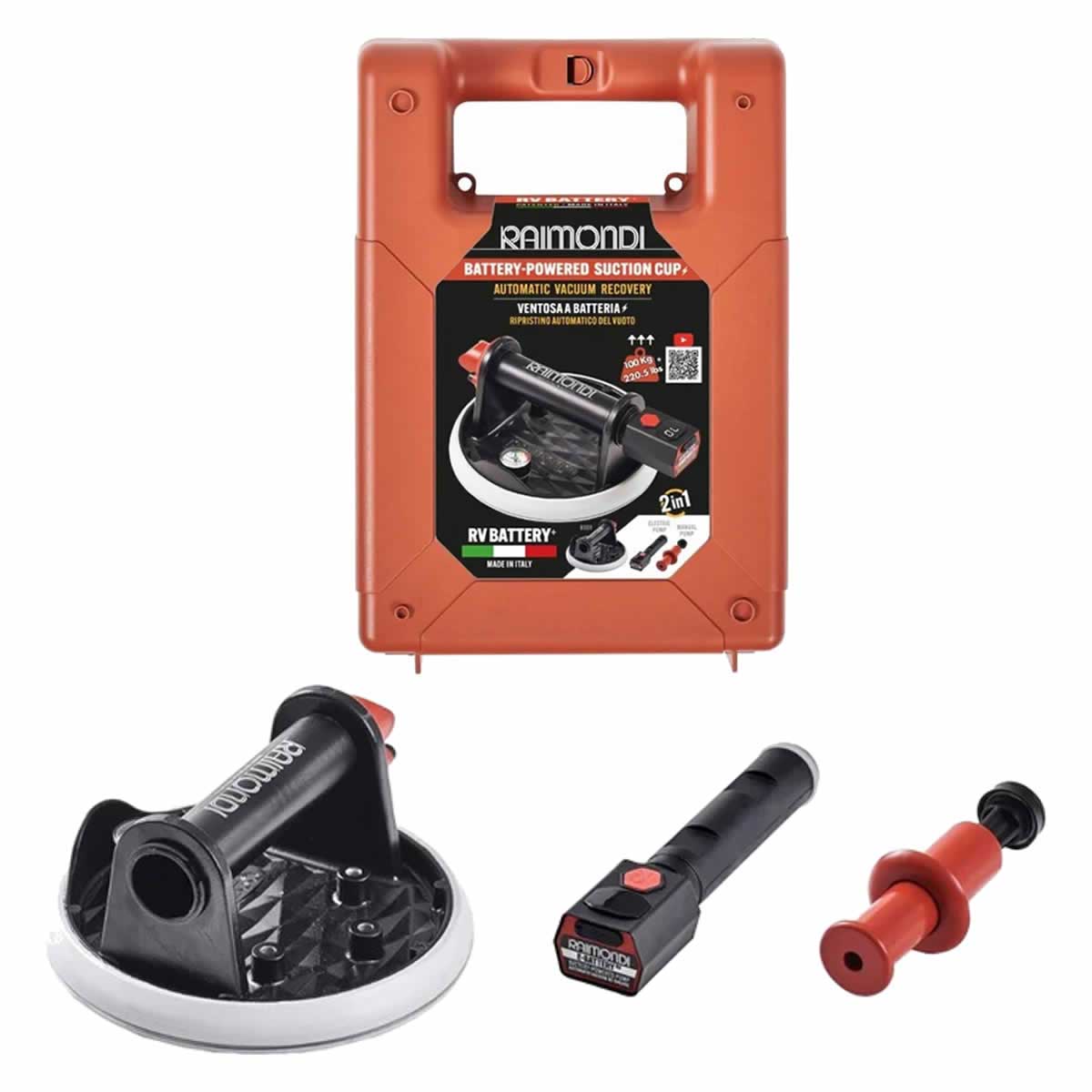

What's Included

• Raimondi RV BATTERY+ Vacuum Suction Cup
• Battery-operated vacuum piston
• Manual piston for backup operation
• Protective rubber pad cover
• USB-C charging cable
• Protective carrying case
