Raimondi RLS Pro Kit 750 Tile Leveling System with Wedges, Clips & Pliers

Raimondi Tile Leveling System RLS Pro Kit

Complete Raimondi RLS Pro Kit designed to eliminate tile lippage and achieve perfectly level tile installations on floors and walls.

This professional Raimondi RLS Pro Kit includes reusable wedges, leveling clips, and installation pliers required for fast, accurate tile leveling during installation. The Raimondi RLS system helps maintain consistent tile height while thin-set adhesive cures, reducing tile lippage and improving installation quality.

The system is ideal for porcelain tile, ceramic tile, marble, granite, natural stone, and large format tile installations.

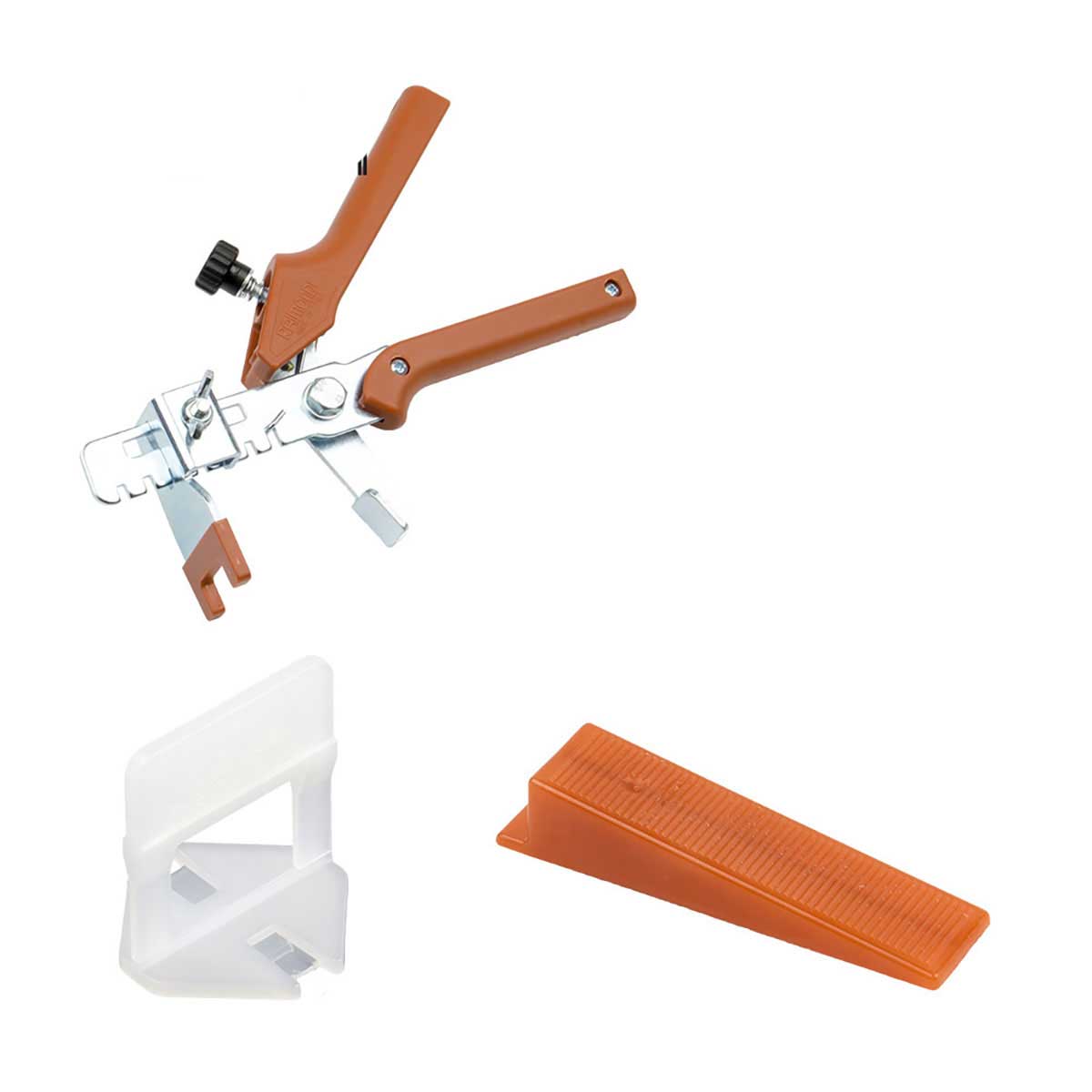

Kit Includes

• 250 Reusable Raimondi RLS Wedges
• 500 Raimondi RLS Leveling Spacer Clips

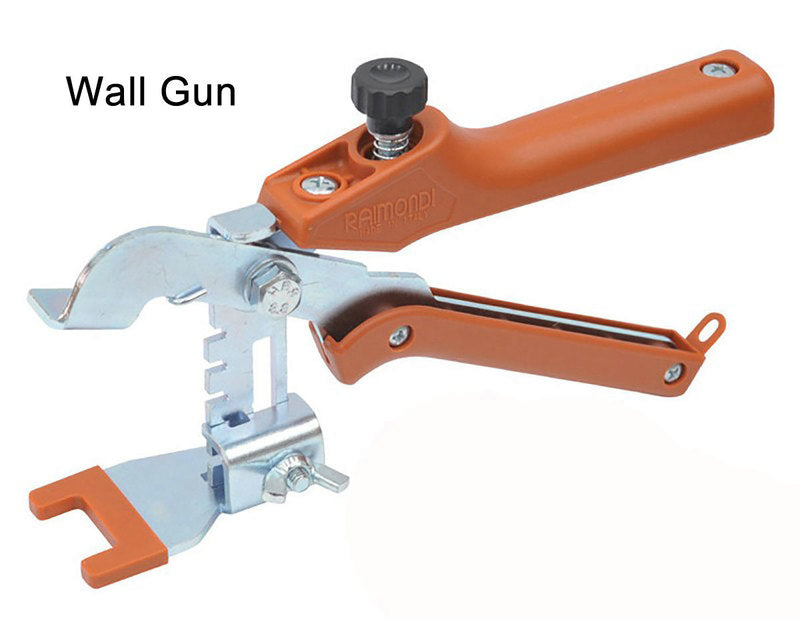

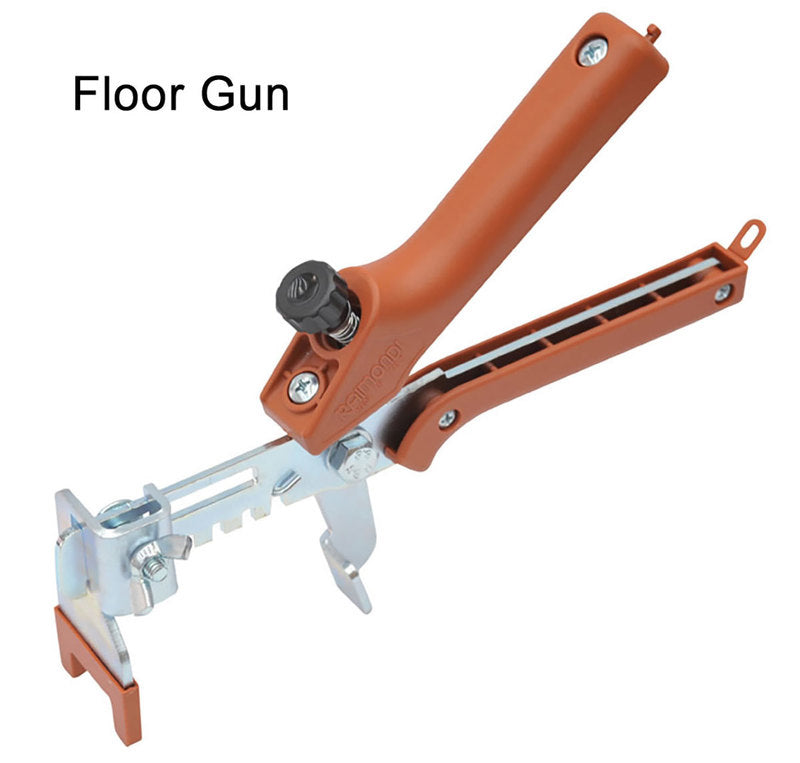

• 1 Raimondi Installation Pliers for floor or wall installation (your choice)

Available Joint Sizes

• 1/16" (1.5 mm)
• 1/8" (3 mm)

Key Features

• Helps eliminate tile lippage during installation.
• Designed for professional and DIY tile installations.
• Ideal for large format tile and uneven subfloors.
• Reusable wedges made from durable engineered plastic.
• Provides consistent pressure for accurate tile alignment.

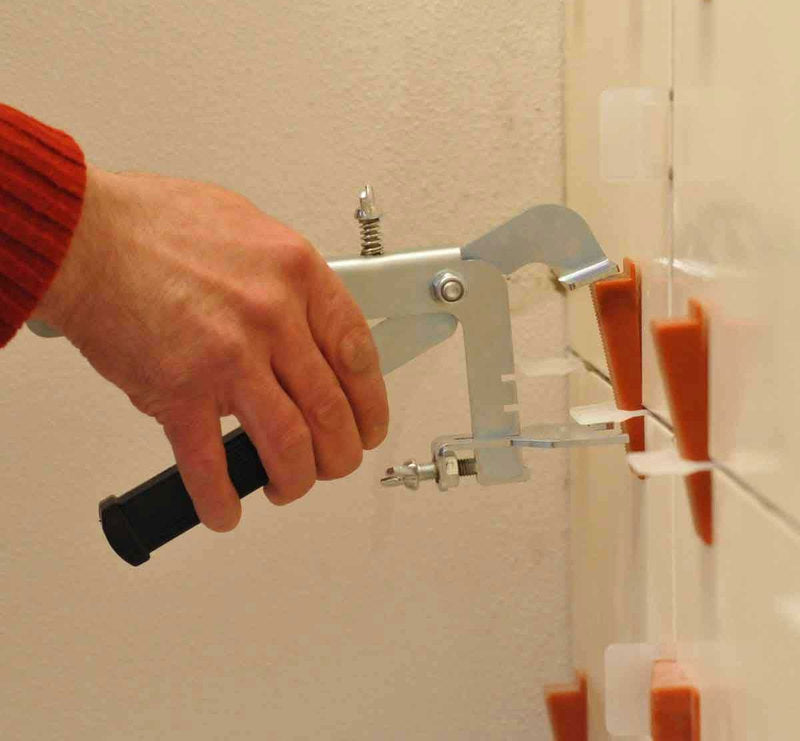

• Suitable for both floor and wall tile installations.
• Speeds up installation while improving final results.

System Specifications

• Minimum grout joint: 3/32"
• Tile thickness: minimum 1/8", maximum 1/2"

Applications

Recommended for porcelain tile, ceramic tile, marble, granite, rectified tile, gauged tile, and natural stone installations on floors, walls, showers, backsplashes, and other vertical tile applications.

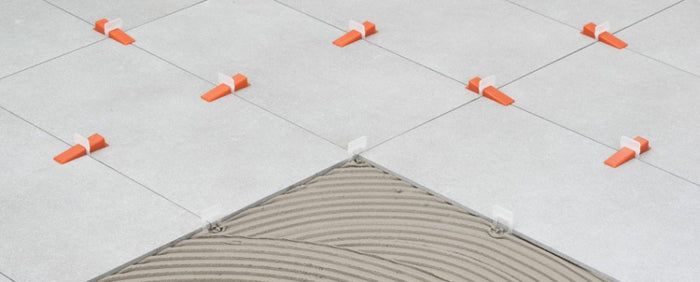

How the Raimondi RLS System Works

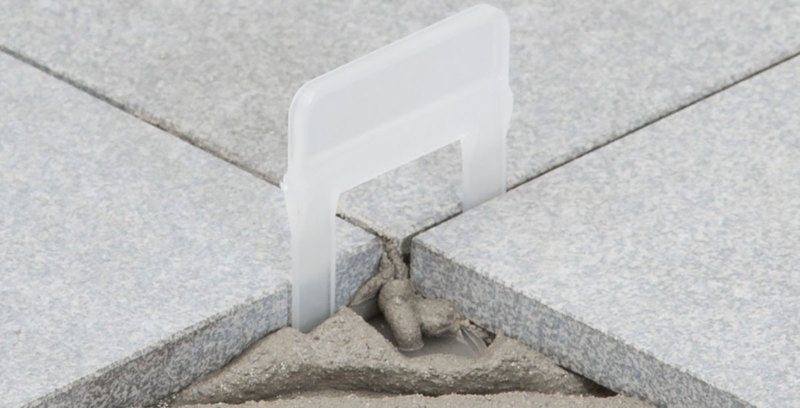

Step 1 - Insert the Clip
After spreading the adhesive, insert the leveling clip underneath the tile along all sides.

Step 2 - Position the Tile
Place the tile and gently beat it in using a rubber mallet.

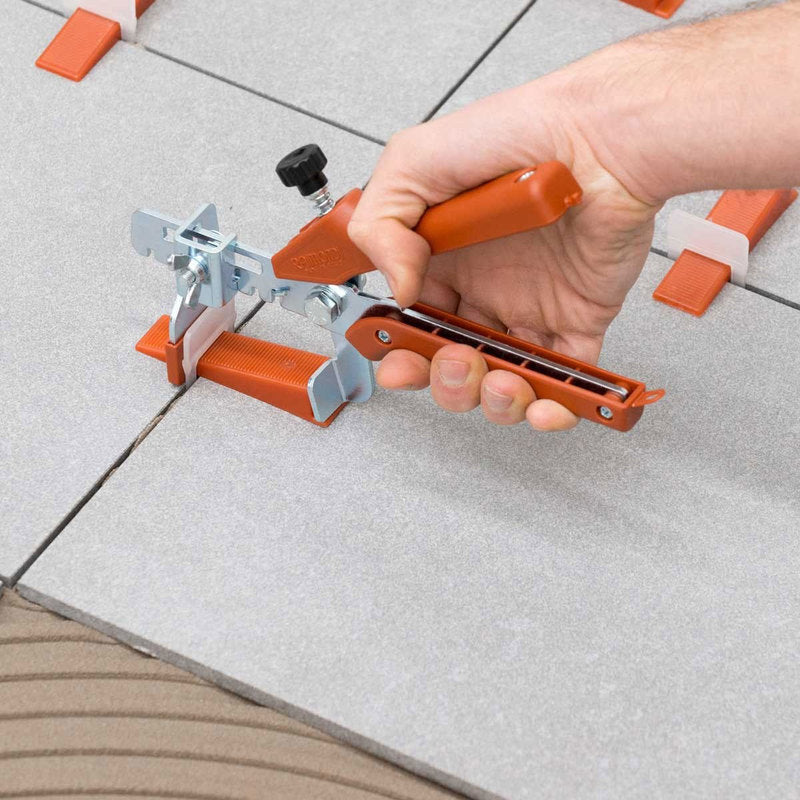

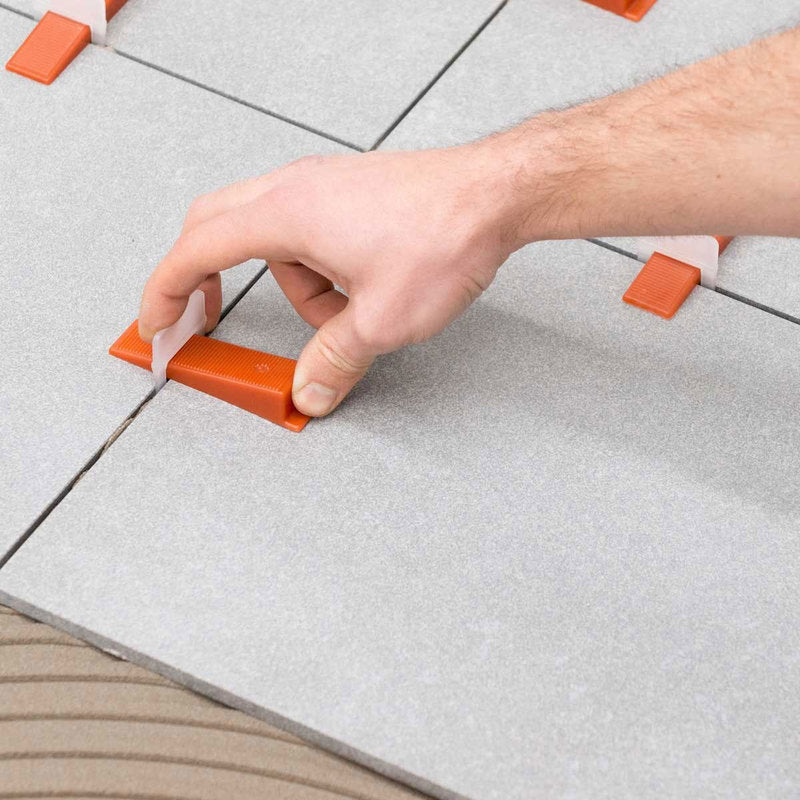

Step 3 - Insert the Wedge
Insert the wedge into the clip and tighten using Raimondi installation pliers until adjacent tiles are perfectly level.

Step 4 - Remove the Clips

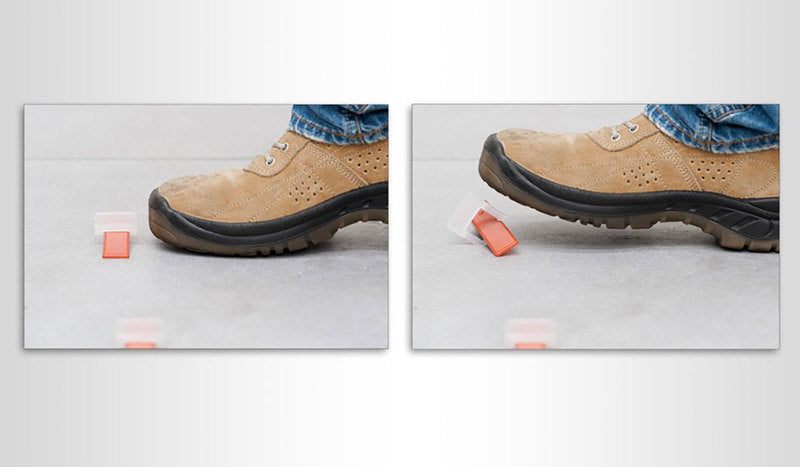

After the adhesive cures, remove the clips by tapping parallel to the grout joint using a rubber mallet, pliers, or foot pressure. The wedges are reusable for future installations.

Click here for instructions and specifications

Watch Raimondi Tile Leveling System Videos
