Raimondi Tile Leveling Lippage System RLS Spacers 4.8mm

Raimondi Tile Leveling System RLS Clips - 4.8mm (3/16") Tile Spacers

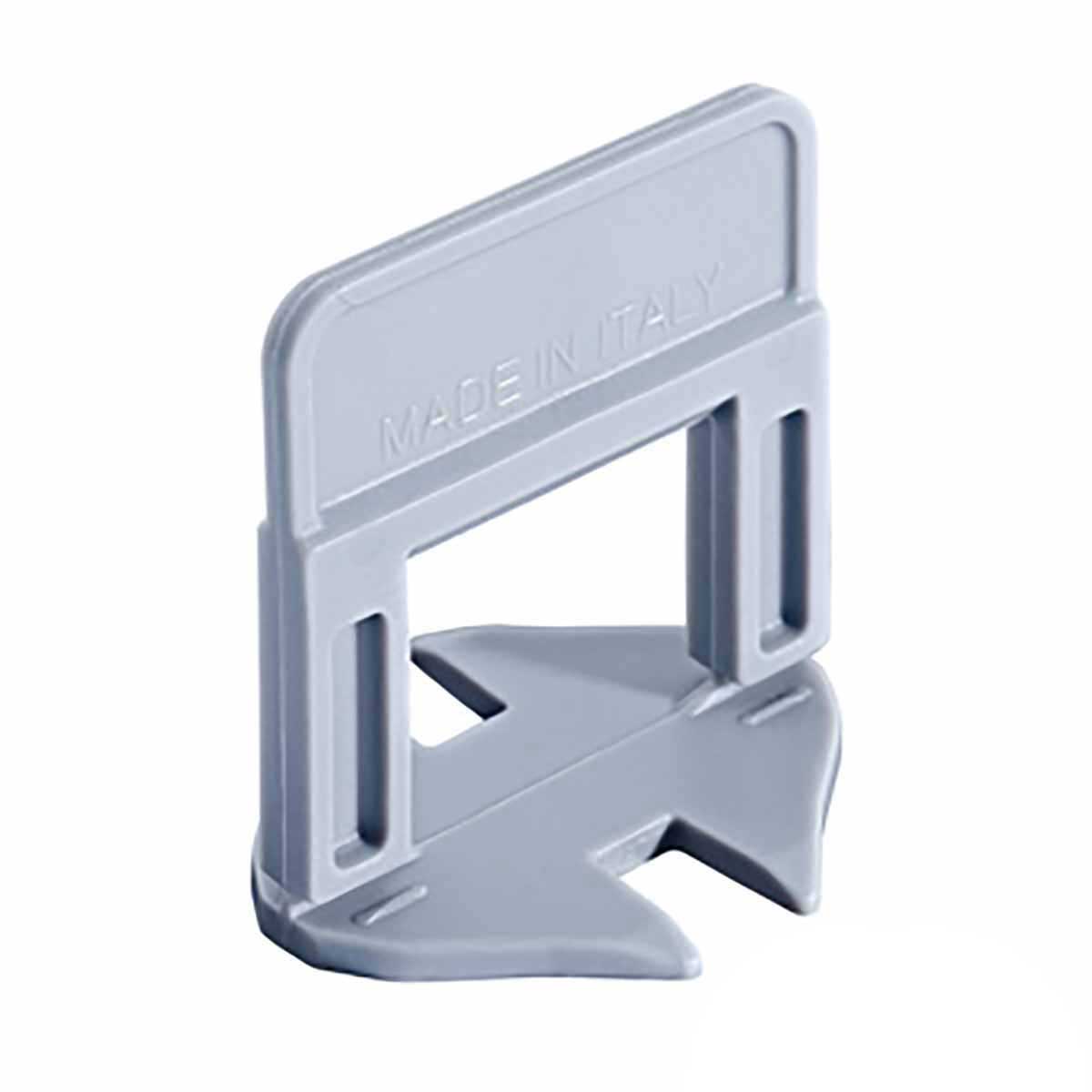

Gray 4.8mm lippage system clip. (non-reusable)

Accurate tile setting requires perfect leveling of the tiles.

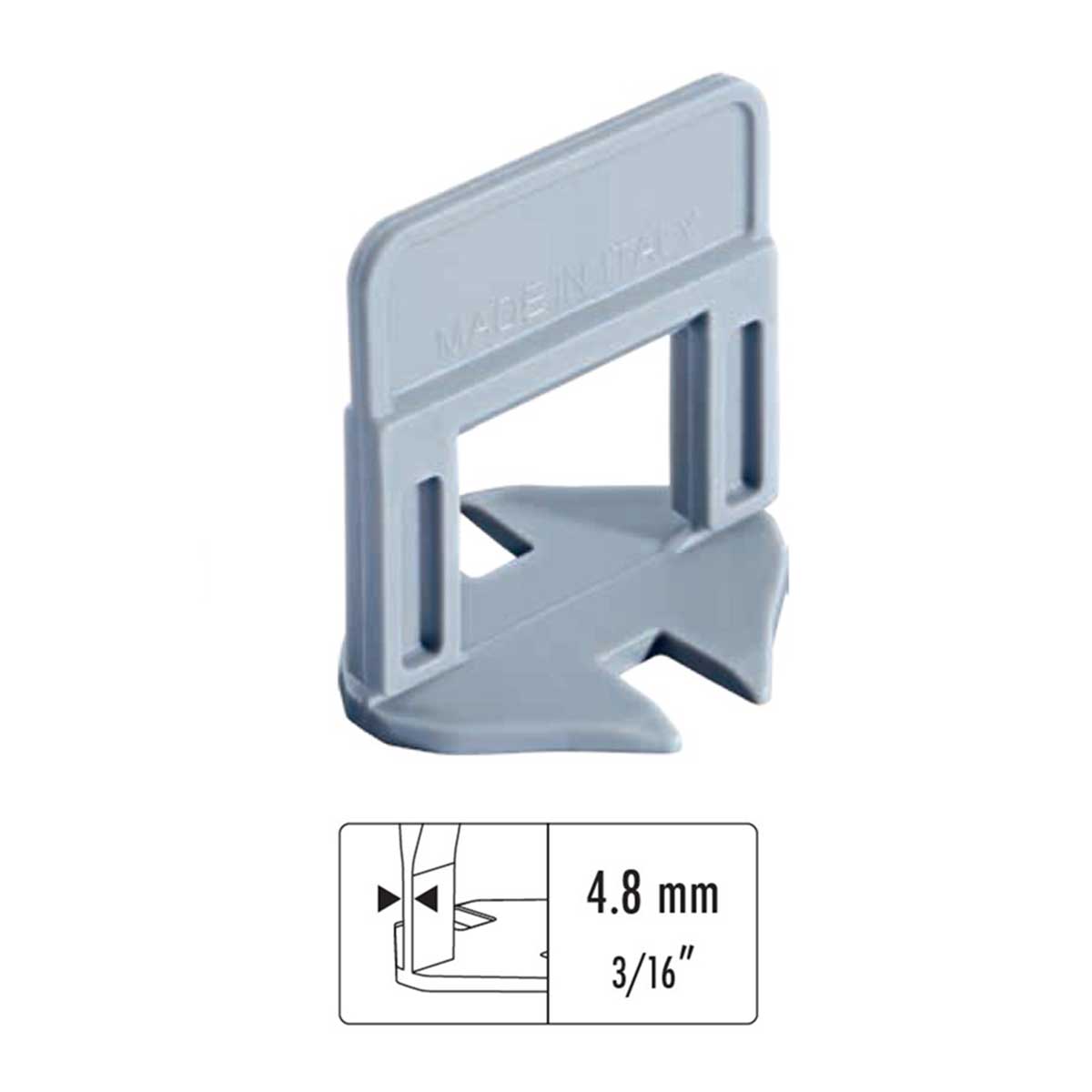

Joint Size: 3/16" (4.8mm)
Tile Thickness: 1/8" - 1/2" (3 mm - 12 mm)

Often it is hard to properly set ungauged and thin tiles as well as larger format thicker tiles because of uneven floor foundations, as a result, tiles that seem perfectly level during the installation, after the thinset or adhesive cures, they often show a variance in height and can com promise the aesthetics. This can be avoided, thanks to the new Raimondi Leveling Spacers, which will preserve the perfect leveling of the tiles, and will also speed up the installation.

All R.L.S. clips have the breaking point very close to the plane where the tiles lay (1.2 mm – 3/64”). This means the system can be used without any problem even on very thin tiles (3 mm – 1/8”) since it still remains a gap of 1.8 mm (5/64”) for the grout.

R.L.S. clips are made with premium quality plastics whose composition has been severely tested to ensure the perfect balance between elasticity and resistance; indispensable to carry out properly the function for which they were designed.

Key Features

• Professional tile leveling clips designed to prevent tile lippage.
• Creates consistent 4.8mm (3/16") grout joints.
• Compatible with tiles from 3 mm to 12 mm thick.
• Break-point design allows quick and clean removal after installation.
• Manufactured from high-quality engineered plastic for durability and elasticity.
• Works with Raimondi wedges and leveling pliers.
• Suitable for both floor and wall tile installations.

LIPPAGE

After the clips and tile have been set place the wedge in the clip and start tensioning it with the pliers

LEVEL

Once the pliers are adjusted and the wedge is tensioned the lippage will start to level out.

VERTICAL

The R.L.S. system can be used vertically on walls, backsplashes, or any vertical configuration using the "wall" pliers (LSPLIERW).

Applications

Ideal for installing porcelain tile, ceramic tile, marble, granite, and natural stone on floors, walls, backsplashes, and other vertical surfaces.

How the Raimondi RLS System Works

Step 1- Insert the Clip
After spreading the adhesive, insert the clip underneath the tile along the edges.

Step 2 - Insert the Wedge
Slide the wedge into the clip and tighten using Raimondi installation pliers to level adjacent tiles.

Step 3 - Remove the Clip
After the adhesive cures, remove the clip by tapping or kicking parallel to the grout joint. The clip breaks at the designed break point below the tile surface.
