Warmup Snow and Ice Melting In-Line GFEP Protection GF-1
Description
Description
Warmup Snow and Ice Melting In-Line GFEP Protection - GF-1
In-line GFEP protection for one outdoor heating circuit up to 60A at 120/208/240V
The Warmup GF-1 In-Line GFEP Protection Unit is designed to provide ground fault equipment protection for electric snow melting and outdoor heat trace systems installed in residential and commercial applications.
Electric snow melting and outdoor pipe heating systems installed in the United States and Canada require ground fault protection for safe operation and electrical code compliance.
The ODC-GF-1 and ODC-GF-2 Ground Fault Protection Units are designed to help meet NEC 426.28, NEC 427.22, and CEC Part I Rule 62-300 requirements for equipment ground fault protection.

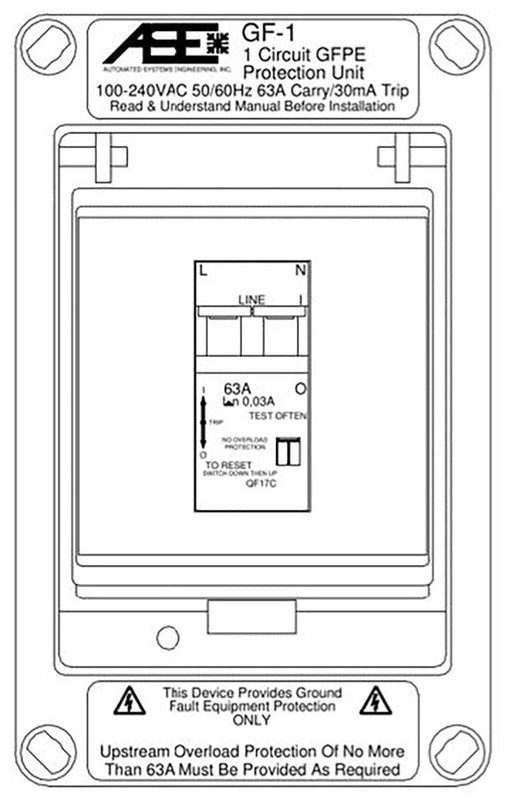

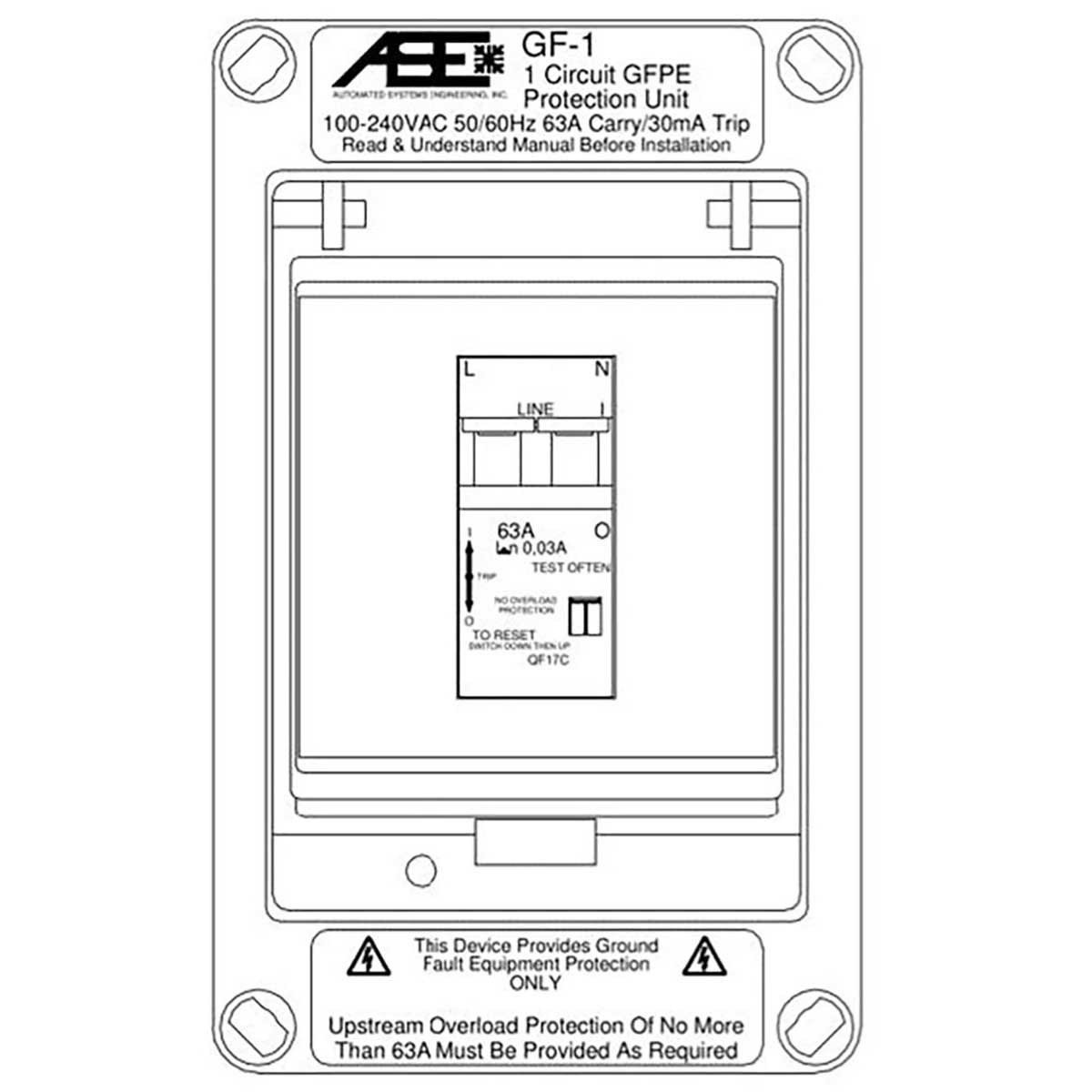

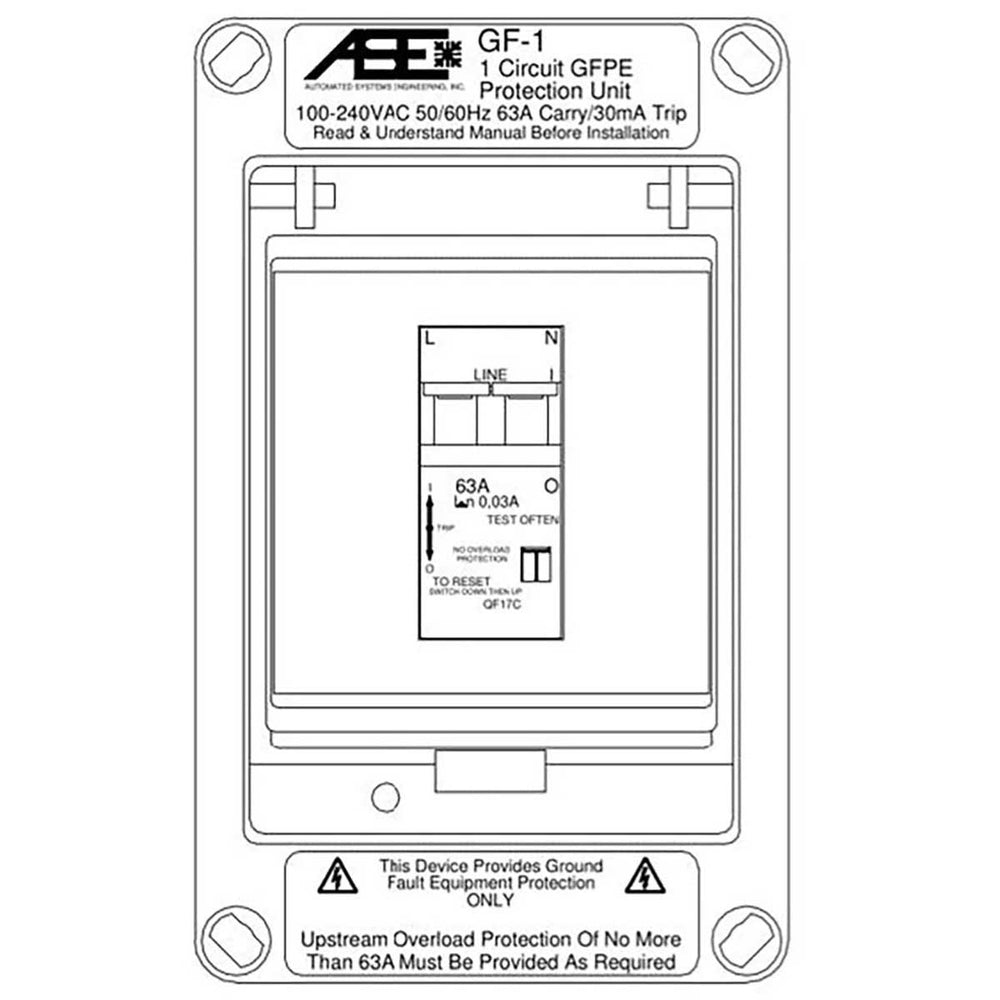

The GF-1 model provides single circuit protection and is housed inside a rugged IP65 NEMA 4X rated enclosure suitable for indoor or outdoor installation.

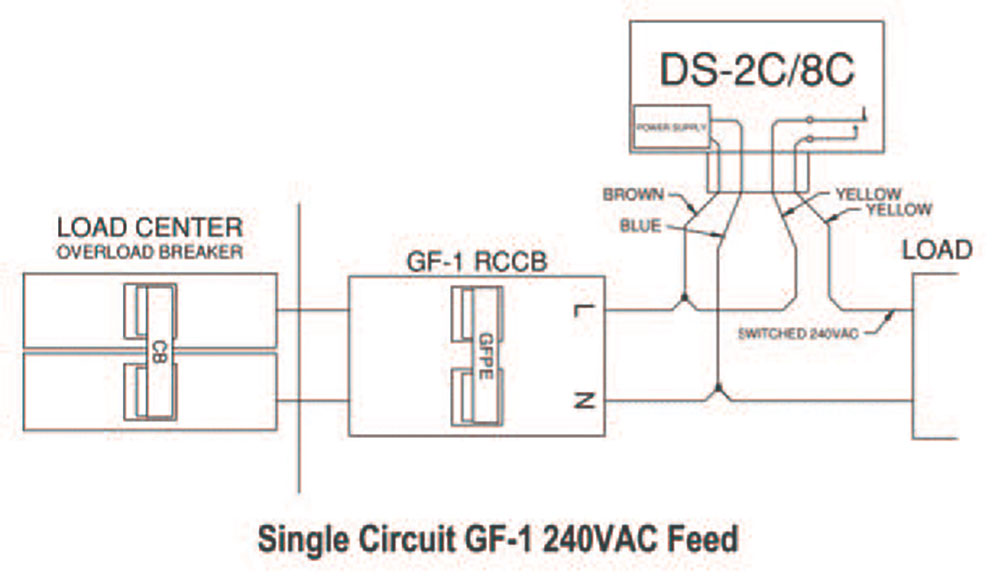

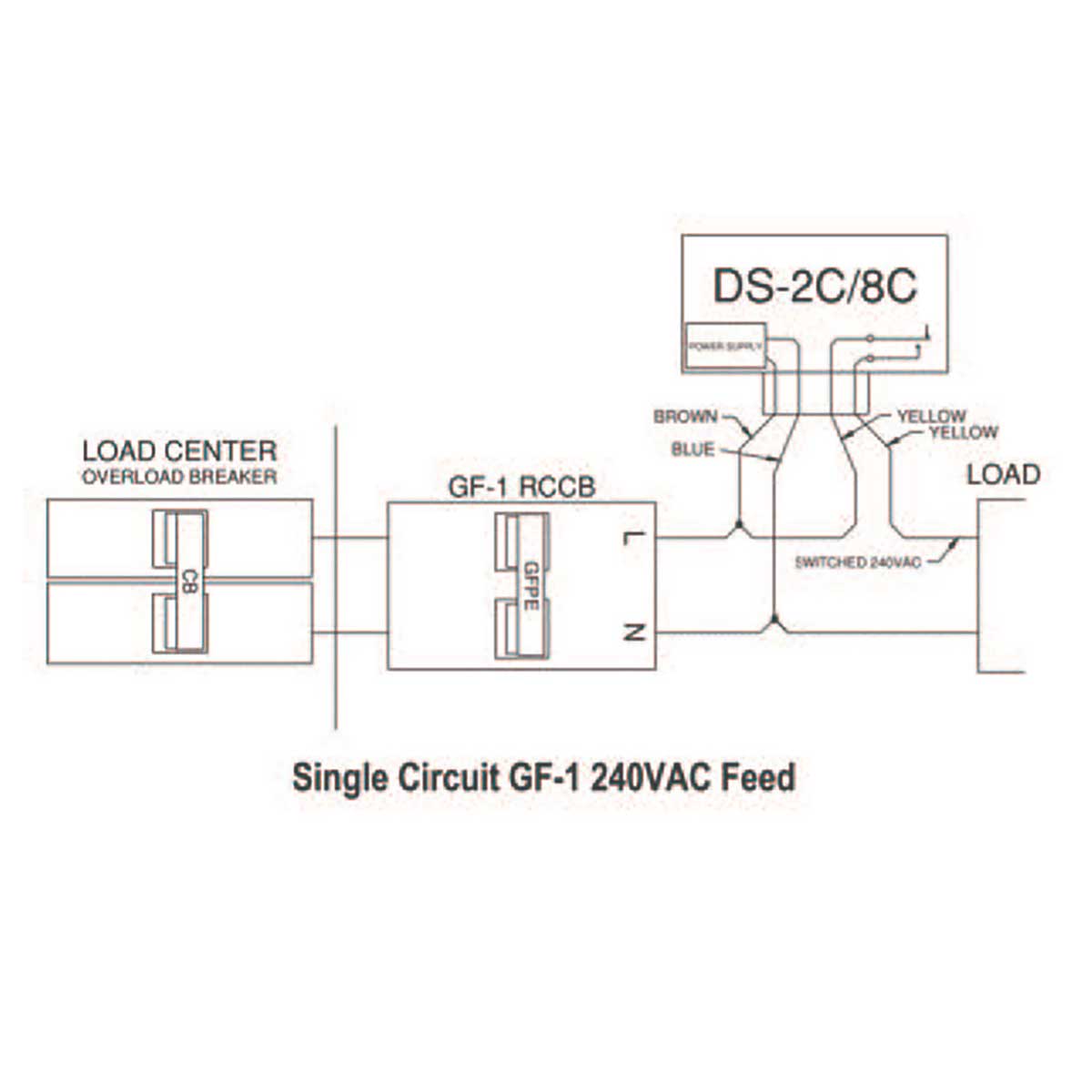

The GFEP unit should be installed between the overload-protected branch circuit and the snow melting or heat trace controller and heating equipment.
The GF-1 unit provides ground fault protection only and must be used together with primary overload protection. Maximum load must not exceed 63 amps.
Features & Benefits
- Single circuit ground fault equipment protection
- Designed for snow melting and heat trace systems
- Suitable for indoor and outdoor installations
- IP65 NEMA 4X weather-resistant enclosure
- Helps meet NEC and CEC code requirements
- Supports up to 63A carry rating
- Compact and durable enclosure design
Technical Specifications
- Input Voltage: 100-240 VAC, 50/60 Hz
- Enclosure Rating: NEMA 4X / IP65
- Wire Compatibility: #14 to #6 wire only
- Capacity: 63A carry / 22mA ground fault trip
- Operating Temperature: -40°C to +60°C
Helpful Resources
- Warmup Snow Melting Installation Guide
- Warmup Snow Melting Specifications & Installation Instructions PDF
