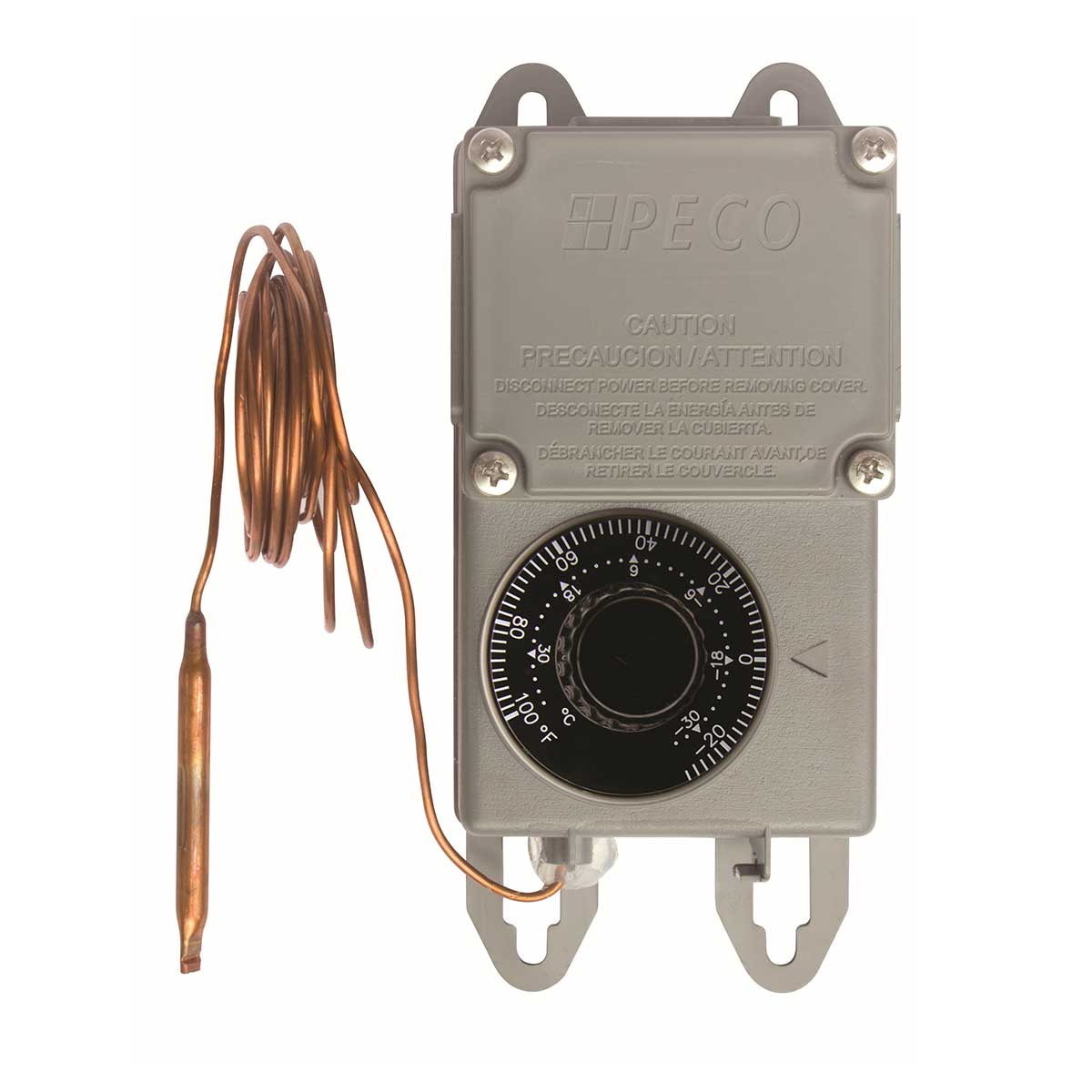

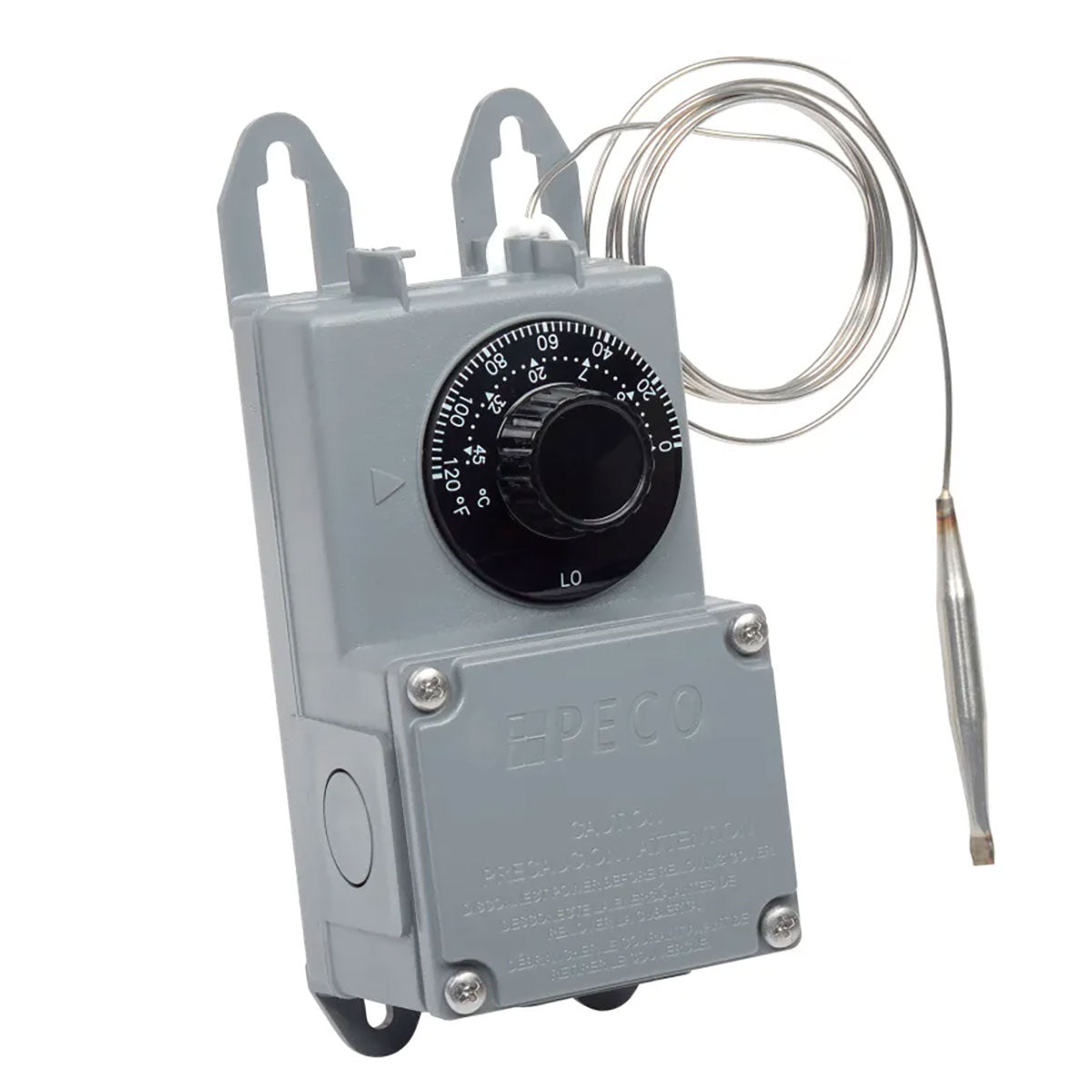

Warmup TF115-001 Line Voltage Thermostat for Roof & Gutter Freeze Protection

Warmup TF115-001 Line Voltage Thermostat for Roof & Gutter Freeze Protection

The Warmup TF115-001 Line Voltage Thermostat is designed to provide dependable temperature control for roof and gutter de-icing systems and pipe freeze protection applications. Built for demanding commercial, agricultural, and industrial environments, this rugged thermostat helps activate compatible heating cables when temperatures require freeze protection, helping reduce the risk of frozen pipes and ice buildup.

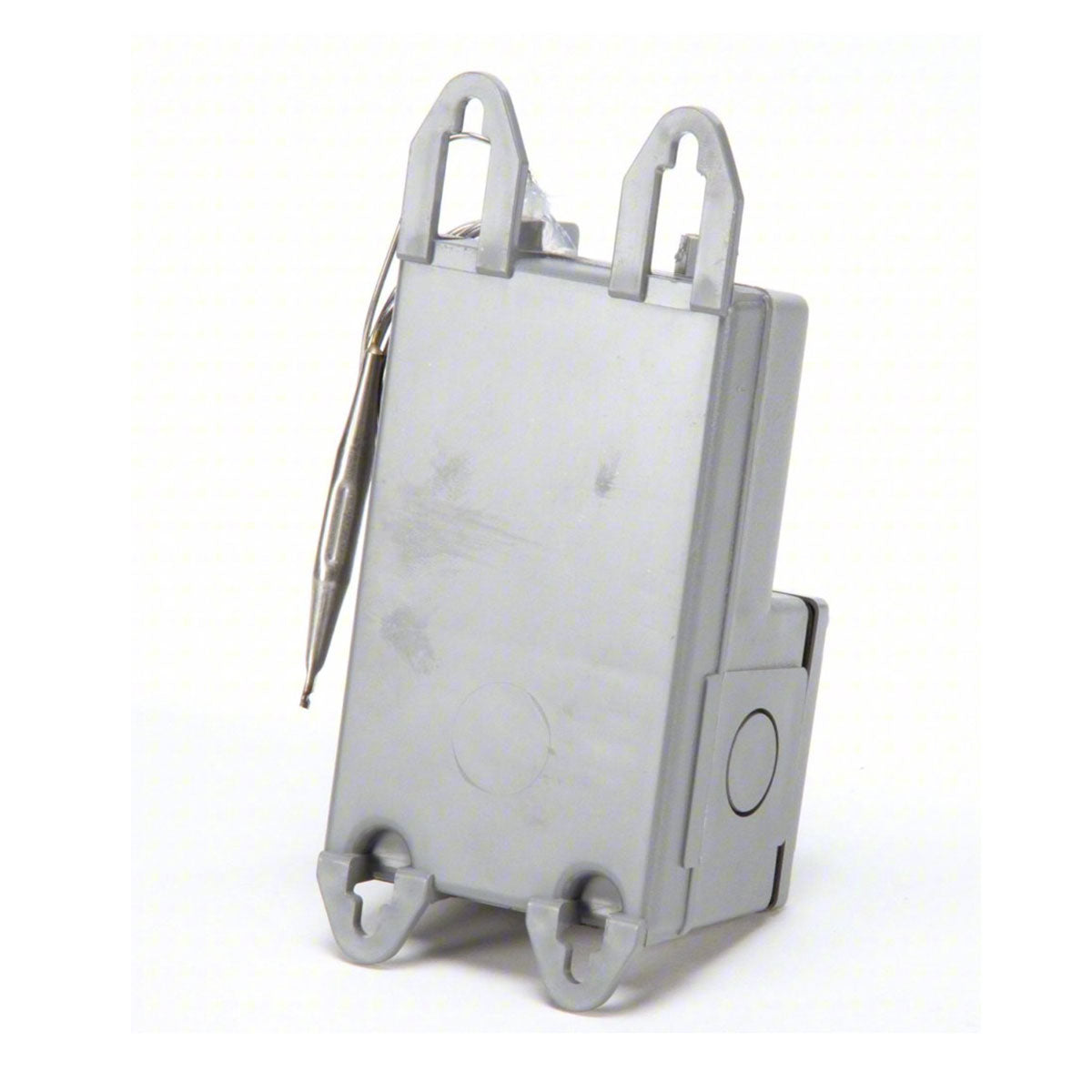

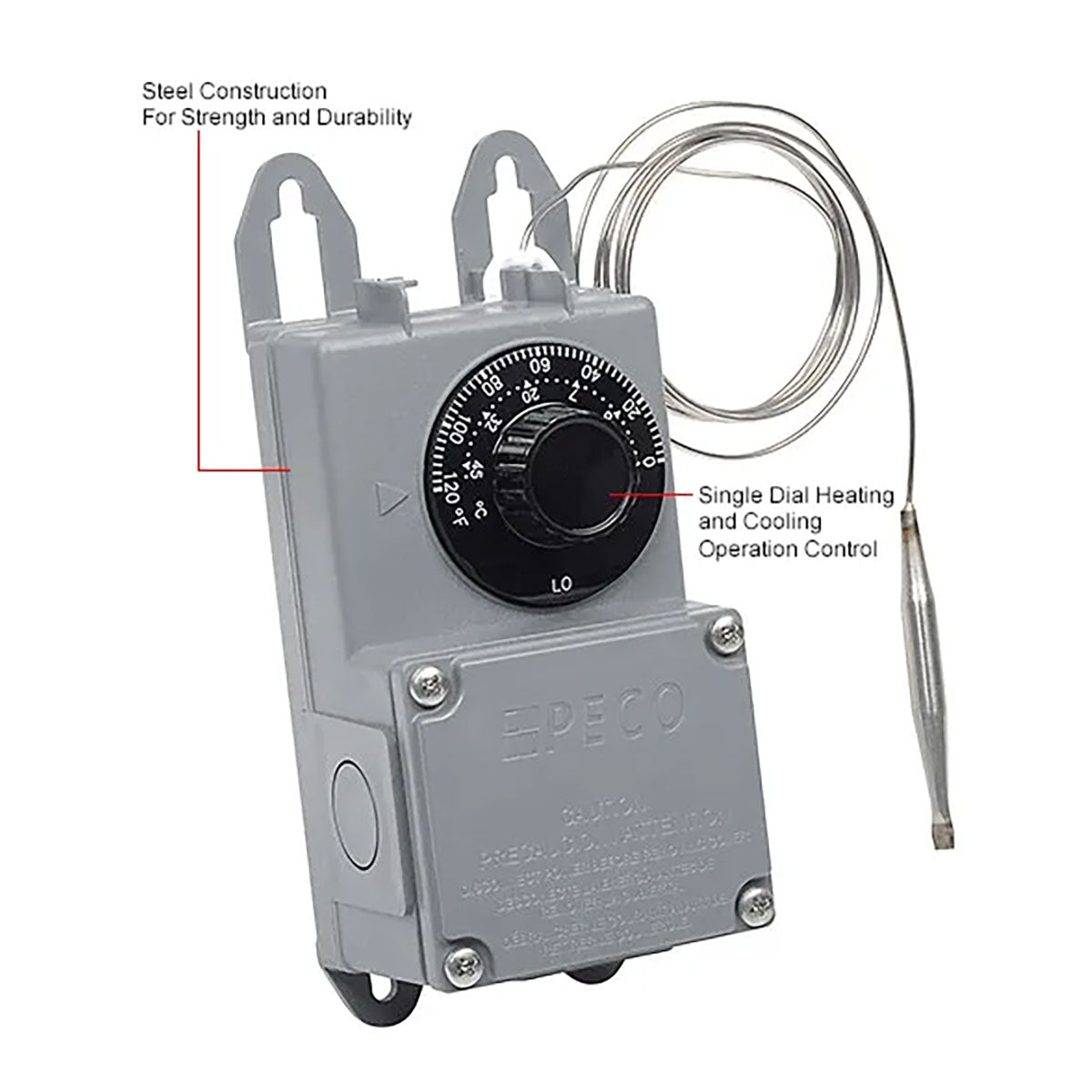

Featuring a durable NEMA 4X weather-resistant enclosure, the TF115-001 is engineered for long-lasting performance in harsh environments. Its remote 5-foot capillary sensor delivers fast and accurate temperature sensing, while the large, easy-to-read adjustment dial allows simple temperature control. The flexible mounting design makes installation convenient for both new projects and retrofit applications.

Ideal Applications

• Roof and gutter de-icing systems
• Pipe freeze protection systems
• Commercial facilities
• Industrial buildings
• Agricultural installations
• Cold weather freeze protection applications

Important: This thermostat is intended for roof and gutter de-icing and pipe freeze protection systems. It is not suitable for embedded snow melting applications in pavement.

Features & Benefits

• Designed for reliable line voltage temperature control

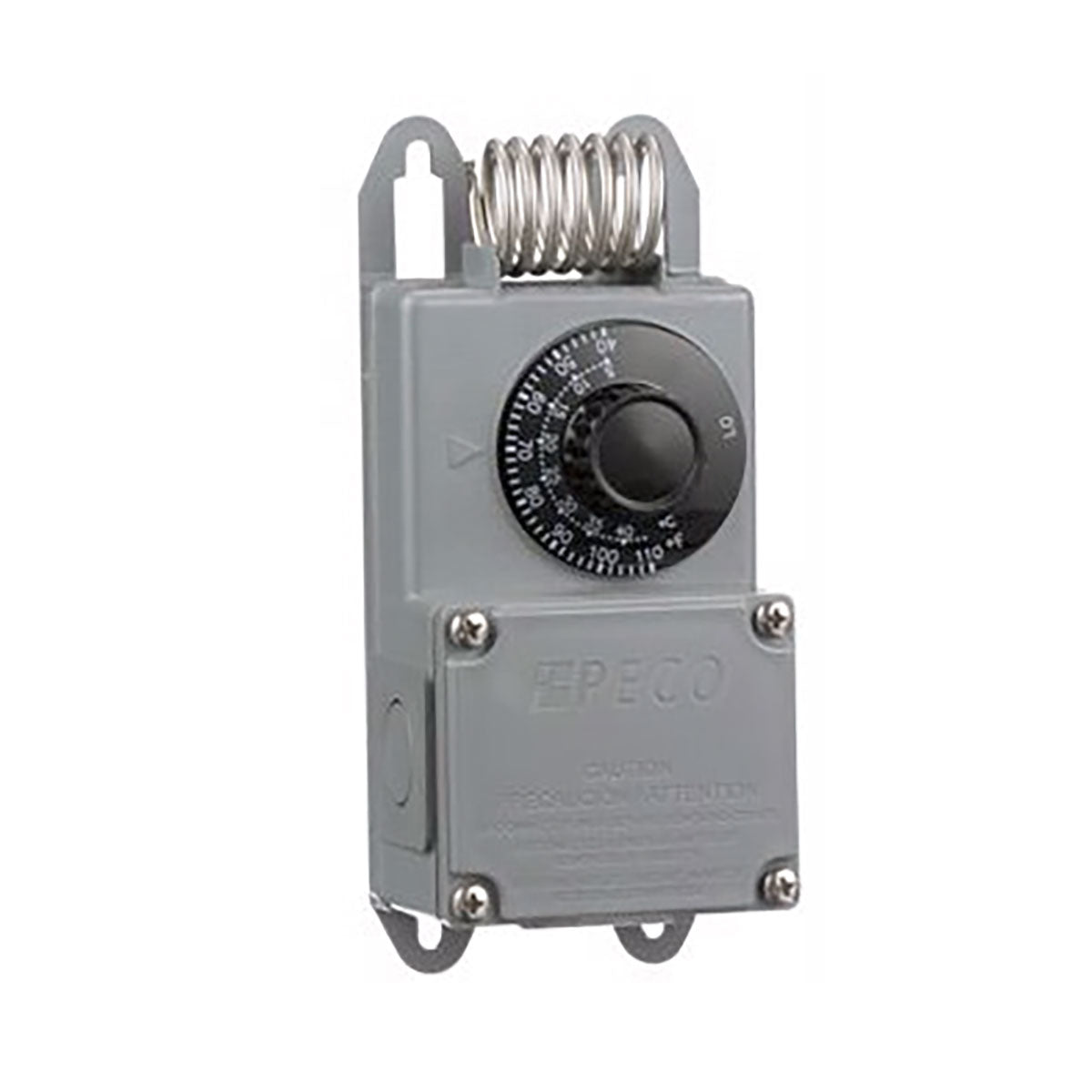

• Weather-resistant NEMA 4X enclosure complies with NEC Article 547

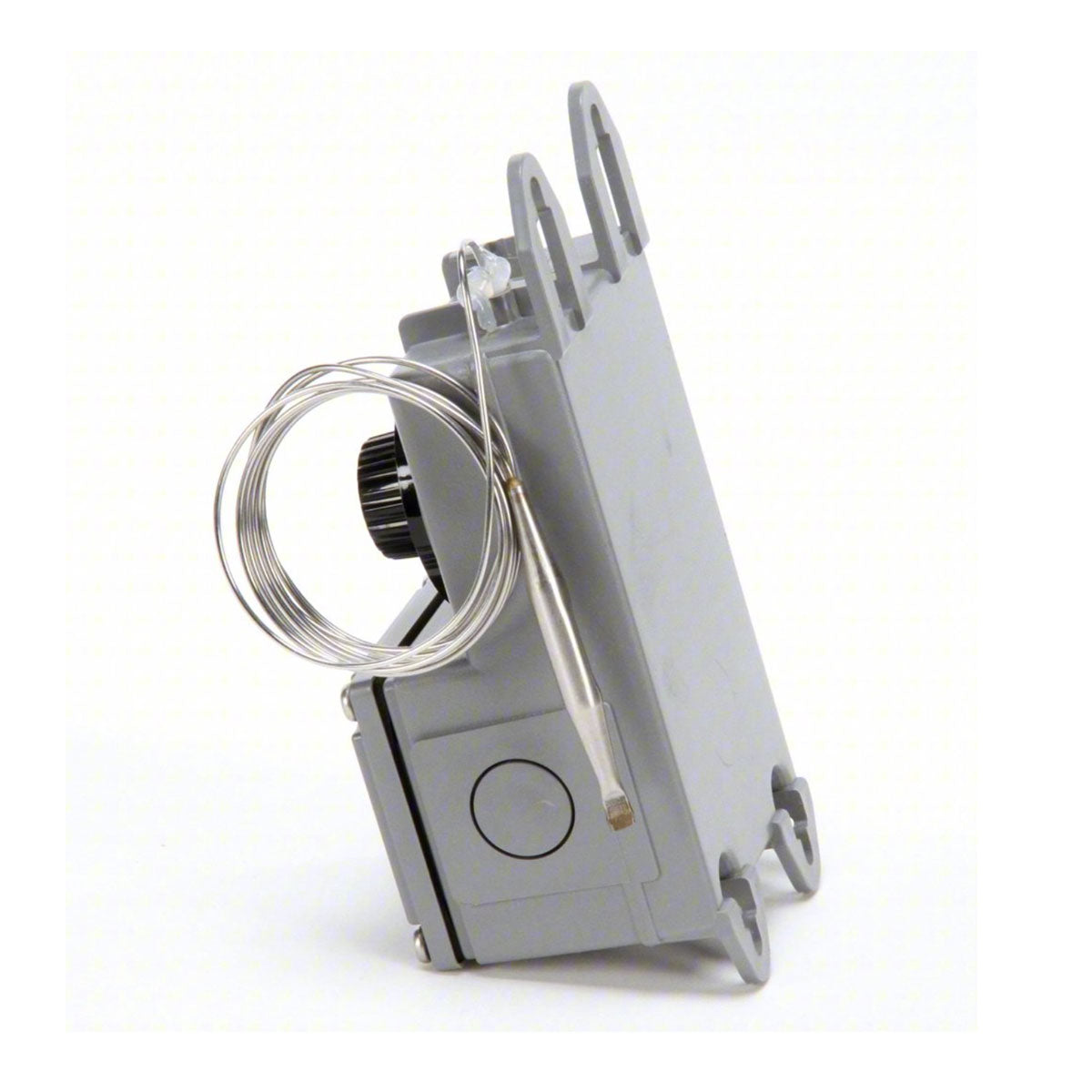

• Remote 5-foot capillary sensor for responsive temperature monitoring
• Corrosion-resistant construction for long service life

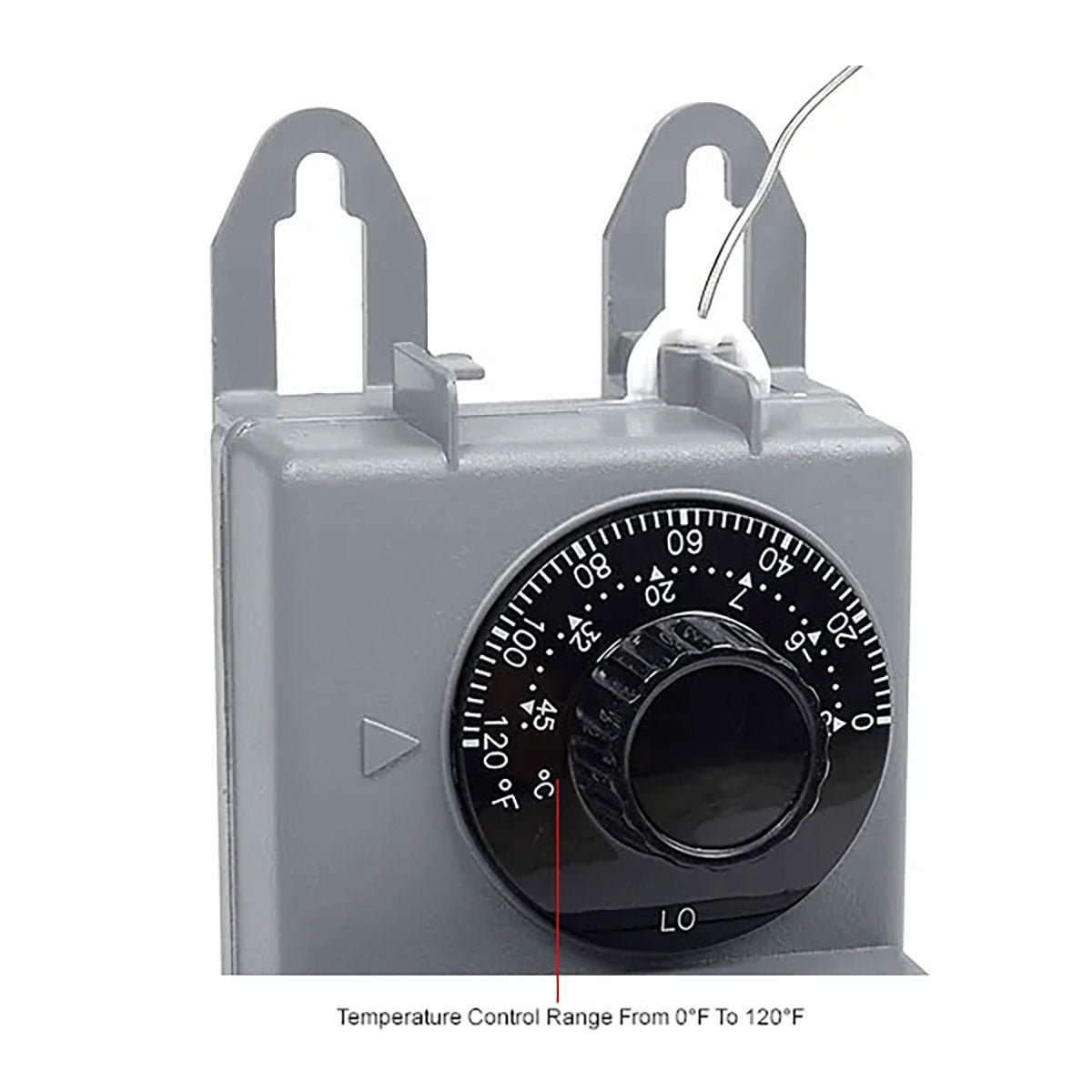

• Large, highly visible temperature adjustment dial

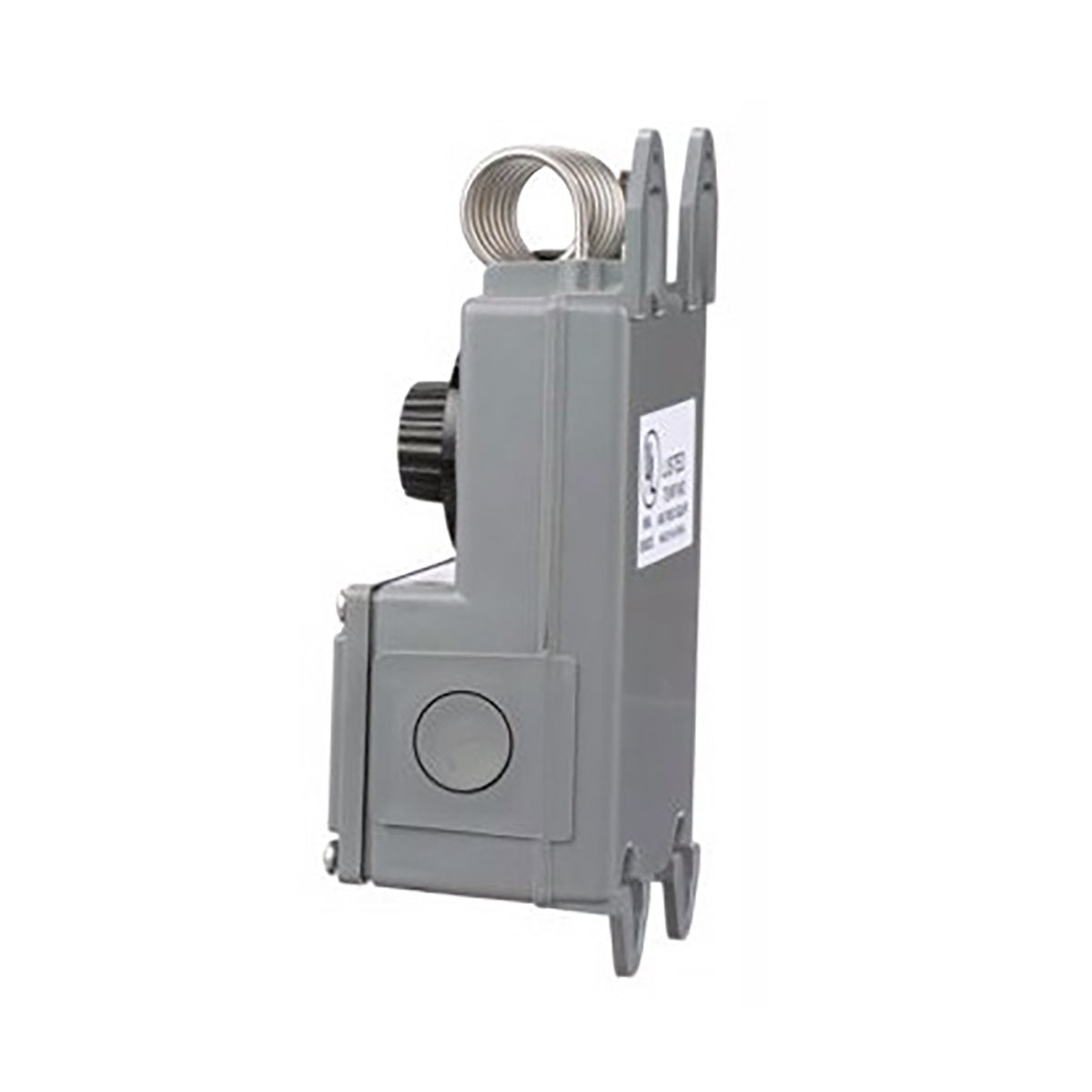

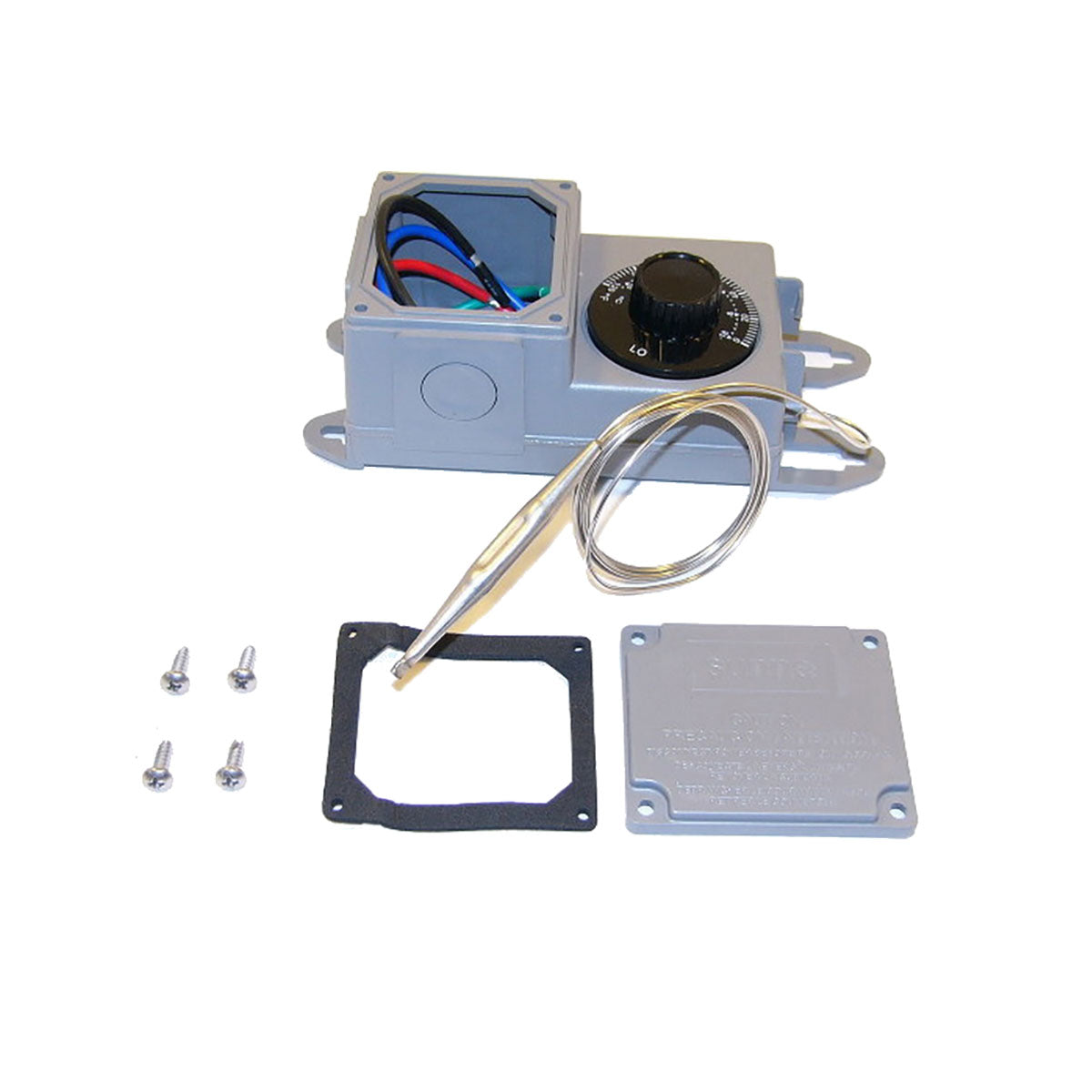

• Multiple mounting positions for installation flexibility
• High level of temperature accuracy and sensitivity

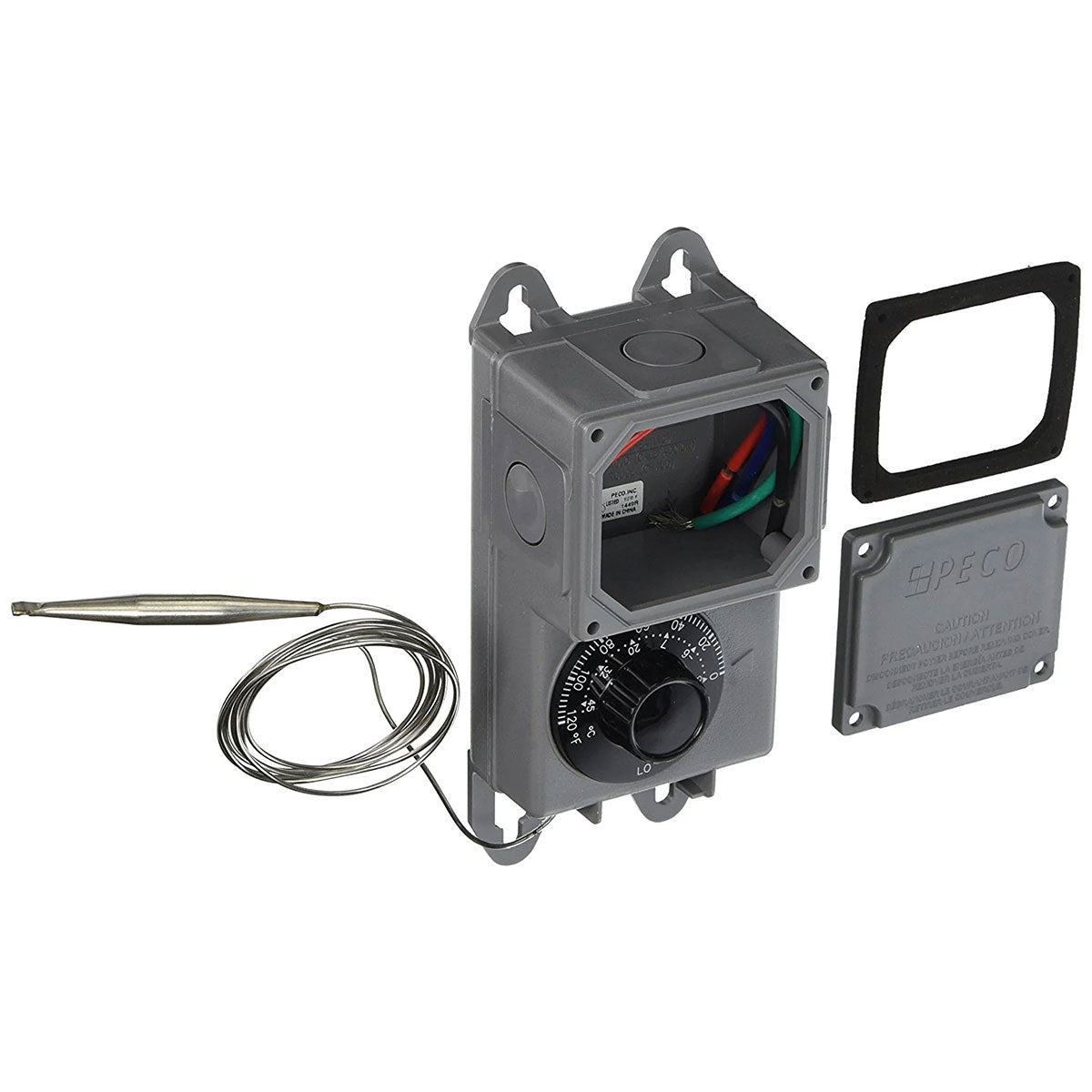

• Single Pole Double Throw (SPDT) switch
• UL and CSA certified

Applications

The Warmup TF115-001 is an excellent solution for controlling heating cable systems that help prevent ice formation and freezing damage. It is commonly used on roof edges, gutters, downspouts, exposed piping, and other areas requiring dependable freeze protection during cold weather.

This thermostat is suitable for use with:

• Warmup NAMSR Roof & Gutter heating cable
• Warmup NAMSRK Roof & Gutter heating cable
• Warmup WODH Roof & Gutter heating cable

Specifications

• Product Code: TF115-001
• Operating Voltage: 120 / 208 / 240 / 277V
• Temperature Range: 40°F to 110°F (4°C to 43°C)
• Switch Action: Single Pole Double Throw (SPDT)
• Remote Sensor: 5 ft capillary sensor
• Enclosure: NEMA 4X
• Weight: 2.1 lb (0.49 kg)
• Dimensions: 3.1 in W × 6.5 in H × 2.5 in D (7.9 × 16.5 × 6.4 cm)
• Full Load Amperage Rating: 16A @ 120V, 13A @ 208V, 12A @ 240V, 10A @ 277V
• Certifications: UL Listed and CSA Certified

Compatibility

• Compatible with Warmup NAMSR heating cable
• Compatible with Warmup NAMSRK heating cable
• Compatible with Warmup WODH heating cable
• Designed for roof and gutter de-icing systems
• Designed for pipe freeze protection systems
• Not suitable for embedded snow melting systems installed in pavement

Installation Notes

The TF115-001 offers flexible mounting options to simplify installation in a variety of locations. Its remote capillary sensor should be positioned where accurate ambient temperature monitoring is required for proper operation of the connected heating cable system. Always follow the manufacturer's installation instructions and applicable local electrical codes.
