Raimondi 45° Rough Finish Bevel Wheel for Bulldog - BDW45RF

Raimondi 45° Rough Finish Bevel Wheel for Bulldog Machines - BDW45RF

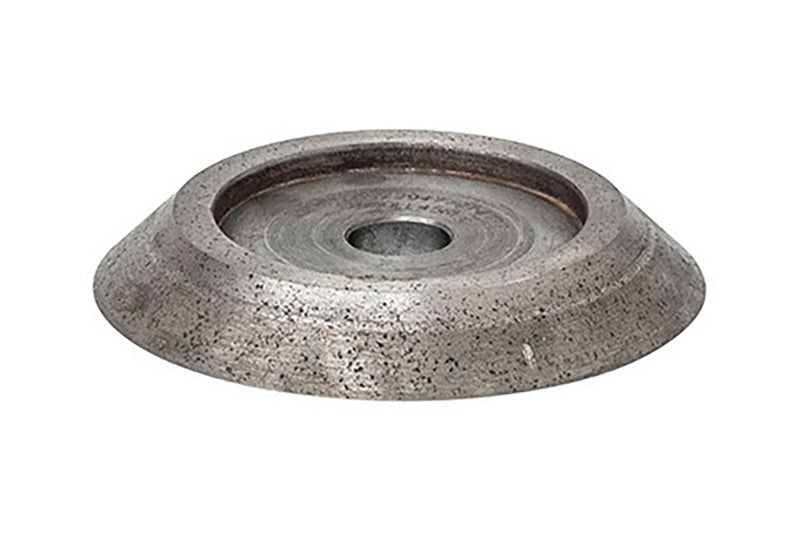

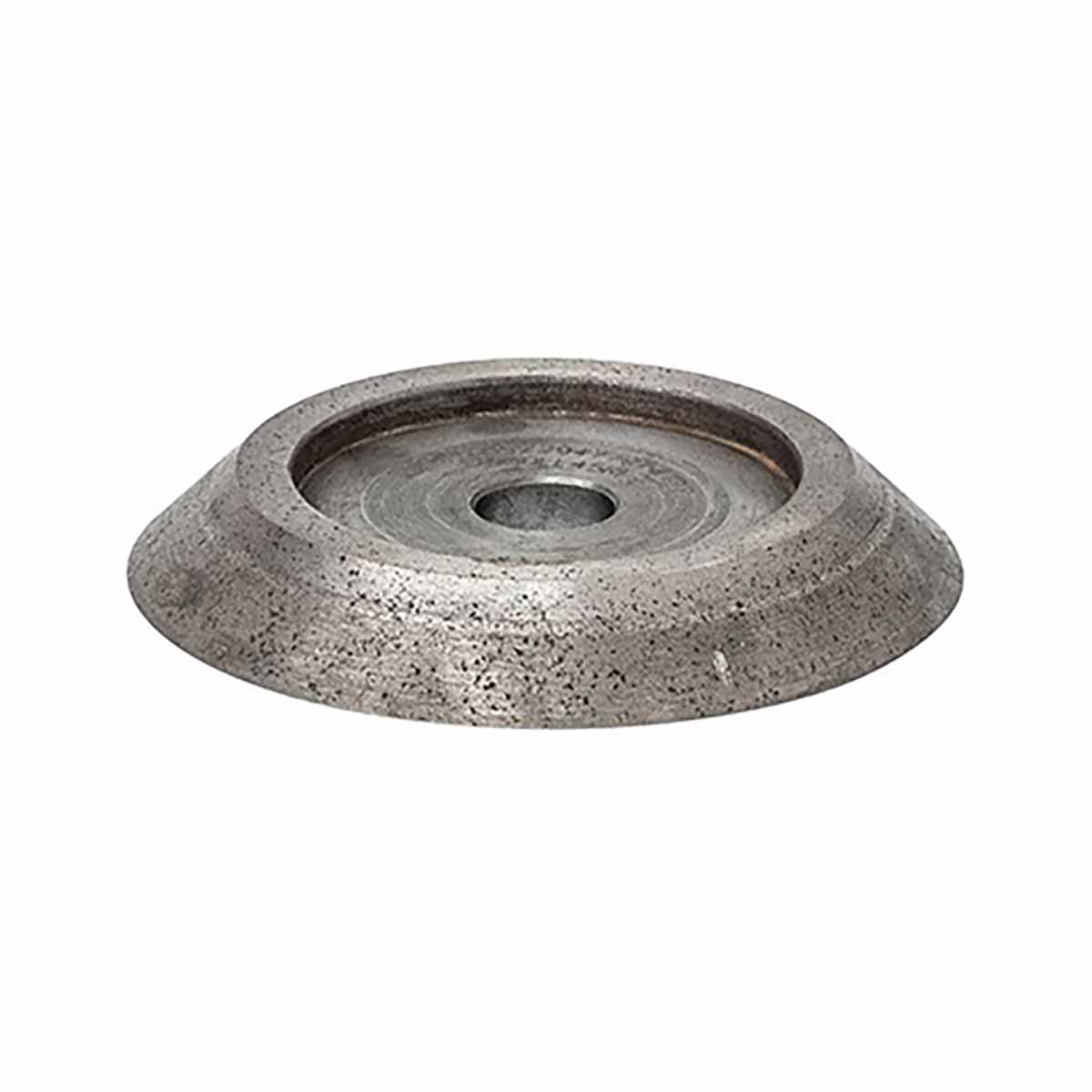

The Raimondi BDW45RF Rough Finish Bevel Wheel is designed for the second stage of 45° bevel profiling on compatible Raimondi Bulldog machines and back-finishers. Used after the initial milling wheel, it prepares the beveled edge for the subsequent polishing process.

This wheel is intended for the rough-finishing stage and features a 15 mm bevel with a 160-grit abrasive surface.

Product Specifications

• Brand: Raimondi
• Model: BDW45RF
• Application: 45° bevel rough finishing
• Process stage: Step 2 of 2
• Bevel size: 5/8" (15 mm)
• Wheel diameter: 4 1/2" (115 mm)
• Arbor size: 25/32" (20 mm)
• Abrasive grit: 160 grit, rough finish
• Material: Hard-material resin, as specified in the supplied product information

How It Works

The 45° bevel process uses two wheels:

• Step 1 - Milling Wheel: Performs the initial shaping of the 45° bevel. The BDW45 milling wheel is not included with this listing.
• Step 2 - Rough Finish Wheel: The BDW45RF wheel refines the bevel and prepares the material for polishing.

Compatible Machines

• Raimondi Bulldog BD1WD
• Raimondi Bulldog BD2WD
• Raimondi back-finisher BDSABF
• Raimondi back-finisher BDCBF

The 45° milling and rough-finish wheels are designed for use with the compatible Bulldog machine series, including the back-finishers listed above.
