Raimondi Step 2 Continuous Diamond Wheel for 30mm Half Bullnose - BDW114S2

Raimondi Step 2 Continuous Diamond Wheel for 30mm Half Bullnose - BDW114S2

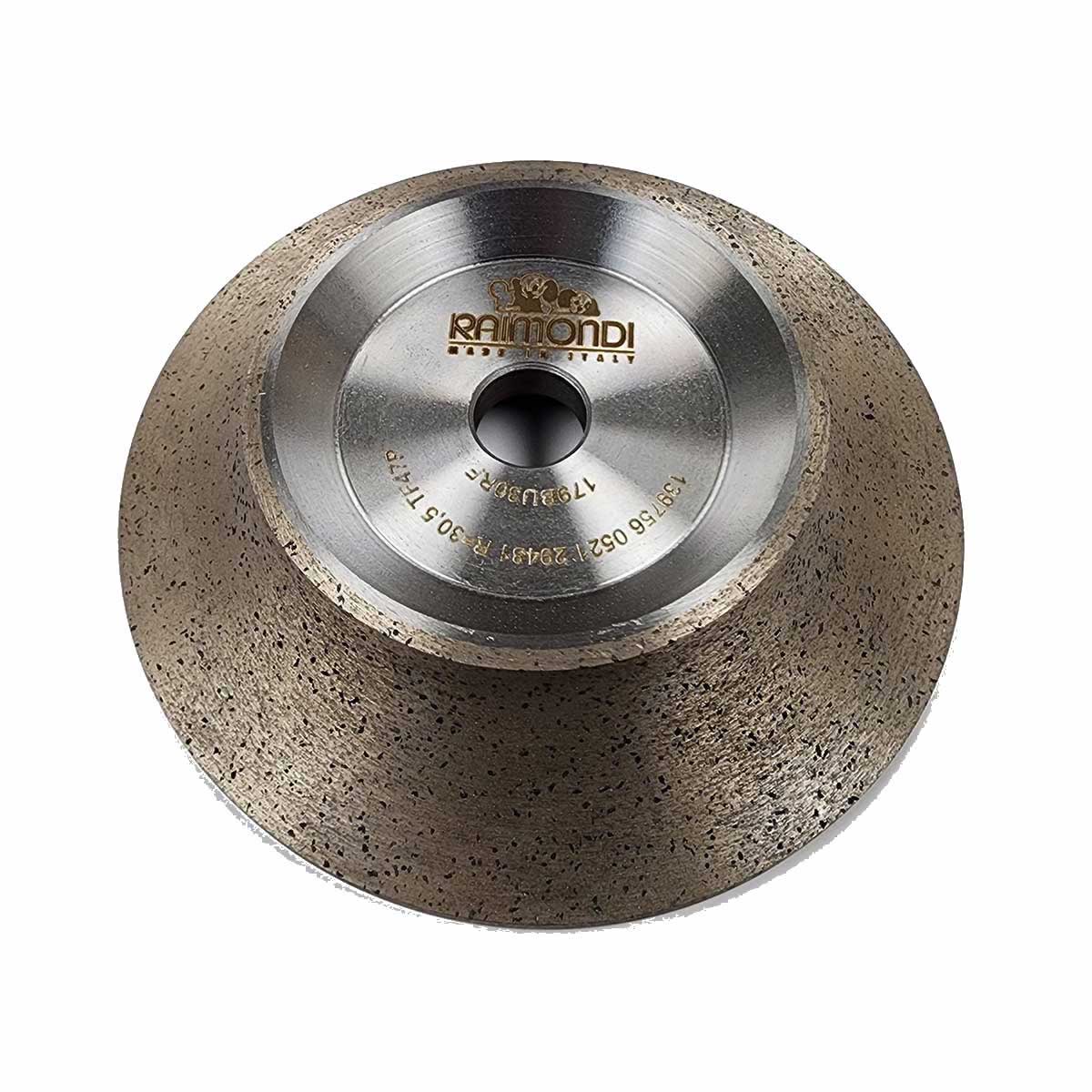

The Raimondi BDW114S2 Step 2 Continuous Diamond Wheel is designed for the second stage of half-bullnose profiling with compatible Raimondi Bulldog machines. After the initial shaping stage, this wheel helps refine the profile and prepare the edge for subsequent finishing and polishing steps.

Designed for use with Raimondi Bulldog and BI-BULLDOG machines, this continuous-rim diamond wheel is part of a multi-step process for producing a finished half-bullnose edge on tile and stone.

Product Specifications

• Brand: Raimondi
• Model: BDW114S2
• Wheel type: Continuous-rim diamond milling wheel
• Profiling radius: 1 1/4" (30 mm)
• Wheel diameter: 6 1/4" (160 mm)
• Arbor size: 25/32" (20 mm)
• Grit: 80
• Process stage: Step 2, rough finishing

Half-Bullnose Profiling and Finishing Steps

• Step 1: Use the segmented milling wheel to rough out the half-bullnose shape.
• Step 2: Use the continuous-rim wheel to refine the profile and prepare the edge for further finishing.
• Step 3: Use the yellow wheel for a honed finish.
• Step 4: Use the red wheel for a satin finish.
• Step 5: Use the grey wheel for a glossy finish.

Compatible Machines

Designed for use with the following Raimondi machines:

• Bulldog BD1WD
• Bulldog BD2WD
• Back-finisher BDSABF
• Back-finisher BDCBF
