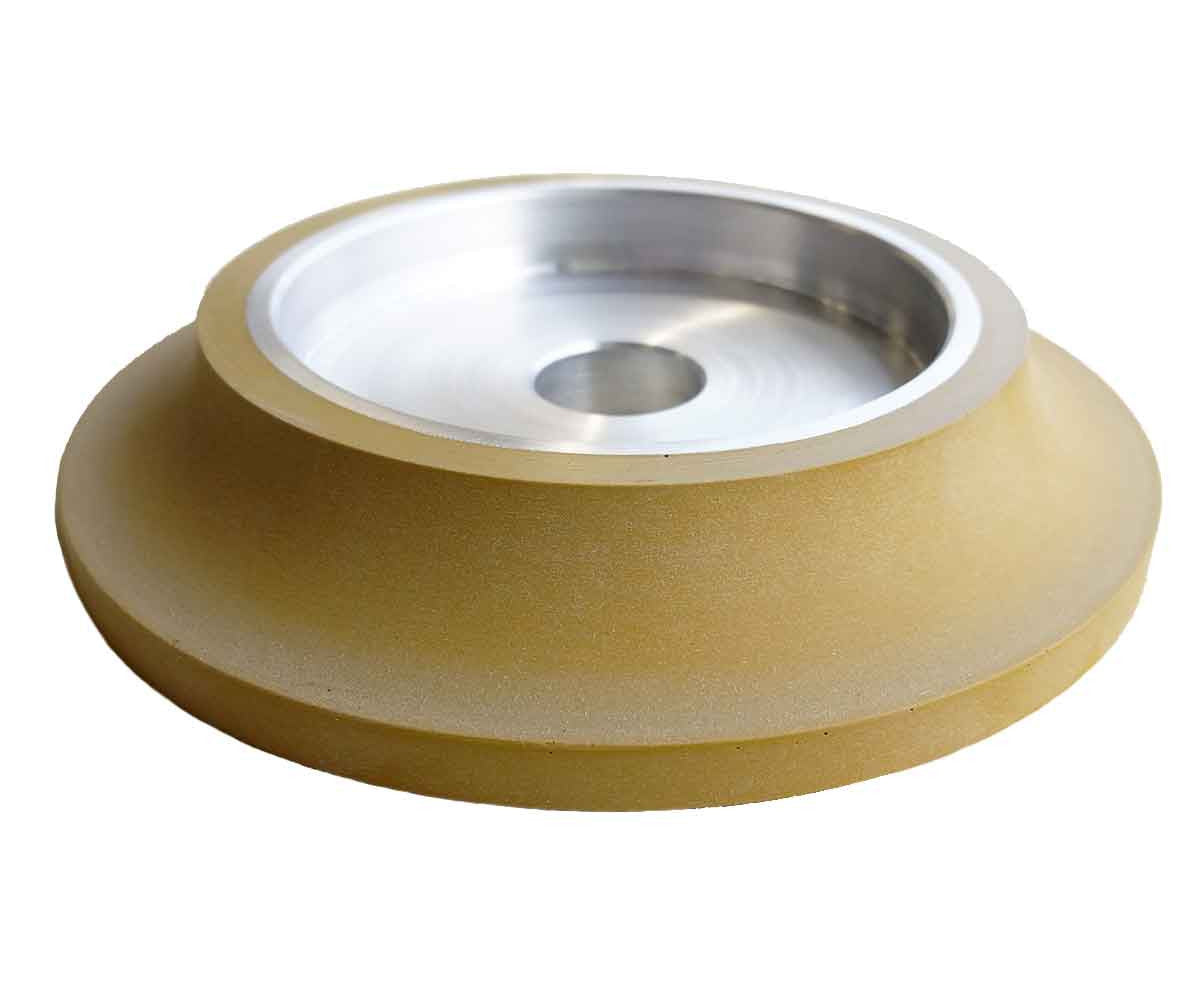

Raimondi Diamond Honed Finish Wheel for Bulldog Machines - Step 3
The Raimondi Diamond Honed Finish Wheel is used in Step 3 of the Raimondi Bulldog bullnose profiling and finishing process. This yellow 400-grit wheel produces a honed finish after the initial milling and rough-finishing stages, before the satin and gloss finishing steps.
Choose the profile size that matches your application: 3/8" (10 mm) or 5/8" (15 mm). Both versions feature a 5" (125 mm) diameter and a 25/32" (20 mm) arbor. Raimondi states that its wheels are tested and balanced to provide profiling results with compatible Bulldog machines.
Product Specifications
- Brand: Raimondi
- Application: Honed finishing for bullnose profiles
- Process stage: Step 3
- Wheel color: Yellow
- Finish: Honed
- Grit: 400 grit
- Available profile sizes: 3/8" (10 mm) and 5/8" (15 mm)
- Wheel diameter: 5" (125 mm)
- Arbor size: 25/32" (20 mm)
- Material: Hard-material resin
- Models: BDW38S3NT (3/8") and BDW58S3NT (5/8")
Choose Your Wheel Size
- 3/8" (10 mm): Model BDW38S3NT
- 5/8" (15 mm): Model BDW58S3NT
Five-Step Bullnose Profiling and Finishing Process
- Step 1 - Milling: The segmented milling wheel roughs out the profile shape.
- Step 2 - Rough Finish: The rough-finish wheel refines the initial profile.
- Step 3 - Honed Finish: This yellow 400-grit wheel produces the honed finish.
- Step 4 - Satin Finish: The red 800-grit wheel produces the satin finish.
- Step 5 - Gloss Finish: The grey 1500-grit wheel completes the process with a glossy finish.
Compatible Machines
- Raimondi Bulldog BD1WD
- Raimondi Bulldog BD2WD
- Raimondi back-finisher BDSABF
- Raimondi back-finisher BDCBF
Additional Applications
Raimondi's milling and rough-finish wheels can also be used to create 45° bevels. Those wheels are available in 3/8" (10 mm) and 5/8" (15 mm) sizes. The Step 3 honed finish wheel listed here is intended for the finishing stage rather than the initial shaping of the profile.
