Raimondi Diamond Gloss Finish Wheel for Bulldog Machines - Step 5
Description
Description
Raimondi Diamond Gloss Finish Wheel for Bulldog Machines - Step 5

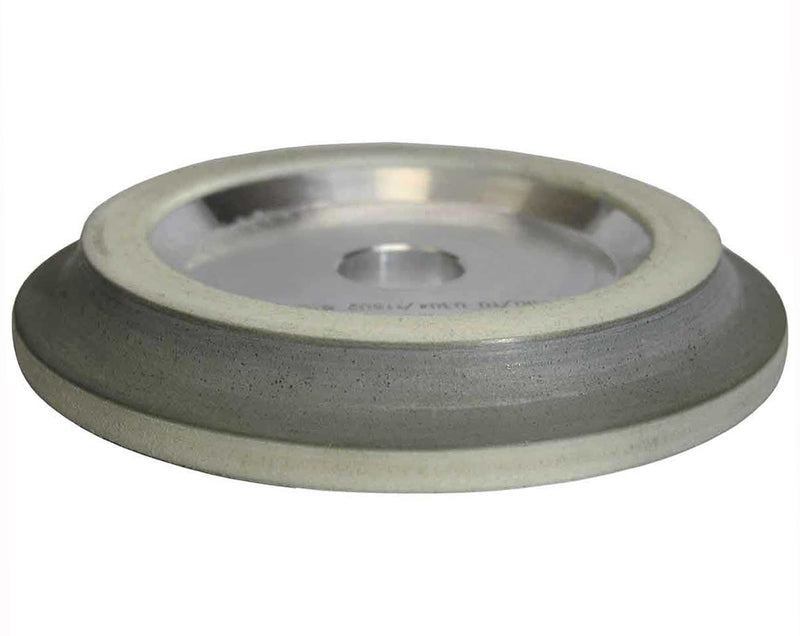

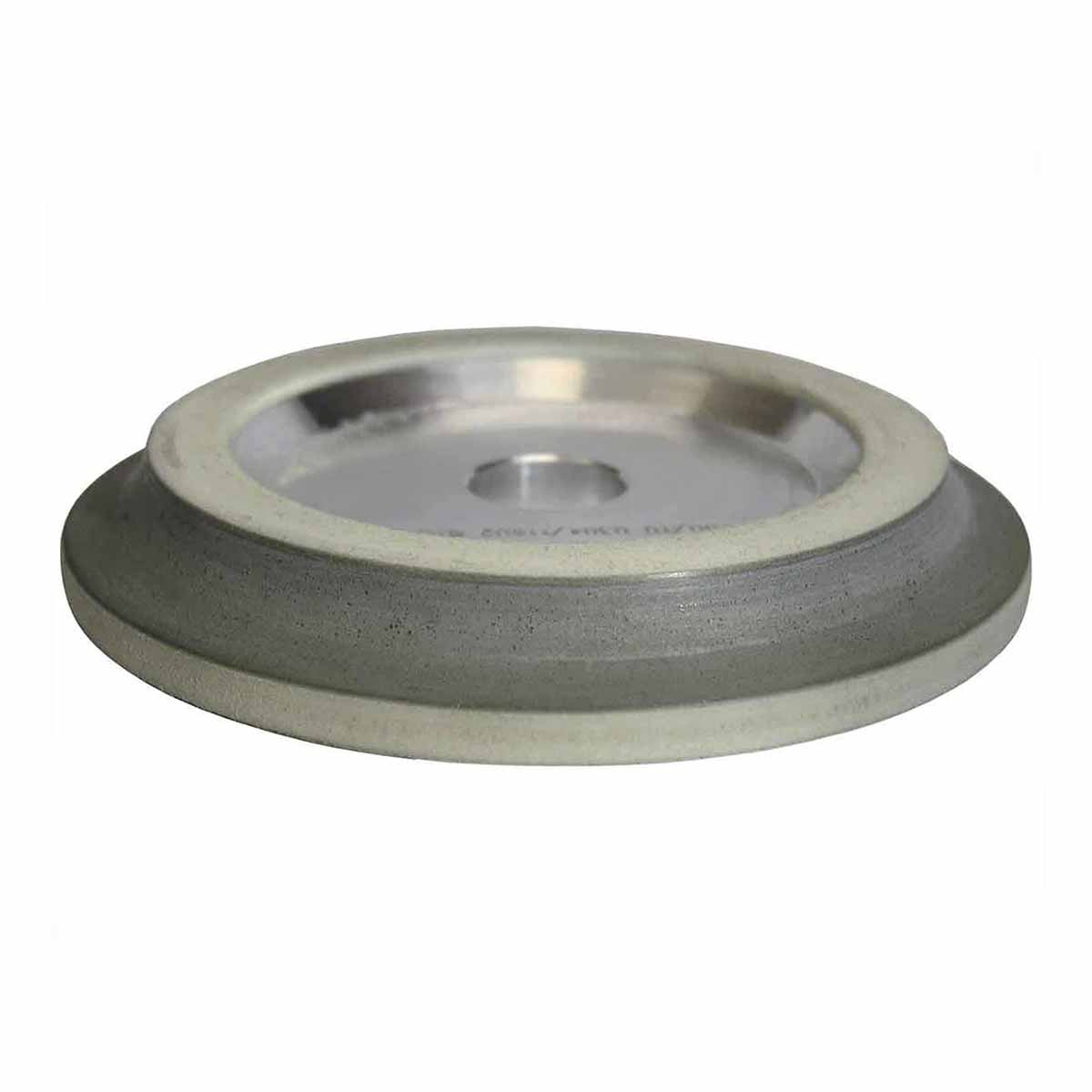

The Raimondi Diamond Gloss Finish Wheel is the final wheel in the five-step bullnose profiling and finishing process for compatible Raimondi Bulldog machines and back-finishers. This grey 1500-grit wheel is designed to produce a glossy finish after the earlier milling, rough-finishing, honing, and satin-finishing stages.
Choose the profile size that matches your application: 3/8" (10 mm) or 5/8" (15 mm). Both versions feature a 5" (125 mm) diameter and a 25/32" (20 mm) arbor.
Product Specifications
- Brand: Raimondi
- Application: Diamond gloss finishing for bullnose profiles
- Process stage: Step 5
- Wheel color: Grey
- Grit: Gloss 1500 grit
- Available profile sizes: 3/8" (10 mm) and 5/8" (15 mm)
- Wheel diameter: 5" (125 mm)
- Arbor size: 25/32" (20 mm)
- Material: Hard-material resin
- Models: BDW38S5NT (3/8") and BDW58S5NT (5/8")
Choose Your Wheel Size
- 3/8" (10 mm): Model BDW38S5NT
- 5/8" (15 mm): Model BDW58S5NT
Five-Step Bullnose Profiling and Finishing Process
- Step 1 - Milling: A segmented milling wheel roughs out the profile shape.
- Step 2 - Rough Finish: The rough-finish wheel refines the initial profile.
- Step 3 - Honed Finish: The yellow wheel produces a honed finish.
- Step 4 - Satin Finish: The red wheel produces a satin finish.
- Step 5 - Gloss Finish: This grey 1500-grit wheel completes the process with a glossy finish.
Compatible Machines
- Raimondi Bulldog BD1WD
- Raimondi Bulldog BD2WD
- Raimondi back-finisher BDSABF
- Raimondi back-finisher BDCBF
Additional Applications
Raimondi's milling and rough-finish wheels can also be used to create 45° bevels. Those wheels are available in 3/8" (10 mm) and 5/8" (15 mm) sizes. The Step 5 gloss finish wheel listed here is intended for the final bullnose finishing stage.
