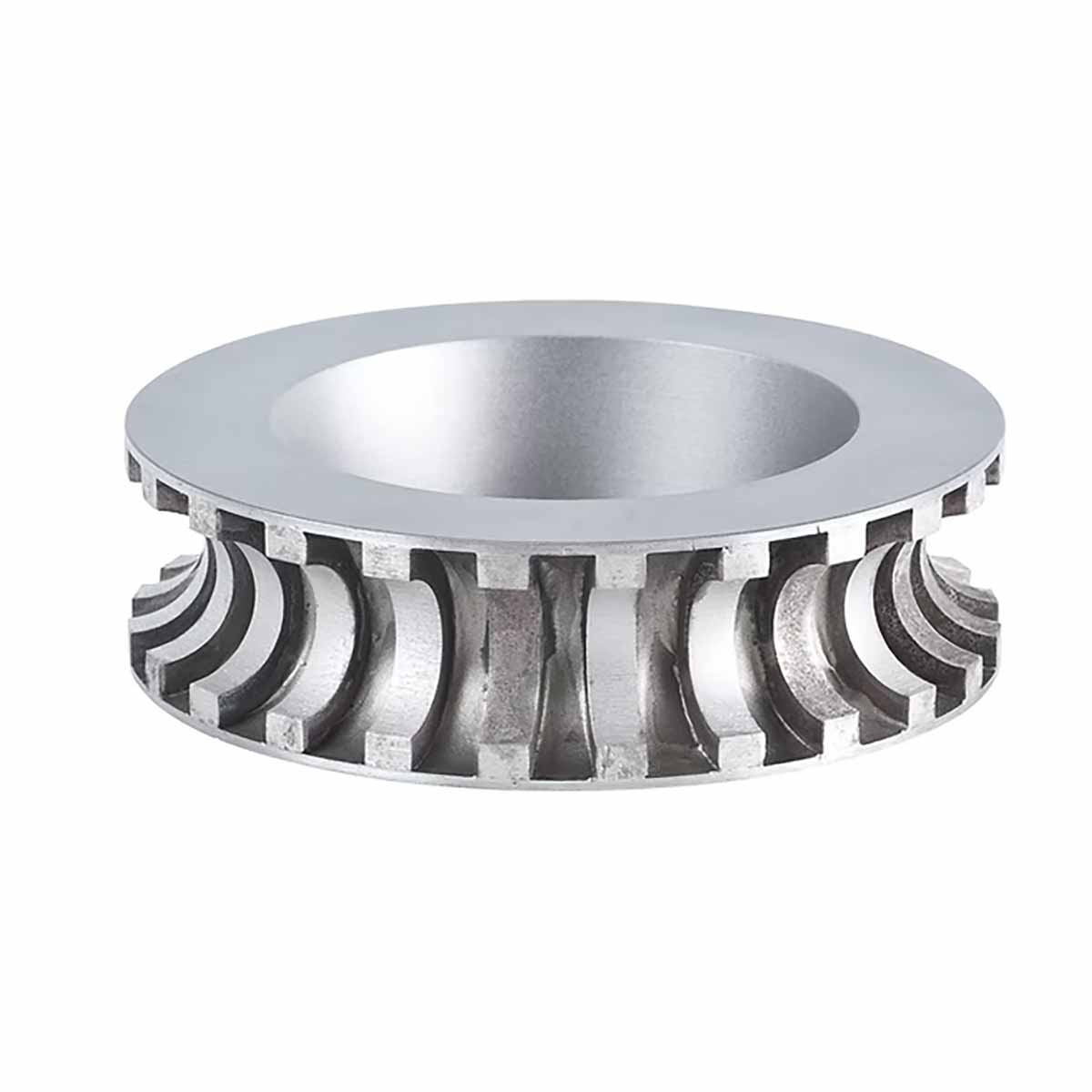

Raimondi Full Bullnose Diamond Rough Wheel 22mm Radius for Bulldog Machines
The Raimondi Full Bullnose Diamond Rough Wheel is designed for shaping full bullnose edges on compatible Raimondi Bulldog and BI-BULLDOG machines. This segmented diamond wheel removes material during the rough shaping stage before the profile is refined with the appropriate rough-finish wheel.
With a 7/8" (22 mm) radius, this wheel is intended for full bullnose profiling. The manufacturer information supplied recommends the Step 1 milling wheel for tiles approximately 2 cm thick, followed by the rough-finish wheel.
Product Specifications
- Brand: Raimondi
- Product type: Full bullnose segmented diamond rough wheel
- Radius: 7/8" (22 mm)
- Wheel diameter: 5" (125 mm)
- Arbor size: 25/32" (20 mm)
- Grit: Under 80, as specified in the supplied product information
- Application: Full bullnose edge shaping
Full Bullnose Profiling Process
- Step 1: Use the milling wheel for initial shaping. The supplied product information recommends this step for tiles approximately 2 cm thick.
- Step 2: Use the rough-finish wheel to refine the full bullnose profile.
Both the milling wheel and rough-finish wheel are available for a 7/8" (22 mm) radius full bullnose profile.

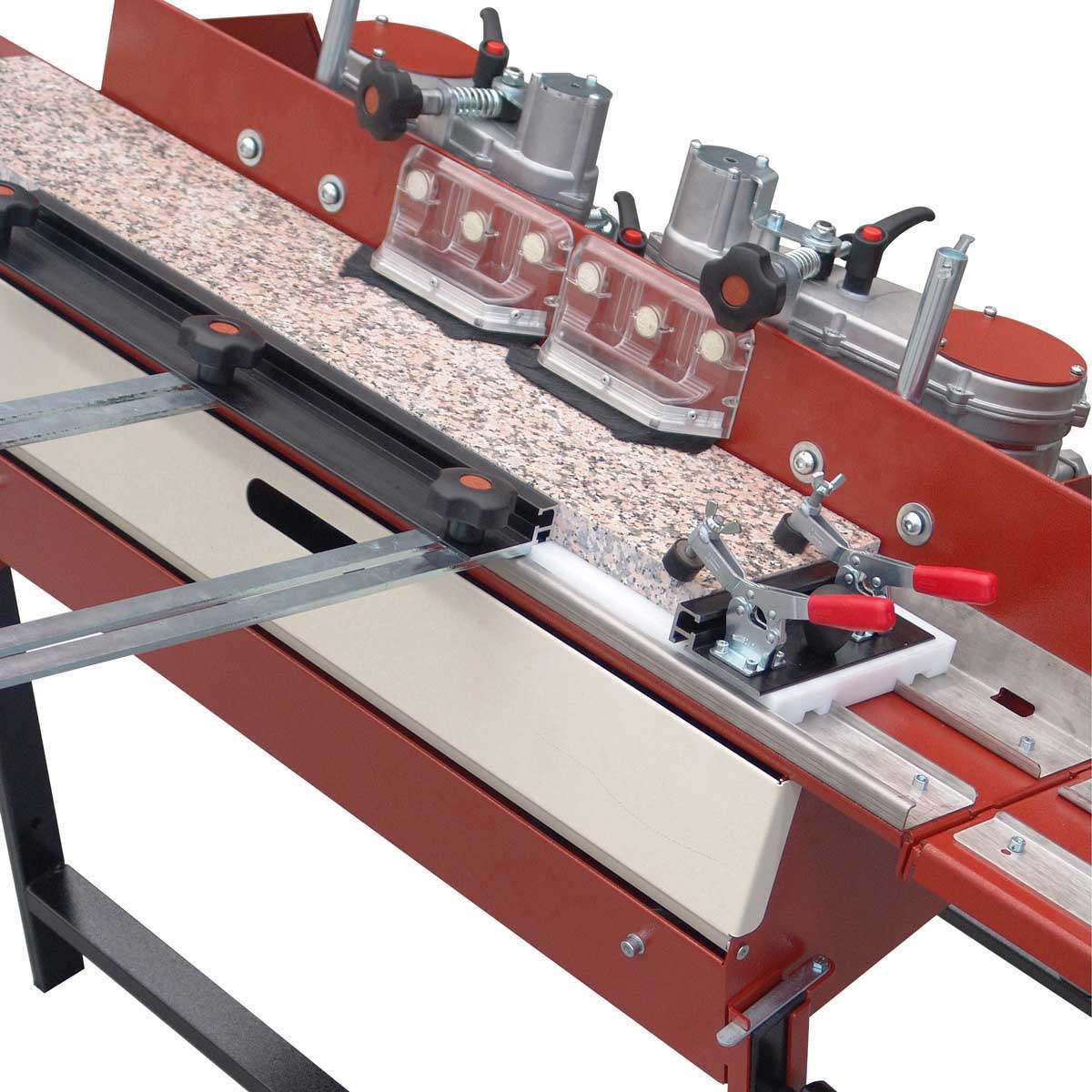

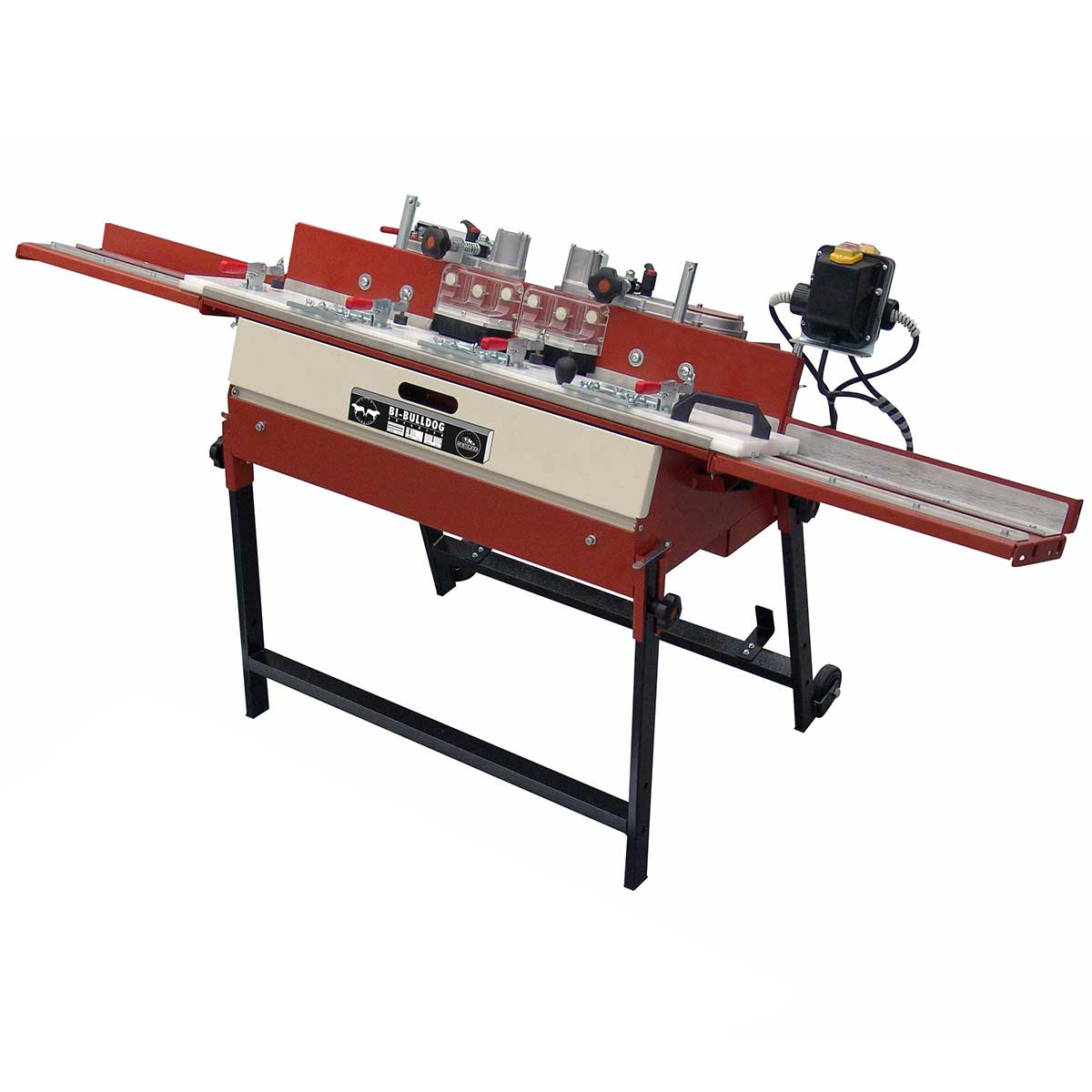

Compatible Machines
- Raimondi Bulldog BD1WD
- Raimondi Bulldog BD2WD
- Raimondi back-finisher BDSABF
- Raimondi back-finisher BDCBF
