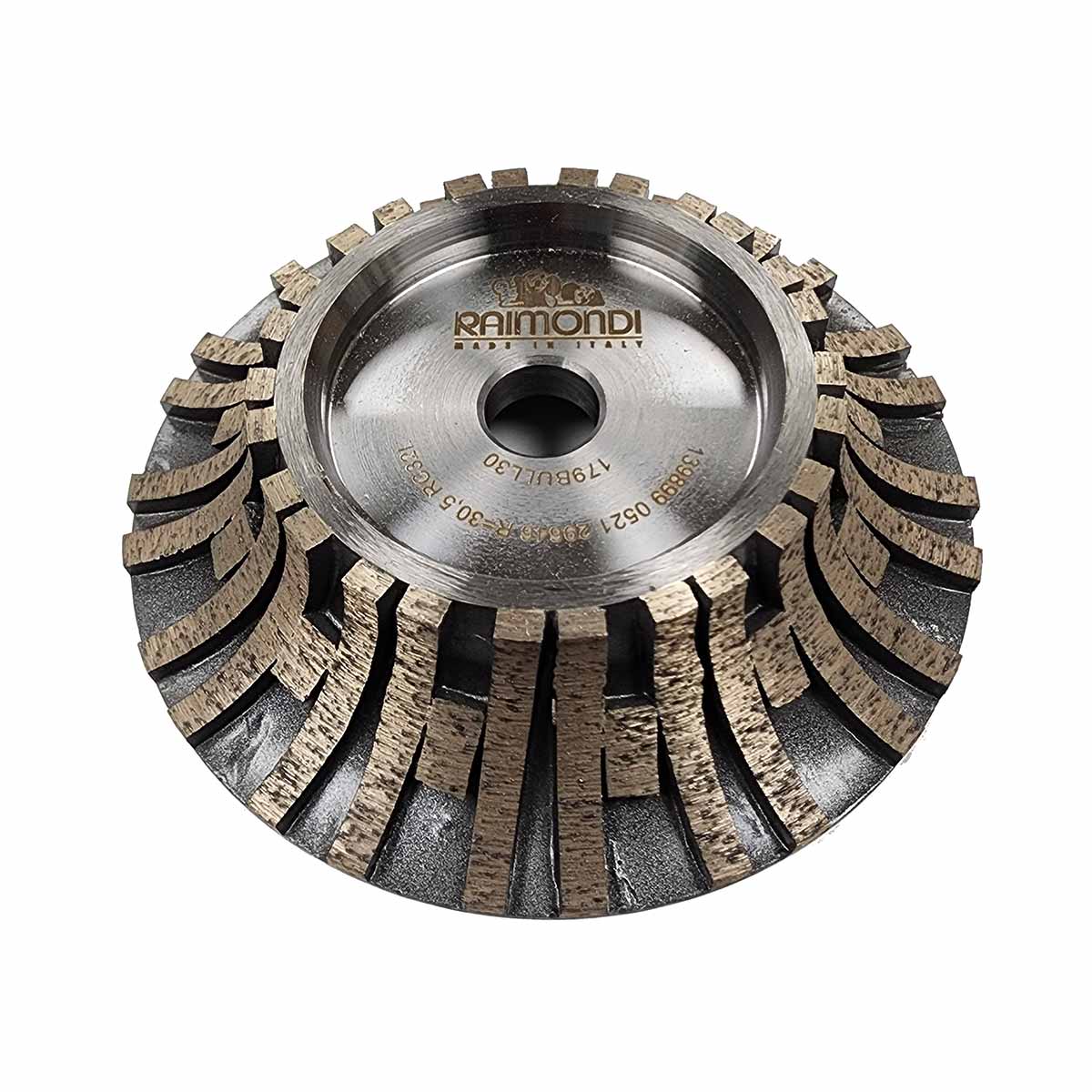

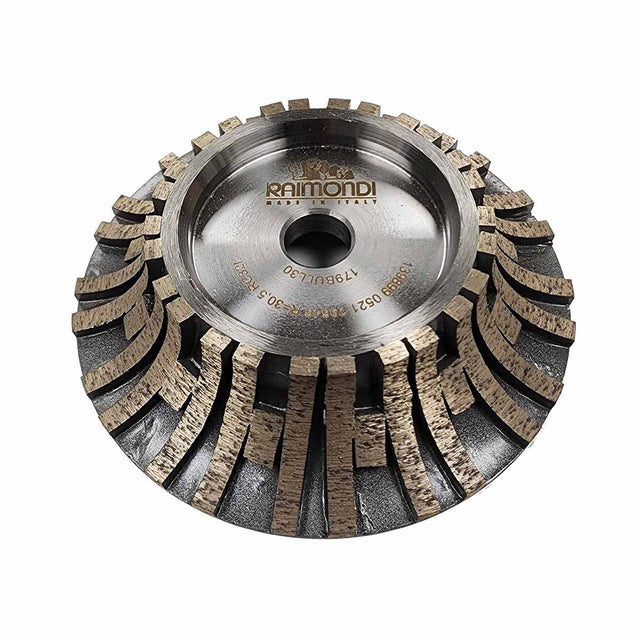

Raimondi Step 1 Continuous Diamond Wheel for 30mm Half Bullnose - BDW114S1
The Raimondi BDW114S1 Step 1 Continuous Diamond Wheel is designed for the first stage of half-bullnose profiling with compatible Raimondi Bulldog machines. It is part of a multi-step wheel system used to shape and finish tile and stone edges.
Designed for Raimondi Bulldog and BI-BULLDOG machines, this diamond wheel is used in the initial profiling stage before the subsequent finishing wheels are applied.
Product Specifications
- Brand: Raimondi
- Model: BDW114S1
- Wheel type: Continuous-rim diamond milling wheel
- Profiling radius: 1 1/4" (30 mm)
- Wheel diameter: 6 1/4" (160 mm)
- Arbor size: 25/32" (20 mm)
- Grit: 80
- Process stage: Step 1, initial profiling
Half-Bullnose Profiling and Finishing Steps
- Step 1: Use the segmented milling wheel to rough out the shape.
- Step 2: Use the continuous wheel for rough finishing.
- Step 3: Use the yellow wheel for a honed finish.
- Step 4: Use the red wheel for a satin finish.
- Step 5: Use the grey wheel for a glossy finish.
Compatible Machines
Designed for use with the following Raimondi machines:
- Bulldog BD1WD
- Bulldog BD2WD
- Back-finisher BDSABF
- Back-finisher BDCBF
