ProPan Ready-to-Tile Waterproof Shower Kit 36" x 60" Side Drain

ProPan Ready-to-Tile Shower Kit 36" x 60" Side Drain Complete Waterproof Shower System

Complete Waterproof Shower System Designed for Fast, Professional Installation

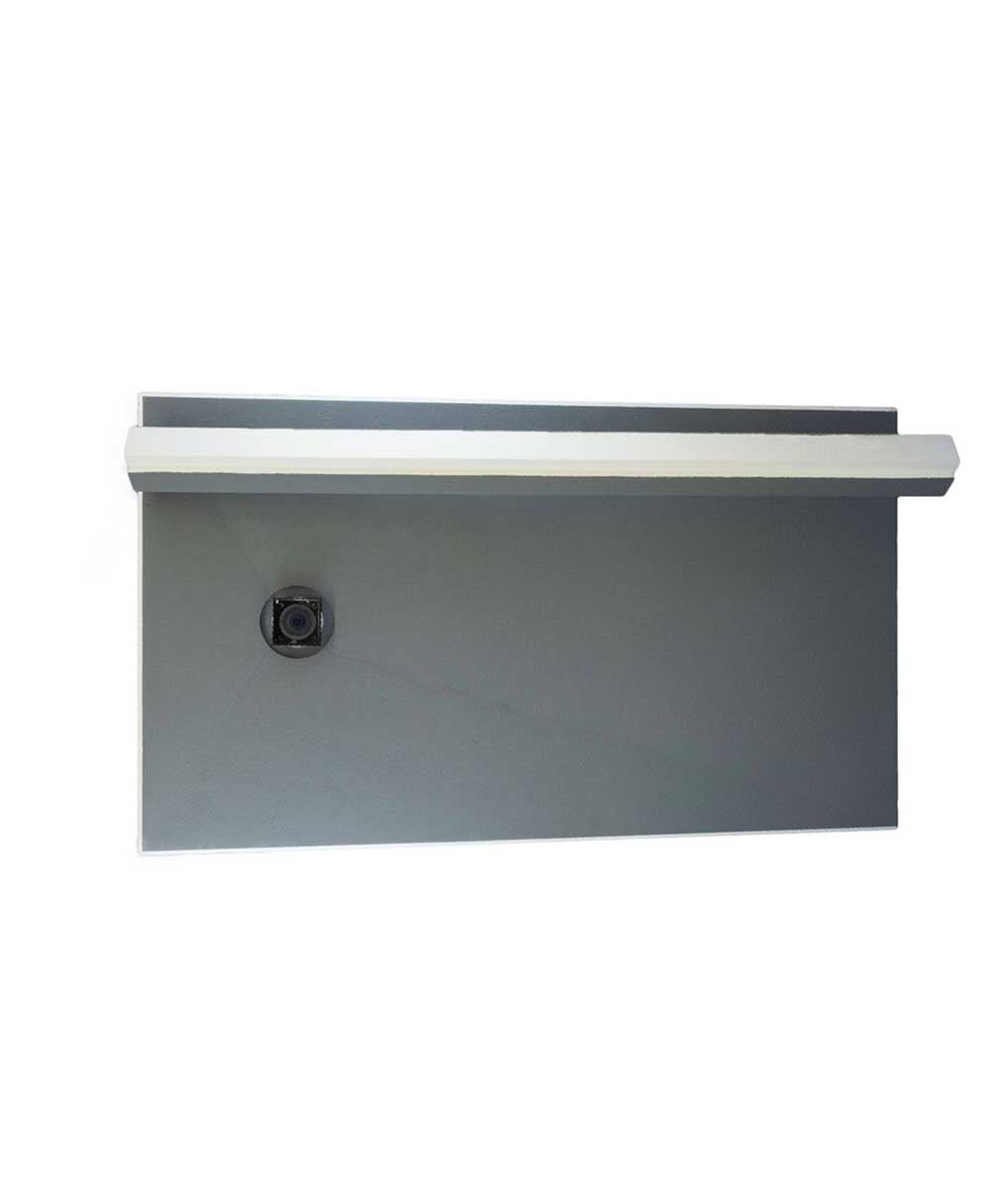

The ProPan Ready-to-Tile Shower Kit provides everything needed to build a fully waterproof tiled shower with significantly less labor than traditional mud bed shower installations. Designed for tub-to-shower conversions, this 36" x 60" side drain configuration features a drain location positioned approximately 19" x 13" from the end, making it ideal for many residential remodeling projects.

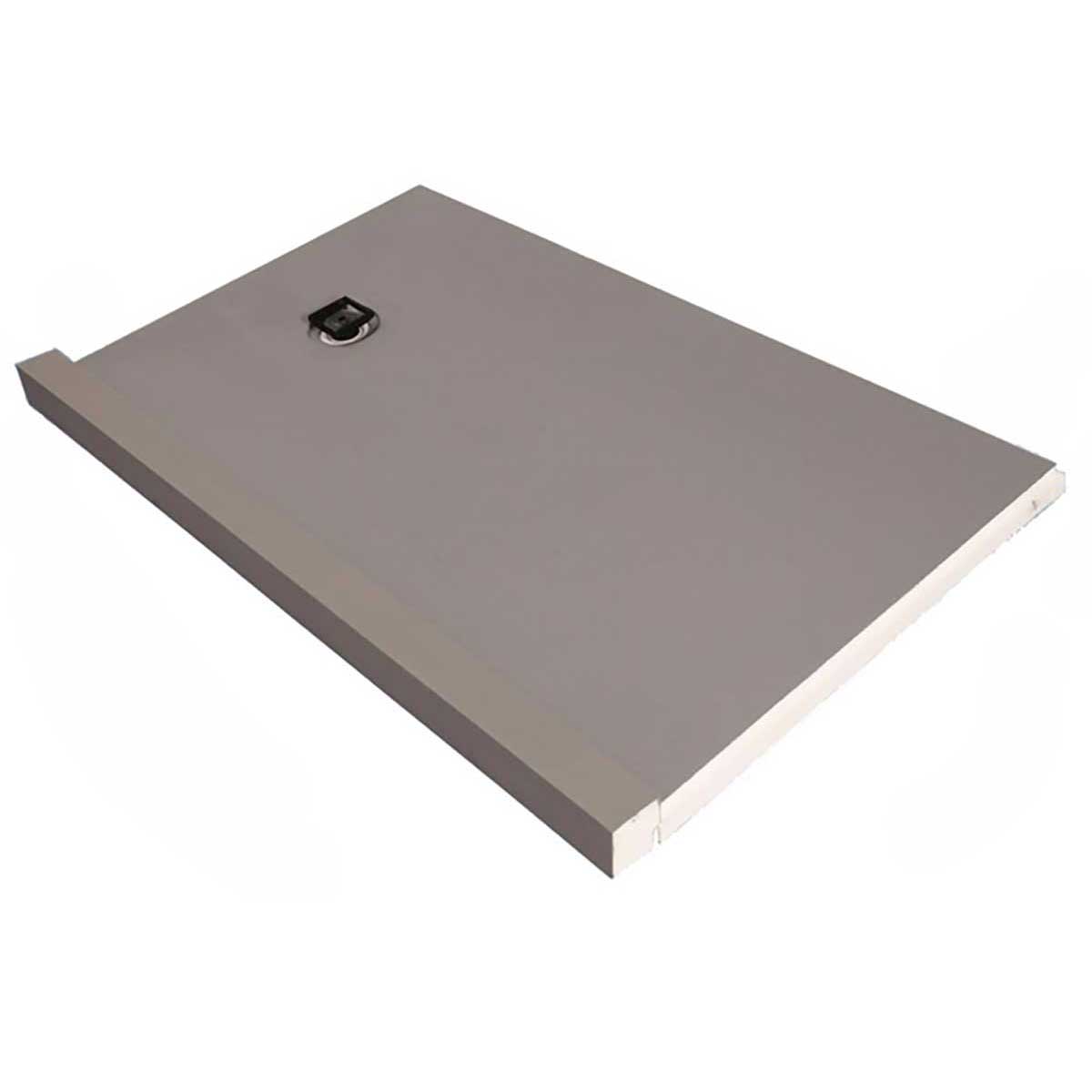

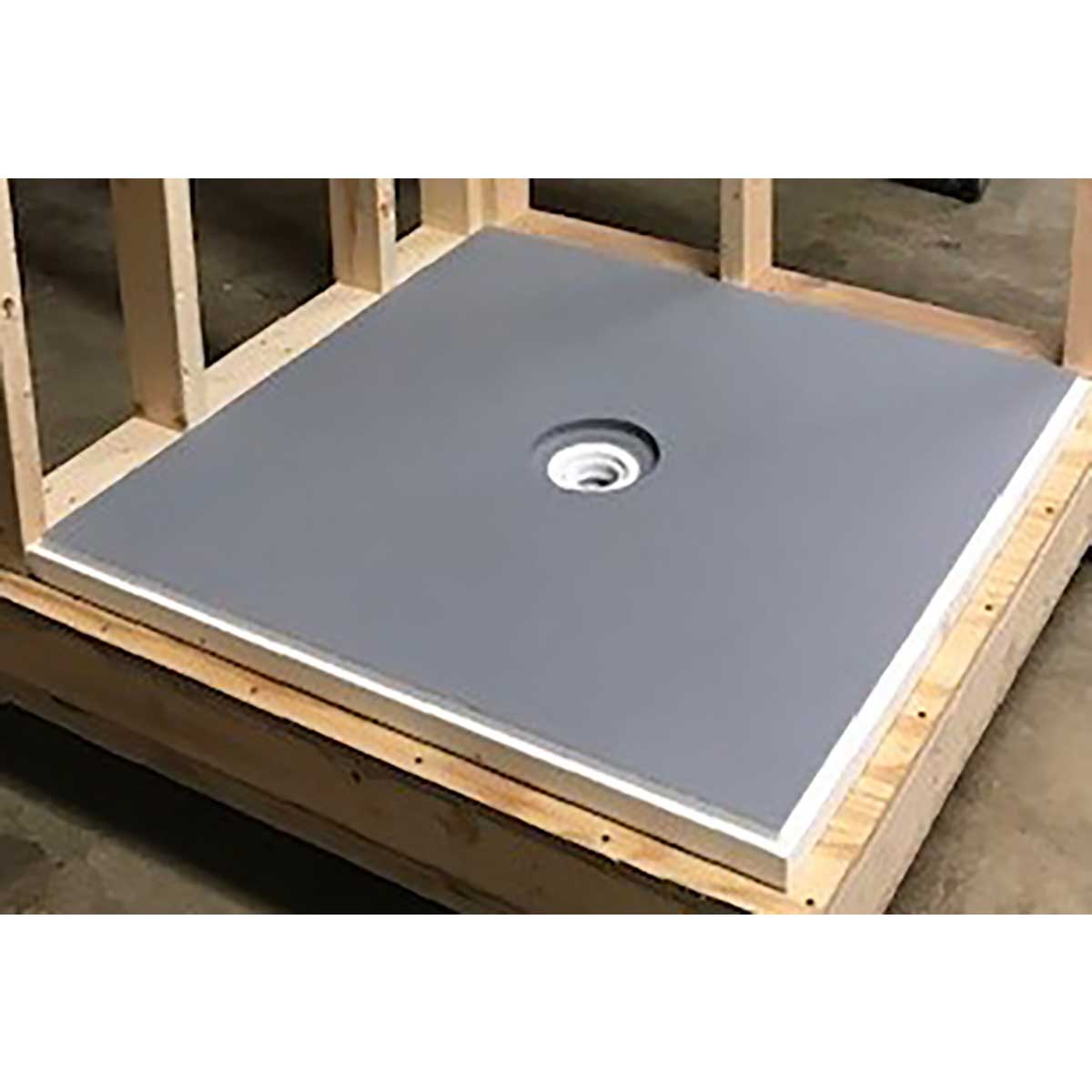

Manufactured in the USA, the ProPan system combines a lightweight, high-density polystyrene shower base reinforced with fiberglass mesh and coated with a durable polymer cement layer for exceptional strength and waterproof protection. When used with the included ProPanel waterproof backer boards, the system creates a complete waterproof shower assembly backed by a system warranty.

The prefabricated shower base features a built-in 1/4" per foot slope that meets industry standards and includes an integrated Ebbe square drain assembly. The shower pan can be trimmed on-site with a circular saw, allowing installers to customize the fit for a variety of residential and commercial applications.

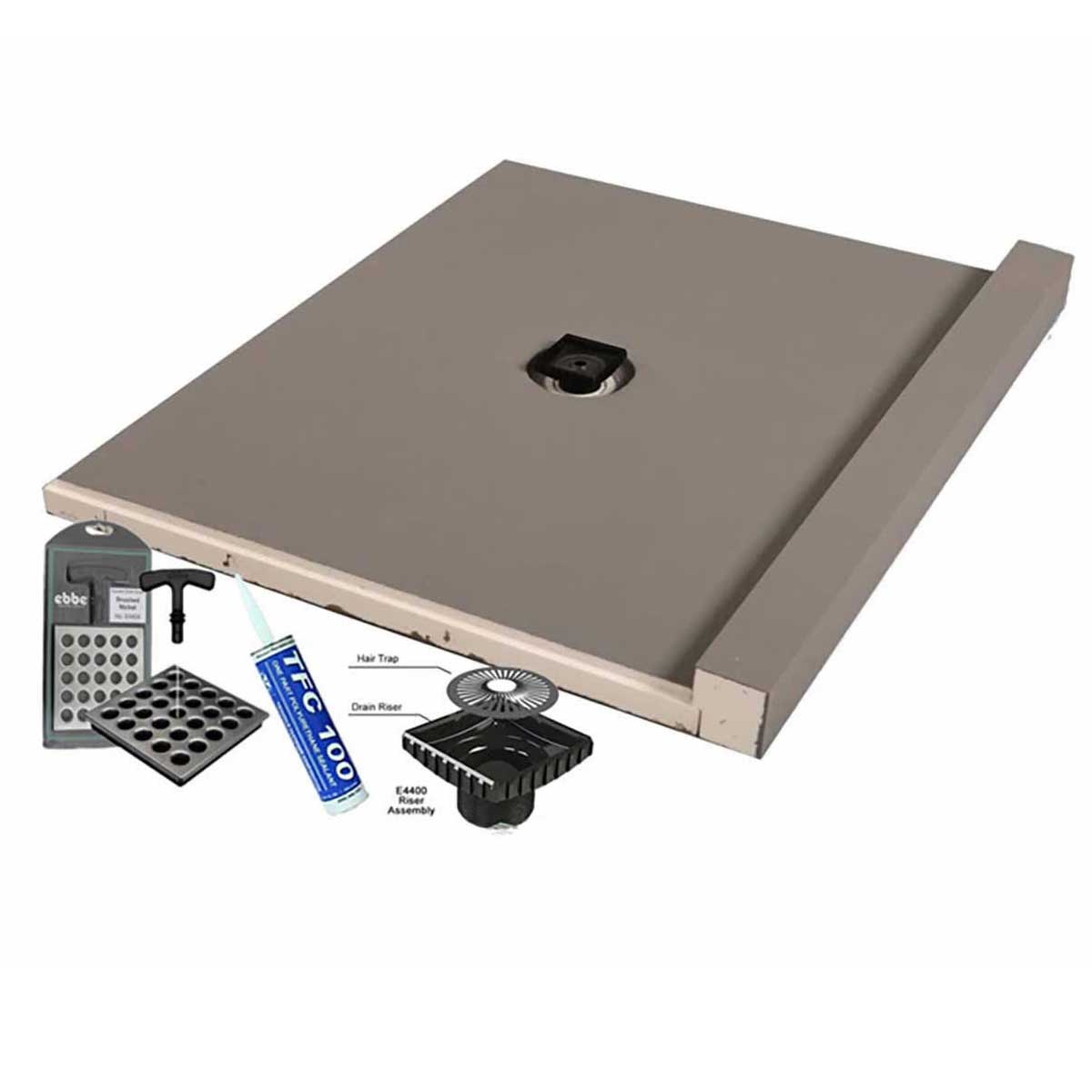

Complete Shower Kit Includes:

• 1 ProPan Shower Base - 36" x 60.5"
• 1 ProPan Curb - 60"
• 6 ProPanel Waterproof Backer Boards - 3' x 5' x 1/2"
• 6 Tubes Polyurethane Sealant - 10.3 oz
• 250 Corrosion Resistant Cap Nail Fasteners
• 1 Ebbe Square Drain Assembly
• 1 Ebbe Drain Hair Trap

The included ProPanel boards provide sufficient coverage for shower walls up to 80" high.

Key Features:

• Complete waterproof shower system in one package
• Ideal for tub replacement and shower remodeling projects
• Built-in 1/4" per foot slope to drain
• Includes premium Ebbe square drain assembly
• Lightweight and easy to transport and install
• Can be cut and modified on-site
• Compatible with PVC or ABS drain connections
• Can be tiled the same day as installation
• Eliminates traditional mud bed construction
• Resistant to mold and moisture damage
• Suitable for residential and commercial installations
• Made in the USA

NEW FEATURE - Compression Drain Assembly Option

ProPan is now available with a field-installed compression drain assembly. In many jurisdictions, local building codes allow the connection to an existing floor drain stub using a compression drain without requiring a licensed plumber. This can simplify installation, reduce labor costs, and make tub-to-shower conversion projects faster and more efficient.

Please verify local plumbing and building code requirements before installation.

Installation Benefits:

• Installs in less than one hour
• No pre-slope required
• No shower liner installation required
• No mud bed construction required
• No separate waterproofing membrane required
• Uses standard thin-set mortar for tile installation
• Compatible with ProPanel niches and shower seats

Drain Finish Options:

This ProPan Shower Kit includes an Ebbe Square Drain. Customers may select from available Ebbe drain grate finishes at no additional charge when ordering.

Certifications:

Listed by IAPMO to comply with UPC PS 106-2010 requirements.

Helpful Resources

• ProPan Specification and Installation Procedure
• How to Install ProPan with ProPanel Shower Pan System
• ProPan Shower Pan MSDS
