35 Inch Wall Linear Shower Drain with Tile Insert - Brushed Stainless Steel
Create a clean, modern shower design with the Serene Drains 35 Inch Wall Linear Shower Drain with Tile Insert. Designed for installation along the shower wall, this drain keeps the drainage channel at the perimeter of the shower while allowing the shower floor tile to continue into the recessed tile insert for a more seamless appearance.
The tile insert is designed to hold a piece of the same tile used on the shower floor. Once the tile is installed inside the insert, the finished tile surface blends with the surrounding shower floor instead of leaving a conventional decorative grate exposed.
The wall linear drain is constructed from 304 stainless steel with a brushed finish and features a center outlet for connection to the shower drain plumbing. The drain body is designed for wall-mount installation and provides a clean solution for modern showers, bathroom renovations, and new construction.
35-inch size refers to the visible drain length. The overall drain body measures approximately 36.57 inches wide, allowing the finished drain to be positioned against the shower wall while the tile insert provides a streamlined finished appearance.
Designed for Tile-In Shower Floors
The recessed tile insert allows the installer to cut a piece of the shower floor tile to fit inside the insert. The tile is installed into the insert so the finished surface sits flush with the surrounding tile, creating a discreet drainage opening along the wall.
This design is especially well suited for contemporary bathrooms where a traditional stainless steel grate would be visually distracting.
Wall-Mount Installation
The drain is designed to be installed at the shower wall rather than in the center of the shower floor. The shower floor is sloped toward the wall drain so water flows naturally into the drainage channel.
Waterproofing Note: Waterproofing is part of the normal shower installation and should be completed by the tile installer according to the waterproofing system being used for the shower. The wall drain is an additional component of the shower drainage system and should be properly integrated into the overall waterproofing installation.
304 Stainless Steel Construction
The drain body is made from 304 stainless steel for durability and corrosion resistance in wet bathroom environments. The brushed finish provides a clean, understated appearance that works well with modern shower tile and bathroom finishes.
Center Outlet
The drain features a center outlet with an approximately 1.97-inch outside diameter. The included flexible PVC coupling and stainless steel hose clamps provide a practical connection between the drain outlet and the plumbing connection.
Easy Maintenance
The removable tile insert provides access to the drainage channel for routine cleaning. The included hair trap helps catch hair and debris before it enters the plumbing system and can be removed for cleaning.
WHAT'S INCLUDED
- 35-inch wall linear drain body with tile insert
- Tile insert for installation of shower floor tile
- Stainless steel hair trap
- Flexible PVC coupling
- 2 stainless steel hose clamps
- Grate key / puller tool

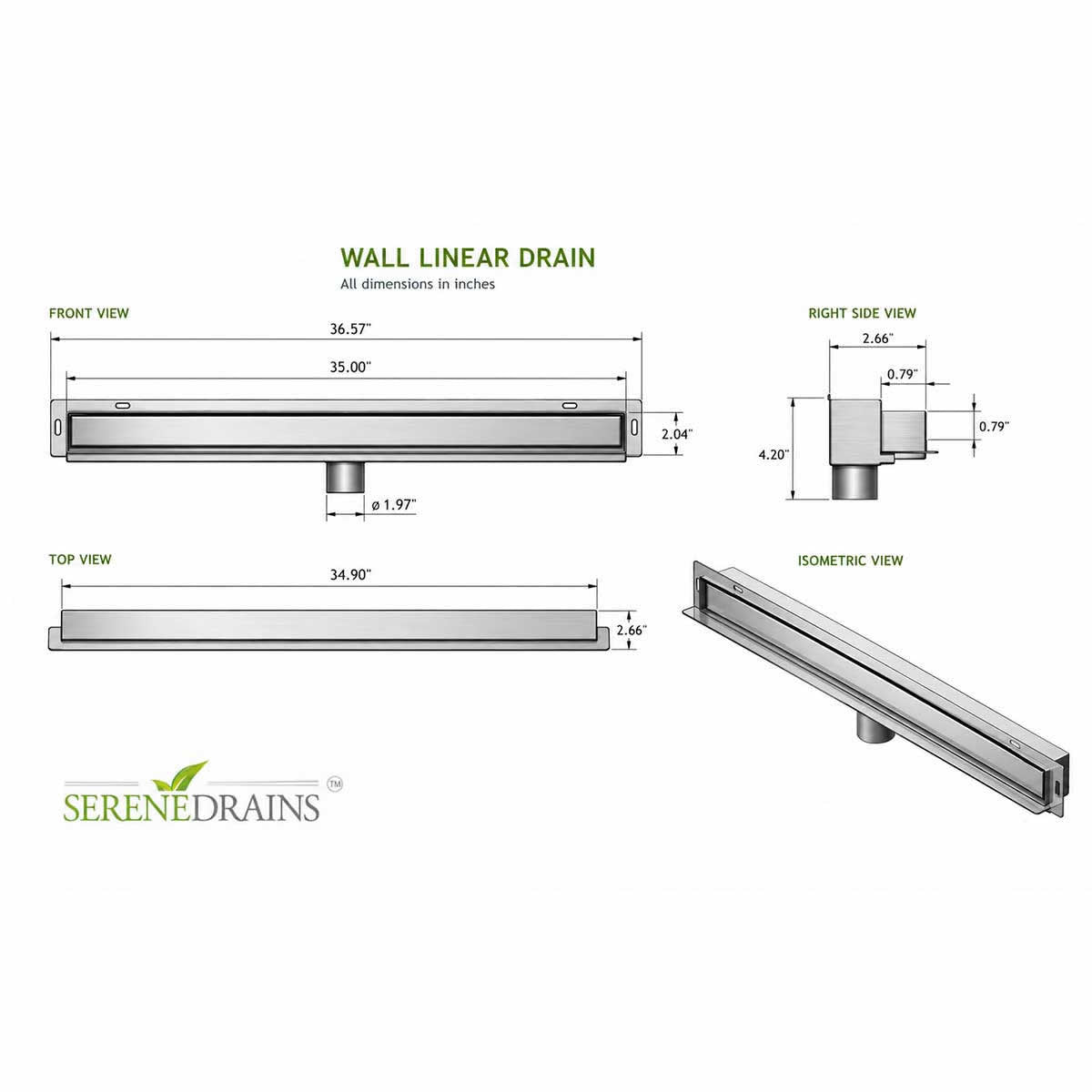

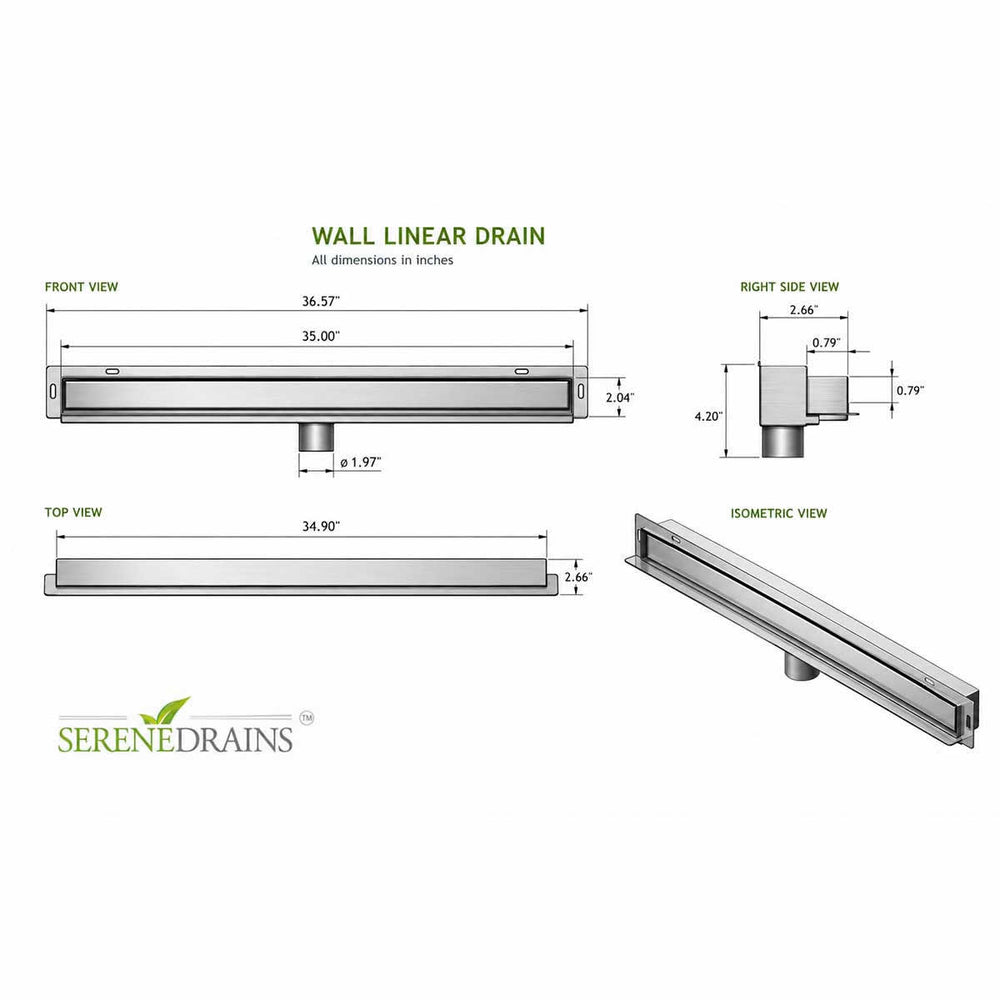

PRODUCT SPECIFICATIONS
- Drain Type: Wall linear shower drain
- Size: 35 inches
- Overall Length: 36.57 inches
- Visible Length: 35.00 inches
- Drain Width: 2.66 inches
- Drain Height: 2.04 inches
- Overall Depth: Approximately 4.20 inches
- Outlet Diameter: 1.97 inches
- Outlet Location: Center
- Installation Type: Wall mount
- Material: 304 stainless steel
- Finish: Brushed stainless steel
- Application: Shower / Bathroom
- Tile Insert: Designed to receive shower floor tile
IMPORTANT INSTALLATION INFORMATION
All dimensions are nominal. Verify the drain dimensions, plumbing connection, wall construction, tile thickness, and installation requirements before beginning installation.
The shower waterproofing system should be installed by the tile professional as part of the complete shower waterproofing installation. Follow the requirements of the selected waterproofing membrane or shower system manufacturer.
The tile insert is designed to receive tile. Tile thickness and the finished tile installation should be considered when preparing the insert so the finished surface is properly aligned with the surrounding shower floor.
HELPFUL RESOURCES
RELATED PRODUCTS
WHY CHOOSE A WALL LINEAR SHOWER DRAIN?
- Designed to install directly along the shower wall
- Tile-insert design creates a more discreet finished appearance
- Allows the shower floor tile to continue into the drain insert
- 304 stainless steel construction
- Brushed finish complements modern bathroom designs
- Center outlet for straightforward plumbing connection
- Includes hair trap for easier maintenance
- Suitable for residential shower and bathroom installations
The Serene Drains 35 Inch Wall Linear Shower Drain is a practical choice when you want the drainage system positioned against the shower wall while maintaining a clean, tile-integrated appearance. The recessed tile insert allows the installer to use the same tile as the shower floor, helping the drain blend naturally into the finished shower.
