Serene Drains 35 Inch Linear Shower Drain - Invisible Slim Design
Description
Description
Serene Drains 35 Inch Linear Shower Drain - Invisible Slim Design
The Serene Drains 35 inch linear shower drain with Invisible Slim design is a premium tile insert linear drain engineered for a fully concealed, seamless shower floor. This system allows your tile to sit flush over the drain, creating a clean and uninterrupted finish.
In stock - Ships same day

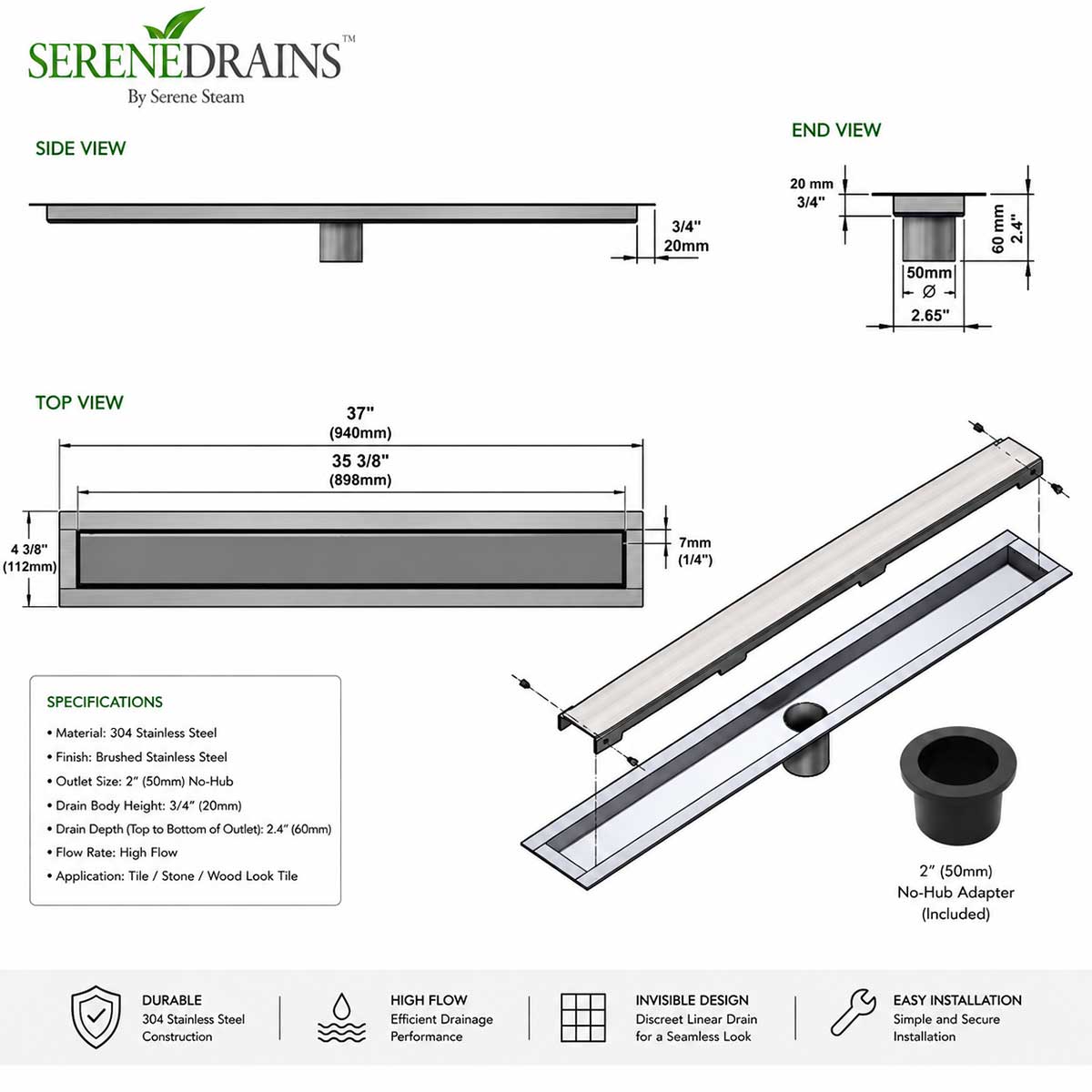

Overall Size 37.01" x 4 3/8" - Net Size 35 3/8" x 2 3/4"
Perfect for modern showers, curbless designs, and wet rooms.
COMPLETE SET includes: Channel Body, Invisible Grate, Drain Rubber Fitting, Drain Puller Key, Waterproofing Membrane Sheet around the drain flange (optional but included)
Optional: ABS, PVC, or Cast Iron CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap
Square shape: Easier tile cuts compared to round drains, saving time and effort
Superior quality at an affordable price
Flange body edge designed for use with all types of waterproofing systems, including hot-mop, liquid membranes, sheet membranes, and vinyl waterproofing
Approximate Dimensions:
Length 16" (400mm), Intake 7.80 sq. in.
Length 24" (600mm), Intake 11.67 sq. in.
Length 30" (762mm), Intake 14.82 sq. in.
Length 35" (900mm), Intake 17.48 sq. in.
Length 39" (1000mm), Intake 19.39 sq. in.
Length 47" (1200mm), Intake 23.20 sq. in.
Length 59" (1500mm), Intake 27.01 sq. in.
Construction
- Pre-sloped channel for efficient drainage
- 2" diameter central vertical outlet
- Flow rate: 6.3 GPM (center) / 9.5 GPM (wall placement)
- Channel width: 2 3/4" (70 mm)
- Fully welded and leak-tested
- Compatible with tiles up to 10mm depth (14mm lip)
- Optional stainless steel flexible coupling
- Optional debris strainer and connectors
- 16 gauge 304 stainless steel construction
- Durable and corrosion-resistant
- Easy maintenance, no special cleaning required
The Serene Drains Invisible Slim linear shower drain is designed for a truly seamless look. The concealed grate system allows your tile to sit directly over the drain, creating a clean, modern finish without visible grates.
Constructed from high-quality 304 stainless steel, it provides long-lasting durability and efficient water flow to prevent standing water and maintain a safe shower environment.
Straight cuts make installation faster and easier compared to traditional drains. Designed to align with standard tile sizes, including glass mosaics, for precise and clean installation.
Superior Quality - Minimal Visual Impact - Designer Finish
