SereneDrains Linear Shower Drain Invisible Slim Design 39

SereneDrains Linear Shower Drain Invisible Slim Design 39

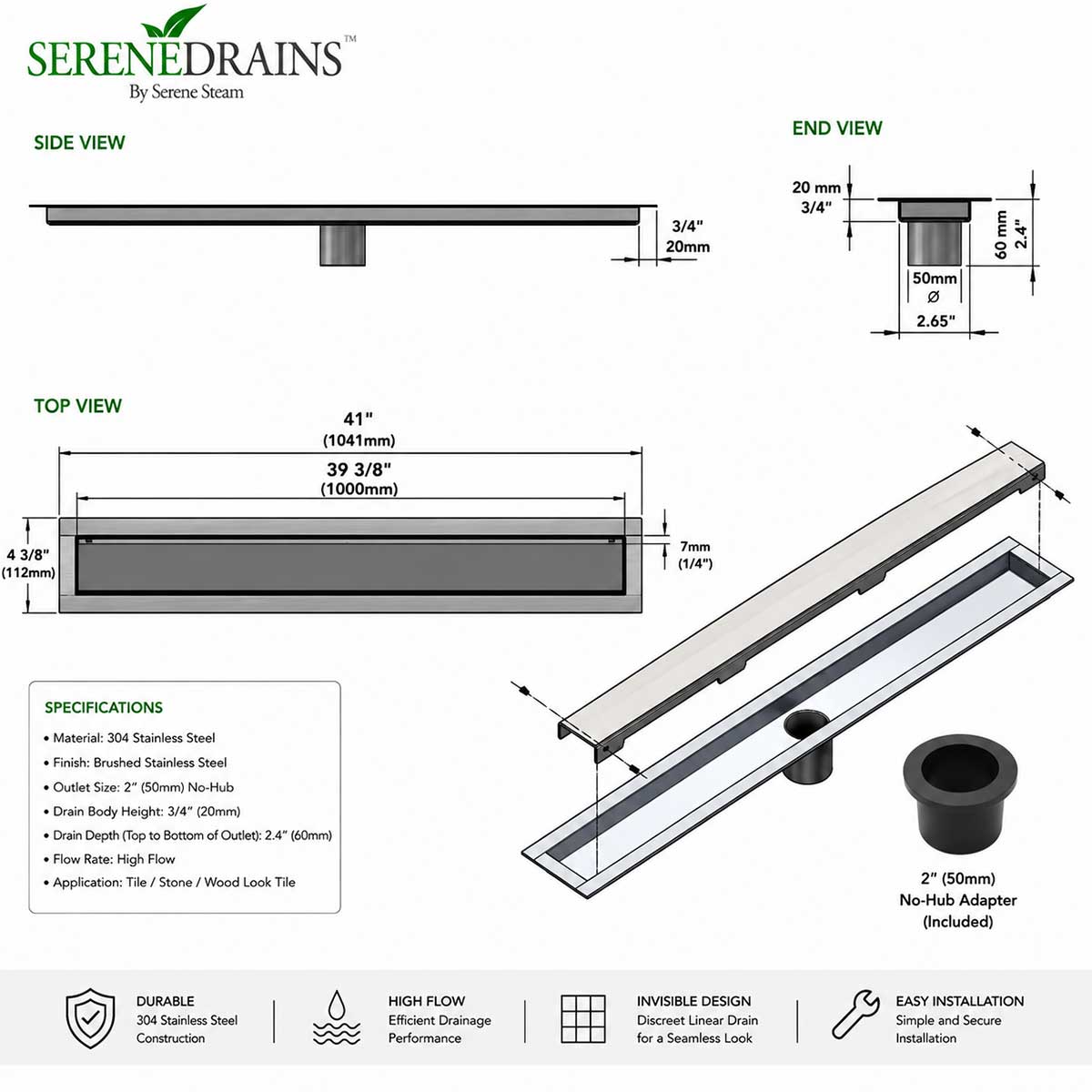

Overall Size 40.95" x 4 3/8" - Net Size 39 3/8" x 2 3/4"

Invisible Drain - concealed drain design that hides beneath the tile for a clean, minimalist finish

COMPLETE SET - Channel Body, Invisible Grate, Drain Rubber Fitting, Drain Puller Key, Waterproofing Membrane Sheet around the drain flange

Optional: ABS, PVC, or Cast Iron CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap

Square shape. It is easier to cut tile for a square drain than to cut, nip, and grind it to fit a round one.

Superior quality at an affordable price.

Flange body edge designed for use with all types of waterproofing, including but not limited to hot-mop, liquid membranes, sheet membranes, and vinyl waterproofing.

Approximate Dimensions:

Length 16" (400mm), Intake 7.80 sq. in.
Length 24" (600mm), Intake 11.67 sq. in.
Length 30" (762mm), Intake 14.82 sq. in.
Length 35.43" (900mm), Intake 17.48 sq. in.
Length 39.37" (1000mm), Intake 19.39 sq. in.
Length 47.25" (1200mm), Intake 23.20 sq. in.
Length 59.05" (1500mm), Intake 27.01 sq. in.

Construction

• Pre-sloped channel
• 2" diameter central vertical outlet
• Flow rate: entrance of shower - 6.3 GPM (0.4 L/s); against the wall - 9.5 GPM (0.6 L/s)
• Channel width: 2 3/4" (70 mm)
• Bodies are fully welded and leak-tested prior to dispatch
• Compatible with tiles up to 10 mm depth (14 mm lip)
• Stainless steel clad flexible coupling connects outlet to pipe system (optional)
• Optional accessories include plumbing connectors and debris strainer
• Stainless steel 16-gauge 304 grate
• Superior quality
• Most durable finishes available
• Easy to maintain - no special cleaning required

The SereneDrains Invisible Linear Shower Drain is a modern, seamless solution for contemporary bathrooms. Designed to be discreet and virtually invisible, it integrates into your shower floor for a clean, uninterrupted appearance.

Crafted from durable 304 stainless steel, it delivers long-lasting performance and efficient water drainage to prevent pooling, helping maintain a safe and dry shower environment.

This hidden design eliminates the need for traditional drain covers, offering a sleek, minimalist look that enhances any bathroom style.

Simple, straight cuts save time during installation. SereneDrains are sized to match standard 1/2", 1", 2", and 4" tile. When cutting is needed, only straight saw cuts are required, no grinding to match curves.

Superior Quality - Heavy Drain Grate - Minimal Grout Rim - Designer Finishes

In Stock - Ships Same Day

Technical & Installation Resources

Installation Instructions | 304 vs 201 Grade Stainless Steel | Product Line Video
