Raimondi 45 Degree Milling Bevel for Bulldog Machine - BDW45
Description
Description

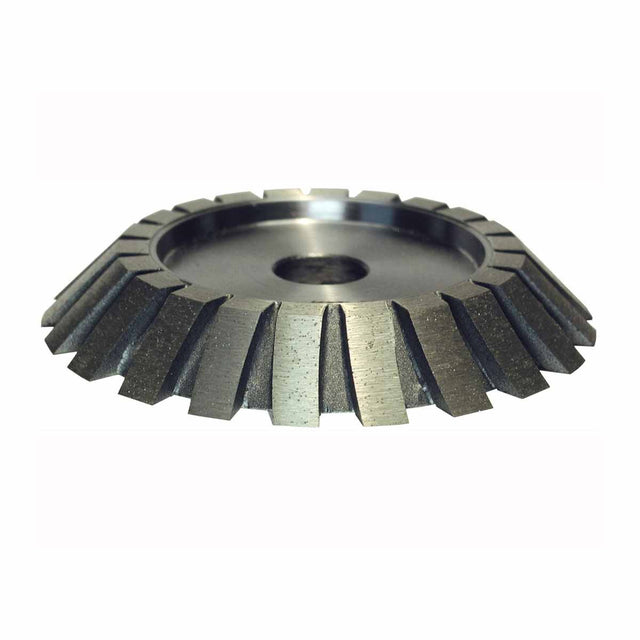

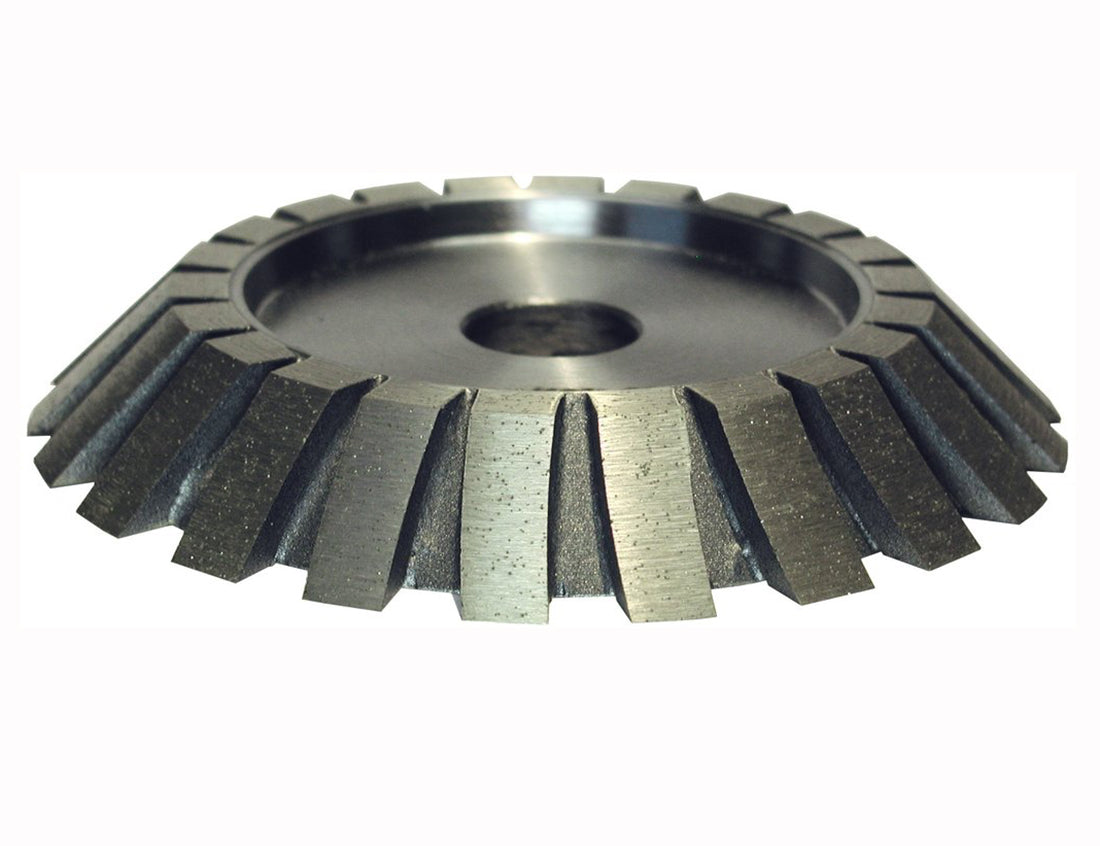

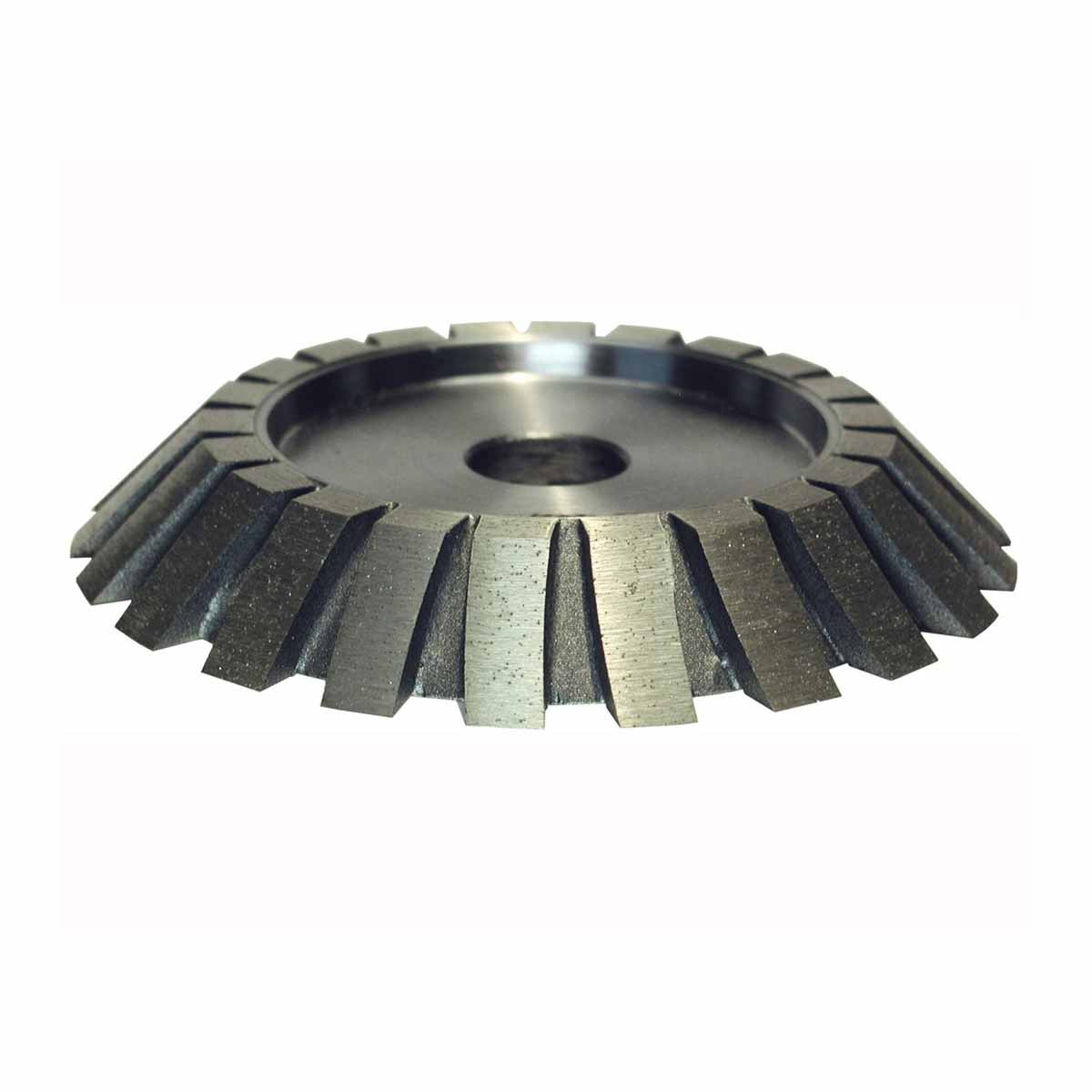

Raimondi 45° Milling Bevel Wheel for Bulldog Machines - BDW45
The Raimondi BDW45 Milling Bevel Wheel is designed for the first stage of 45° bevel shaping on compatible Raimondi Bulldog machines and back-finishers. This wheel performs the initial milling stage before the rough-finish wheel refines the bevel in preparation for polishing.
Featuring a 5/8" (15 mm) bevel and a matte 80-grit abrasive surface, the BDW45 is the Step 1 wheel in the two-wheel 45° beveling process.
Product Specifications
- Brand: Raimondi
- Model: BDW45
- Application: 45° bevel shaping
- Process stage: Step 1 of 2
- Bevel size: 5/8" (15 mm)
- Wheel diameter: 4 3/4" (120 mm)
- Arbor size: 25/32" (20 mm)
- Abrasive: Matte 80 grit
- Material: Hard-material resin, as specified in the supplied product information
Two-Step 45° Beveling Process
- Step 1 - Milling Wheel: The BDW45 performs the initial shaping of the 45° bevel.
- Step 2 - Rough-Finish Wheel: The BDW45RF refines the bevel and prepares the material for polishing. This wheel is not included with this listing.
Both wheels are designed for the 5/8" (15 mm) bevel profile. The wheels are tested and balanced to provide profiling results with compatible Raimondi Bulldog machines.
Compatible Machines
- Raimondi Bulldog BD1WD
- Raimondi Bulldog BD2WD
- Raimondi back-finisher BDSABF
- Raimondi back-finisher BDCBF
